Yongnuo TOYUG YN-622C - Whats Inside the Cases

64 pages

To Next Page

To Previous Page

The Other YN-622C User Guide v.4.09

11/12/2014

Part II – 622C Transceivers Page 60 of 64

What’s Inside the 622C Cases?

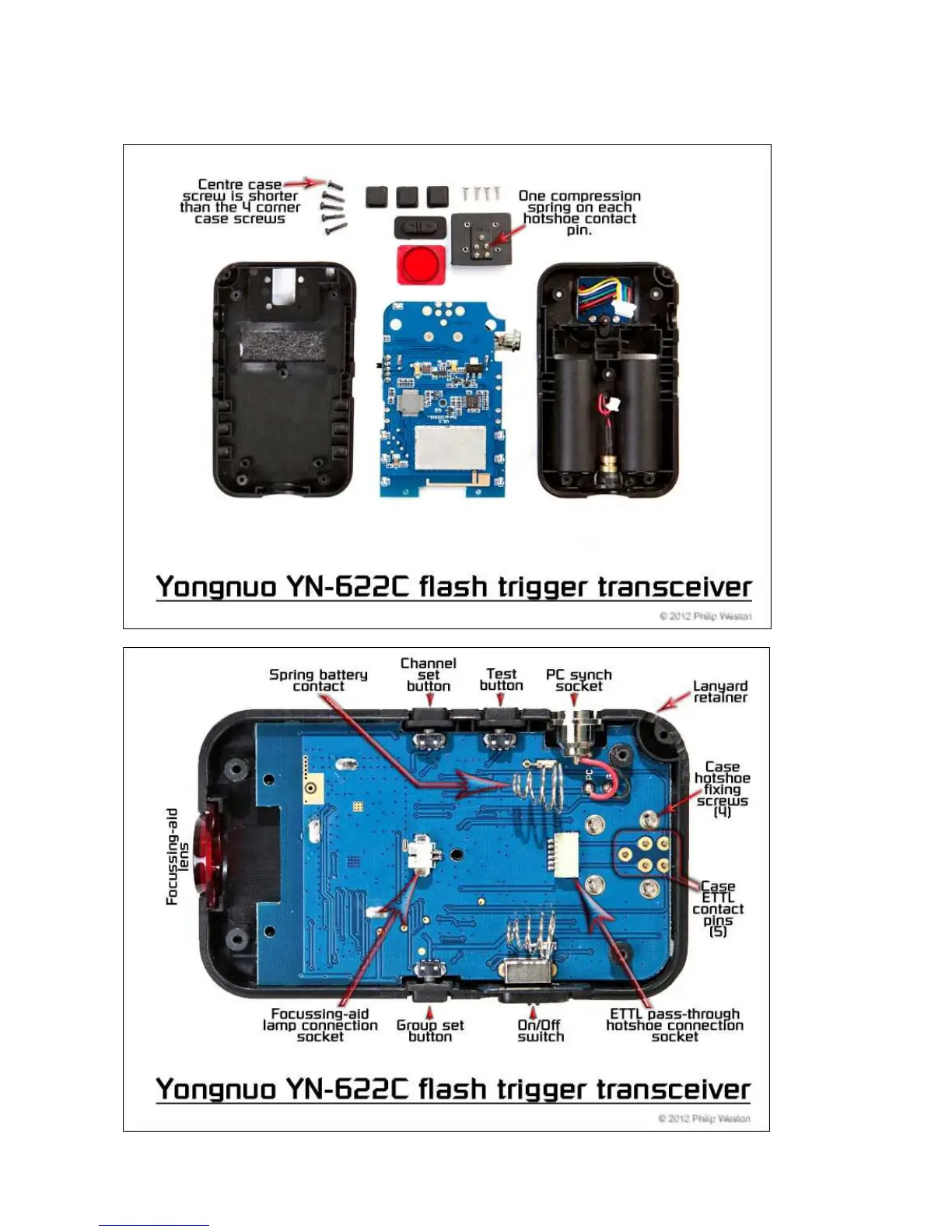

Many thanks to Phil Weston for providing the following excellent pics with notations:
