The Other YN-622C User Guide v.4.09
11/12/2014
Part II – 622C Transceivers Page 56 of 64
Numbering the Units
Record the serial number and date of purchase. It is found on the printed label inside the battery
case (622C) or stamped into the bar between the batteries. I use the end digits on a label attached
to the end to identify the unit – it helps to keep track of problems
Wireless Mode Setting
For the 622C transmitter, keep this setting at Enabled, and disable it only when 2
nd
Curtain sync is
required. (5D II and IIII, and possibly others, change the sync timing if Wireless is Disabled.) The
C-TX controls the setting automatically.
Umbrella / Light Stand Mount
I recommend a lie-flat bracket for safety, stability and on-axis light beam, especially for a softbox or
umbrella. To secure the flash, use a Frio Cold Shoe, an American product. (See the blue mounting
clip in the images below.)

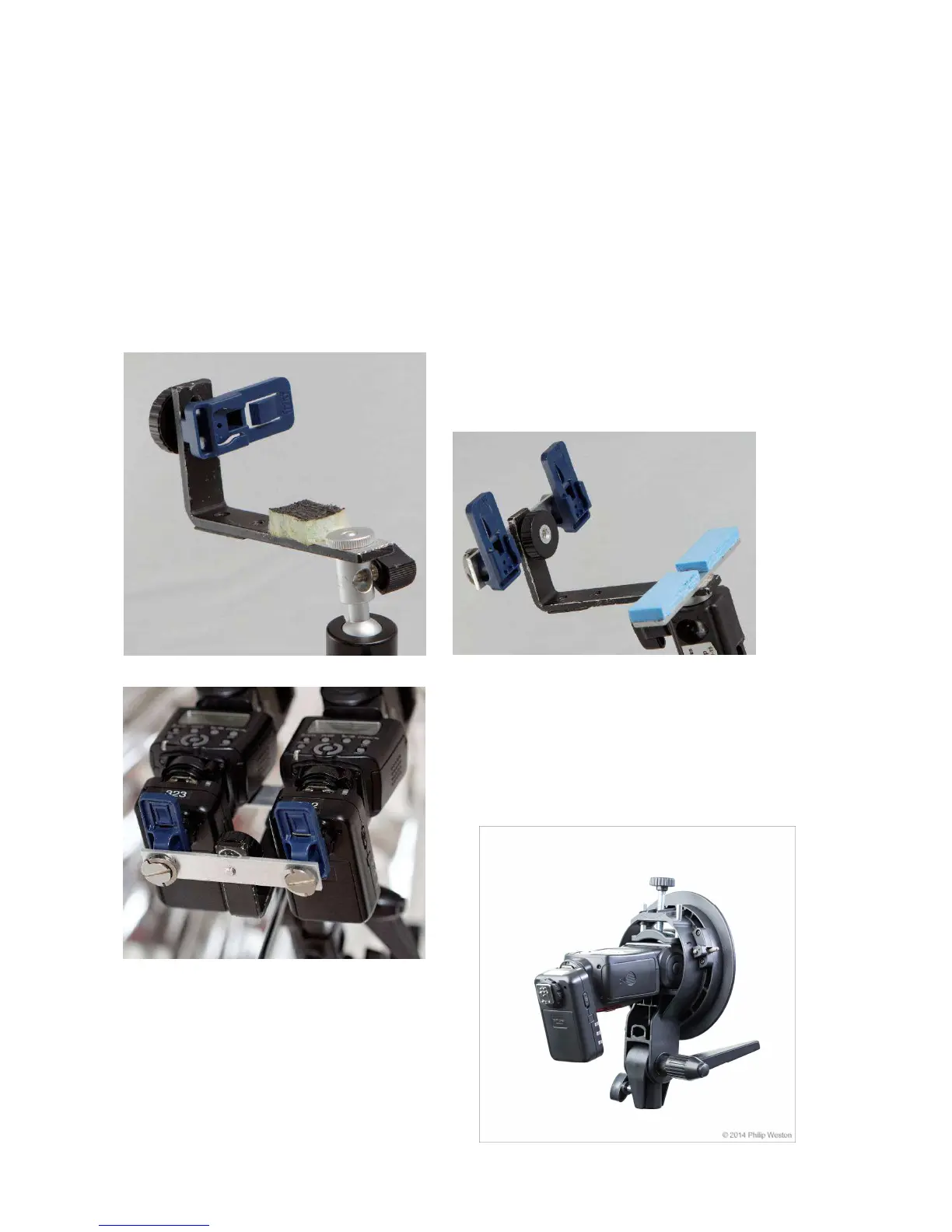

A home-made mount for one or two flashes using a
cheap ball swivel, some aluminium bar and a Frio cold
shoe. For better security, add a Velcro strap around
the head.
A two-flash adaptation of the single bracket.
It has two cross-bars added and uses a standard
umbrella swivel.
An example of a commercial mount is the
Godox swivel bracket with Bowens S mount,
using a flash-head clamp.
