The Other YN-622C User Guide v.4.09
11/12/2014
Part II – 622C Transceivers Page 48 of 64
CANON EXTERNAL FLASH MENUS
The camera’s External Flash menus are the main interface for using the 622Cs. The menus
change interactively as selections are made. The 622C controls or disables some menu items.
• The 2007 style menus are described first.
• The 2012 style menus with the new Quick Flash Control panel (6D, 5D III, 650D/T4i and
other new models) are then described.
• Select the optical pulse transmission menu on RT-capable cameras.
Confirmation of Setting
When a change to the camera menu is successfully applied to a remote flash, the AF-Assist Beam
of its 622C receiver will flash twice when the [Set] button is pressed, to indicate that the change
was successful.
• Press [SET] after making a menu value change. Don’t have to redo the setting!
• The confirmation light will be emitted only if the remote 622C has C.Fn 8 enabled.
Starting menu item
• Flash Control (or External Speedlite Control)
First menu
• Flash Firing Enable or disable the 622C transmitter.
• External flash func. setting 622C is identified as an external flash.
• External flash C.Fn setting FEB auto cancel – locked Enabled.
FEB sequence – locked.
AF-assist beam firing – Enabled or Disabled.
• Clear ext. flash C.Fn set.

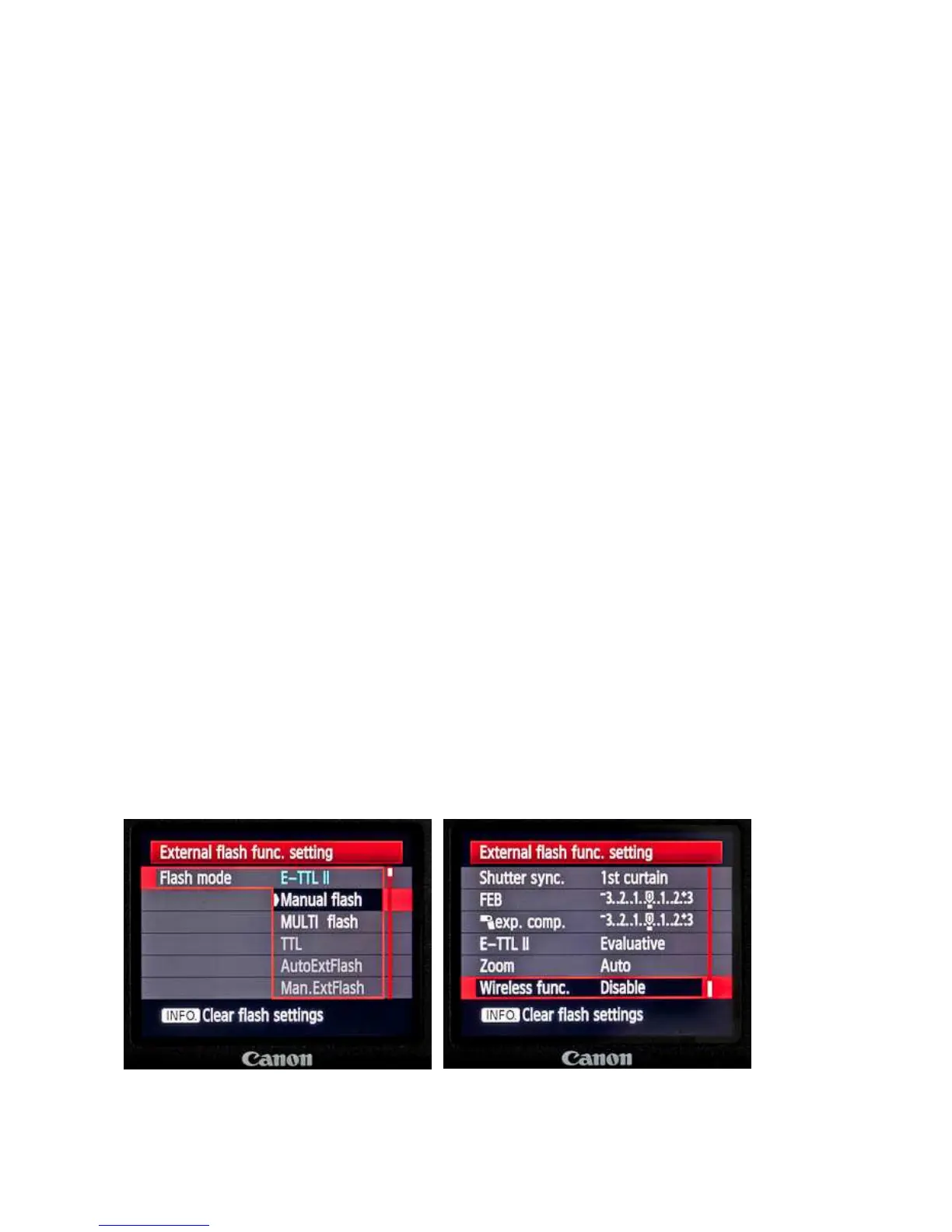

External flash function menu
• Flash mode E-TTL II, Manual, MULTI. (TTL, Auto external, Manual external disabled.)
• Shutter sync 1
st
Curtain, 2
nd
Curtain (if Wireless Disabled), Hi-speed
• FEB Max. -3 to 0 to +3 f/stops where the centre point (0) is set by the FEC setting.
• FEC Flash FEC -2 to +2 (later cameras -3 to +3). Interacts with on-flash settings.
• E-TTL II Evaluative, Average
• Zoom Auto, 24 28 35 50 70 80 105mm (later cameras 200mm)
• Wireless Enable, Disable
• [INFO] Clear Speedlite settings.
