The Other YN-622C User Guide v.4.09
11/12/2014
Part III – C-TX Controller Page 46 of 64
Enable Proxy Mode [Fn] 06 Proxy

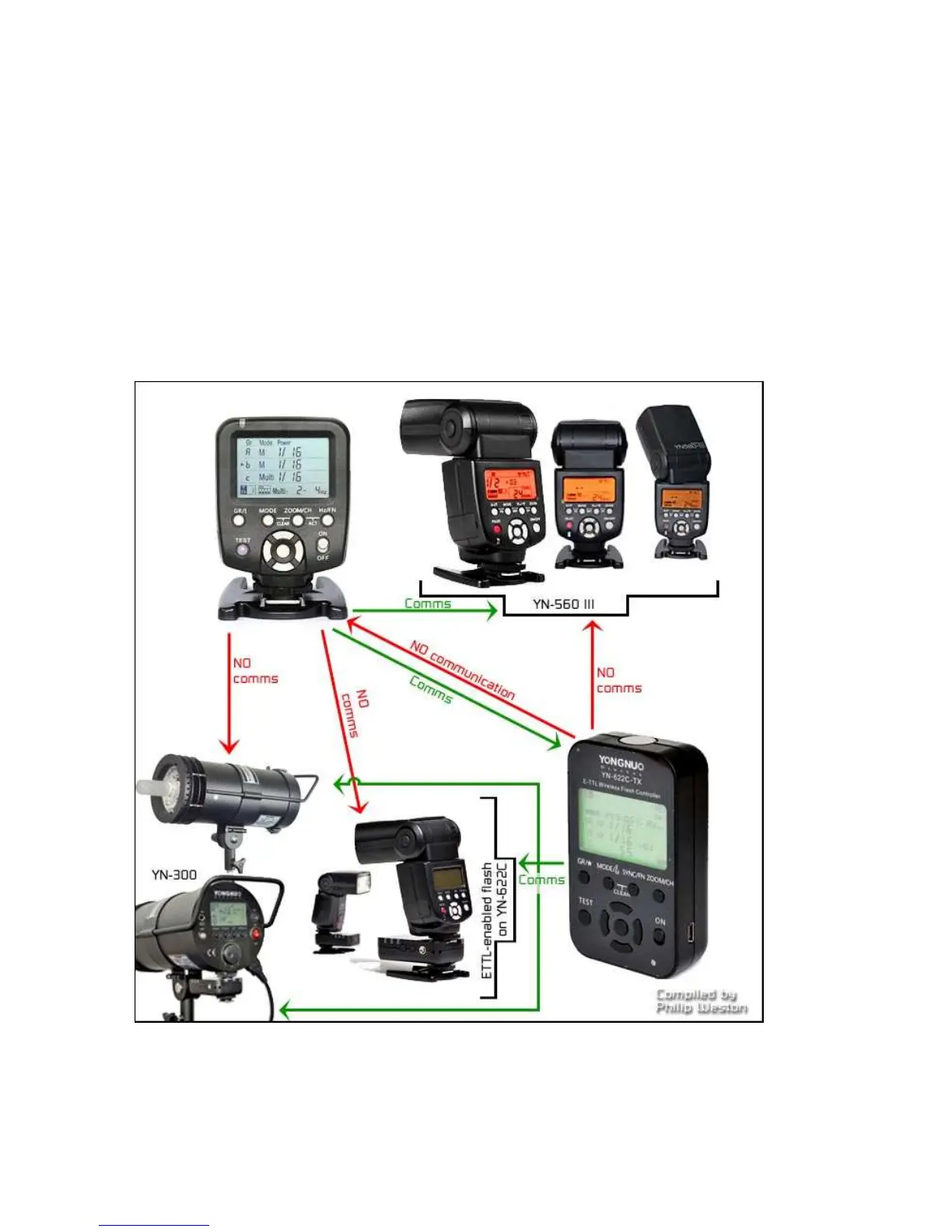

Proxy mode allows the C-TX to be slaved to a YN560-TX Manual-only Controller. The C-TX then
forwards the commands to flashes on remote 622Cs.
• The YN560-TX is mounted on the camera, and controls remote YN560 III Manual-only
flashes
• A stand-alone C-TX can receive those commands and forward them to remote 622Cs.
• Proxy mode is available in a C-TX with firmware v.1.02 or later.
• The channel on the YN560-TX, YN622C-TX and YN622C remotes must be the same.
• The flashes on the 622Cs must be in Manual mode.
• Long press SYNC/FN key to enter the custom function and go to FN.06 (Up/Down key).
• Change the value to ON (Left/Right.
• Place the YN622C-TX anywhere within the transmission range of YN560-TX.
• Use YN560-TX to control Manual output/zoom of the ettl flashes on YN-622C remotes.
