• When component soldering is complete, the module's front panel is the

non-copper side of the board. For this reason, there is a decal sticker that

must be attached to the side without copper just before soldering the

connectors and any other through-hole element onto the board. You should

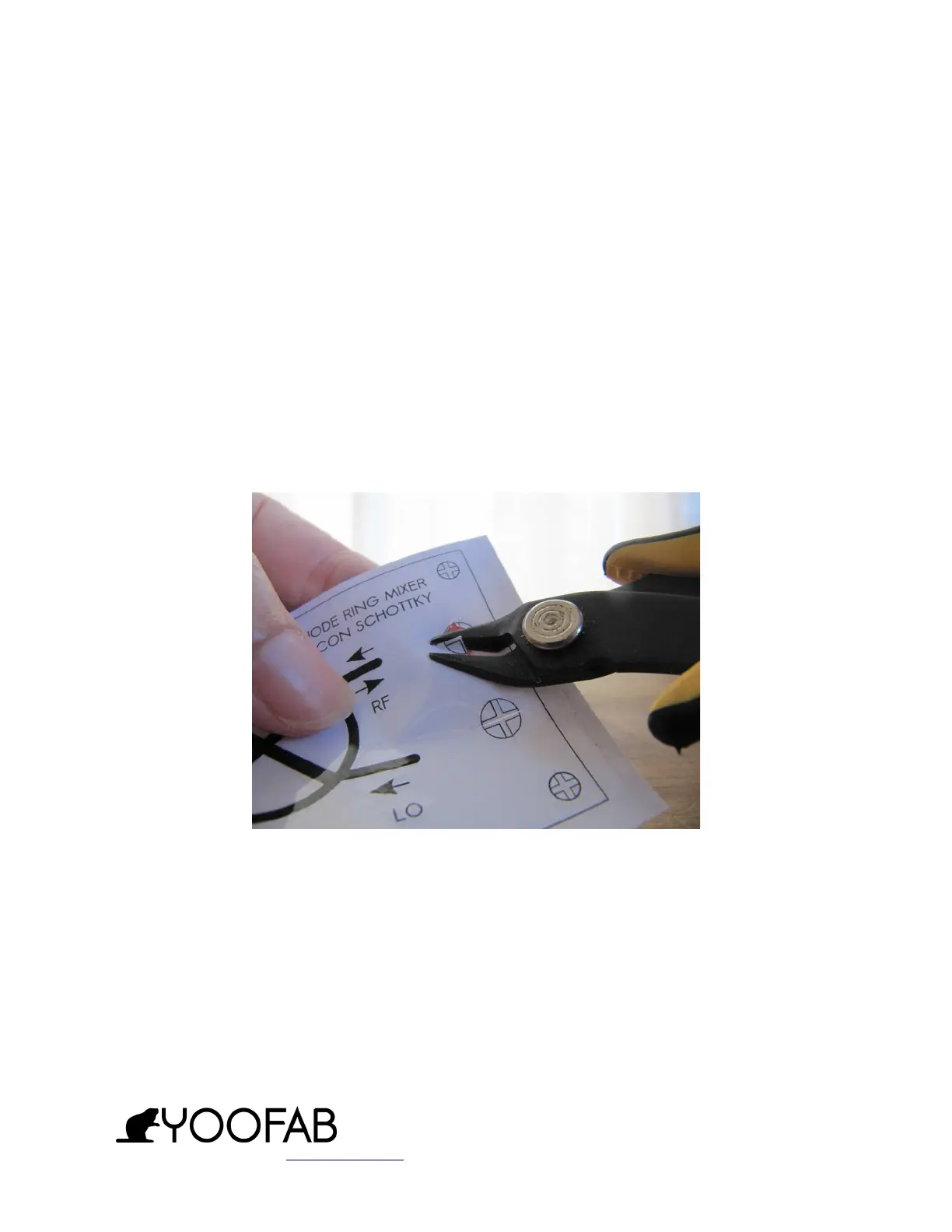

cut some crosses using a knife in the indicated locations. For ease of assembly,

cut all excess pieces as shown below with a side cutter. Carefully affix the decal

to the non-copper side of the PCB. Take care to align the drilled holes with those

of the decal sticker. Proceed to place the connectors and other through-hole

elements through both the board and decal and finally proceed with the

assembly.
