YooFab RFLEGO - Final Assembly and Connections; Final Wire Terminations

Step 11

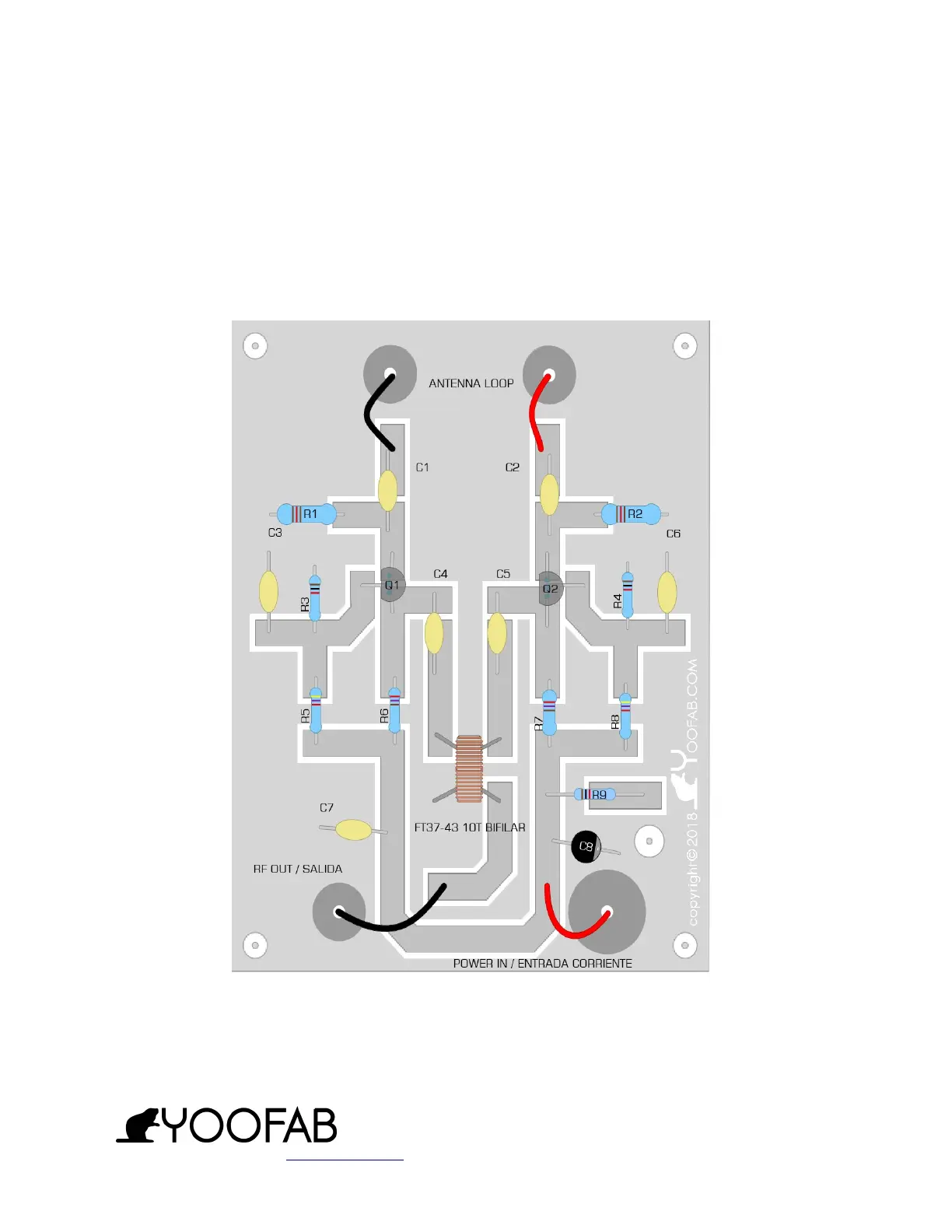

• Solder the terminations as shown below.
• As mentioned above, the BANANA posts may be soldered to the tracks directly
using the tags, or wire may be used instead.
