Step 3
• Solder R6 and
R7 into
position
• These are both
270Ω
resistors.

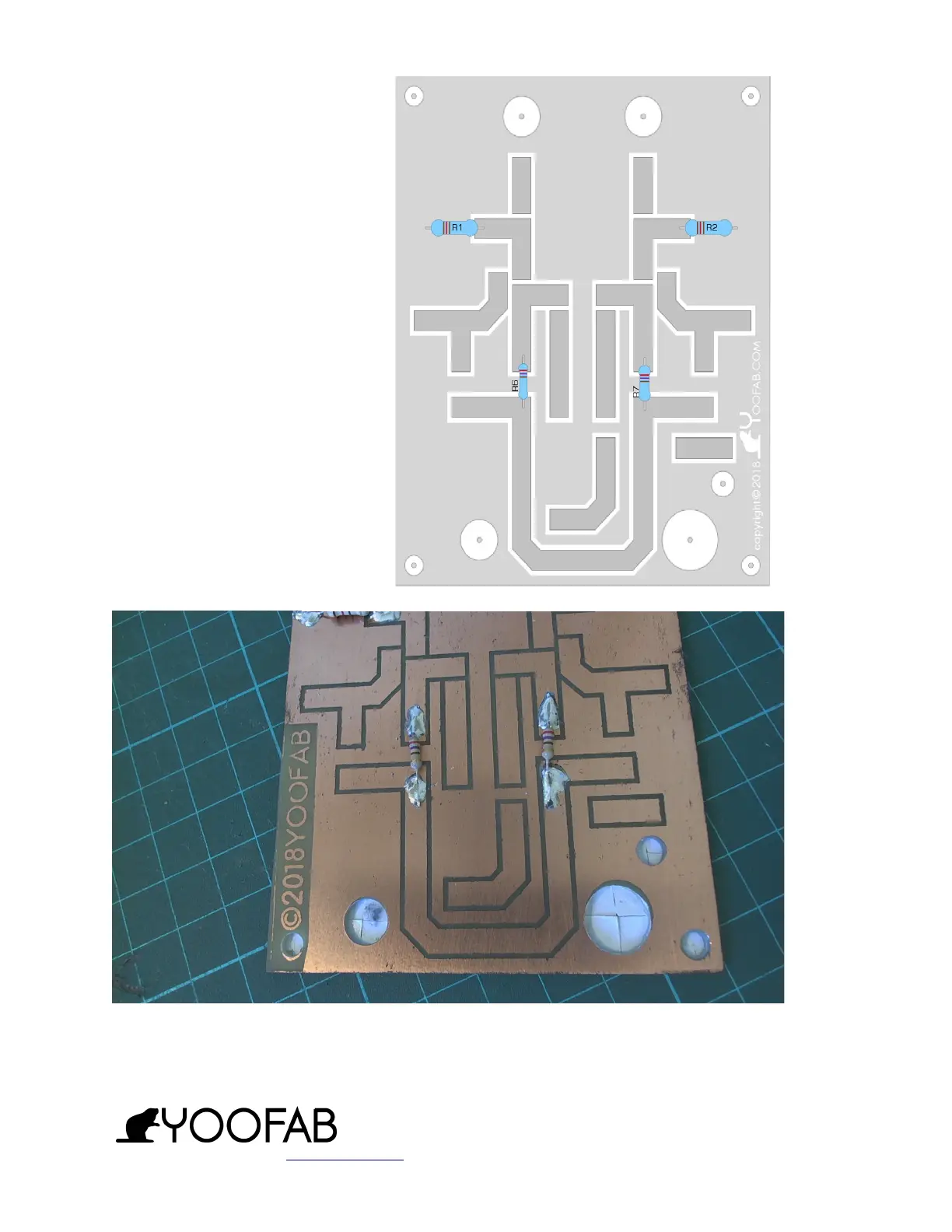

Photograph of Step 3 showing both 270Ω resistors.
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 23 of 66
