Printed Circuit Board
Step 1

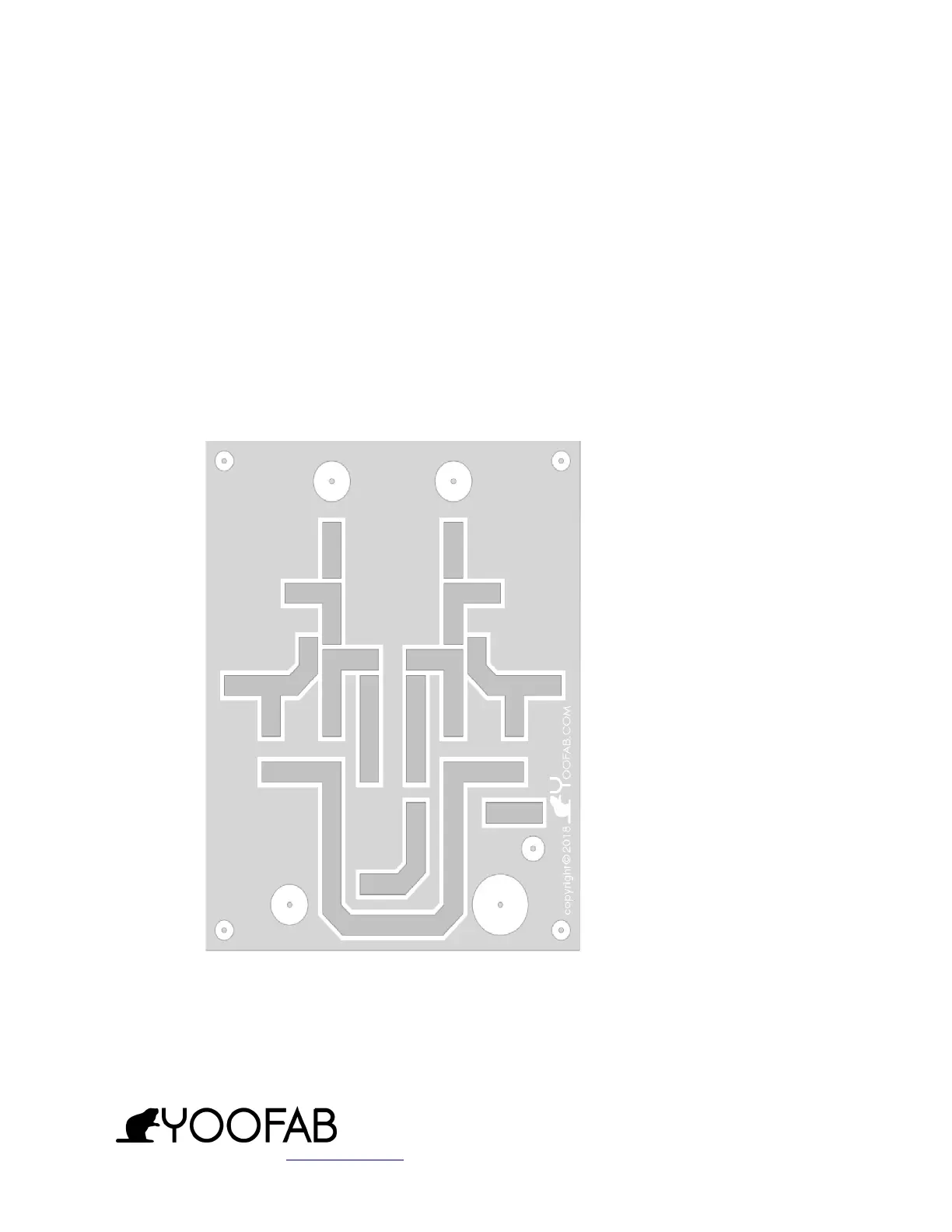

Inspect the Printed Circuit Board. Make sure that the copper side looks like the
illustration below.
• Note that the illustration shows a difference between the tracks (dark grey) and
the ground plane (light grey). In reality, there should be no difference in the
appearance of the copper tracks and that of the ground plane.
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 21 of 66
