Capacitors C1, C2, C3, C4, C5, C6, C7
Step 6

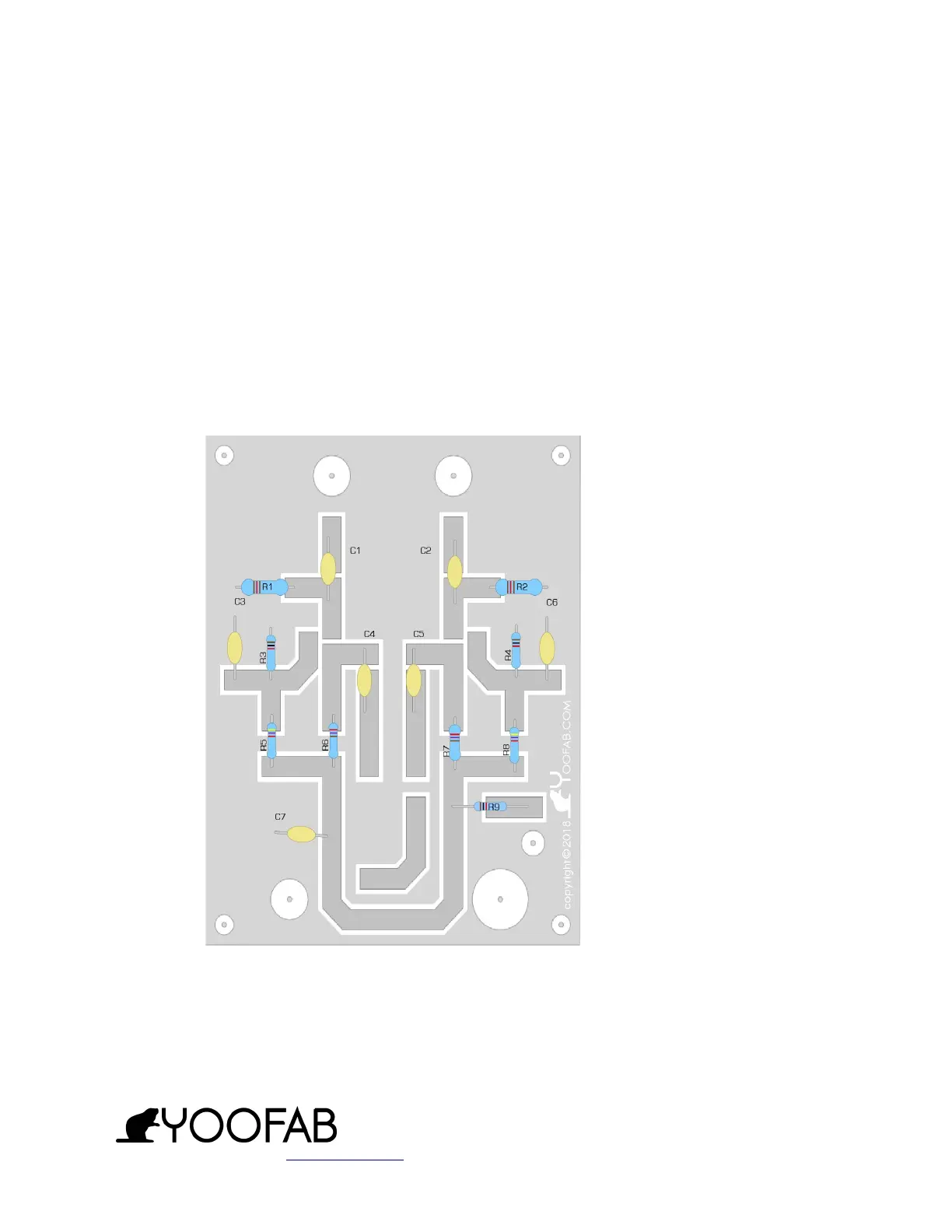

• Carefully solder C1, C2, C3, C4, C5, C6, C7 into position.
• These are all 100nF ceramic capacitors.
• The component leads should be bent away from the capacitor body until an L
shape is made (with respect to the component body)
