Resistors
R1 to R9
Step 2
Solder R1 and R2
into position
These are both
120Ω resistors

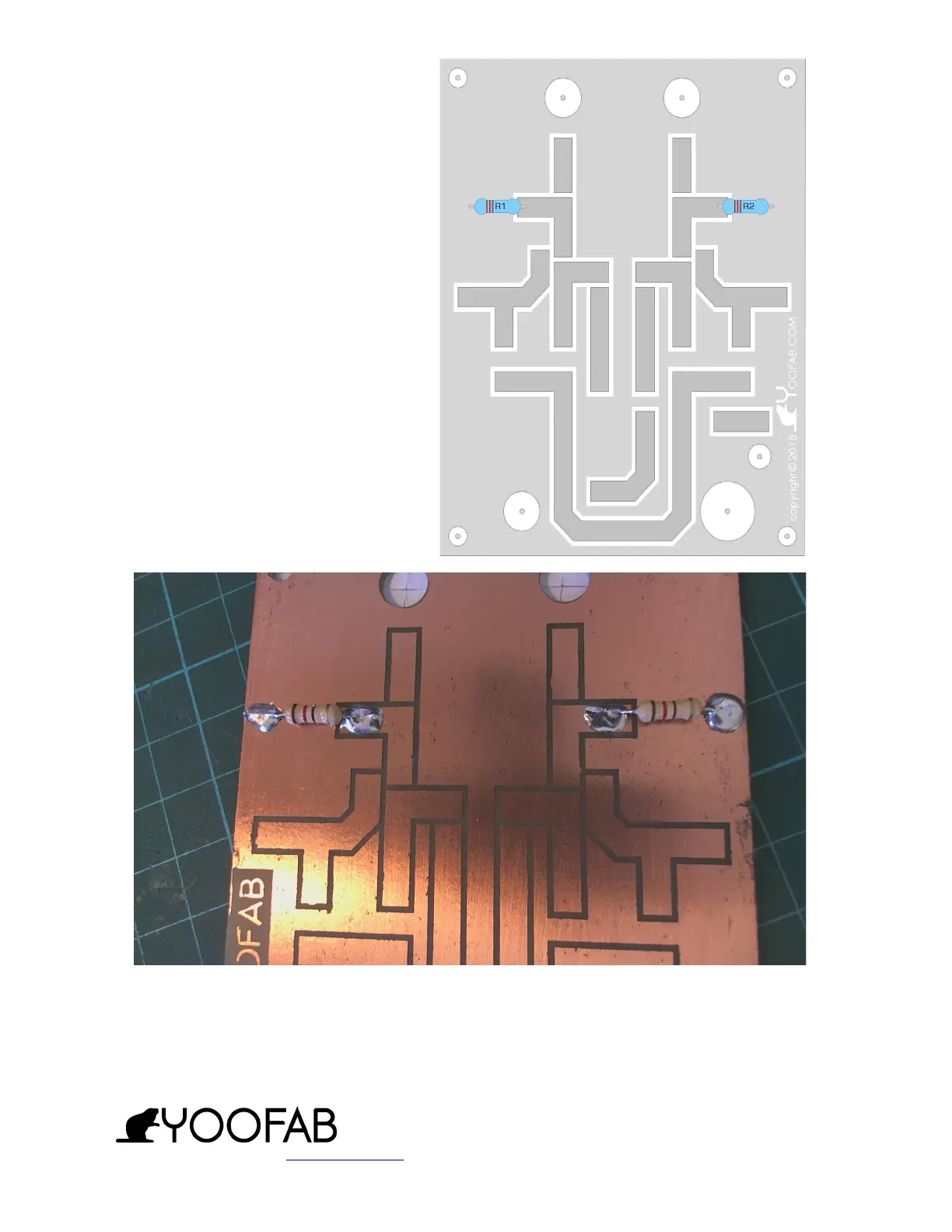

Photograph of Step 2 showing both 120Ω resistors
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 22 of 66
