Toroid winding step 22

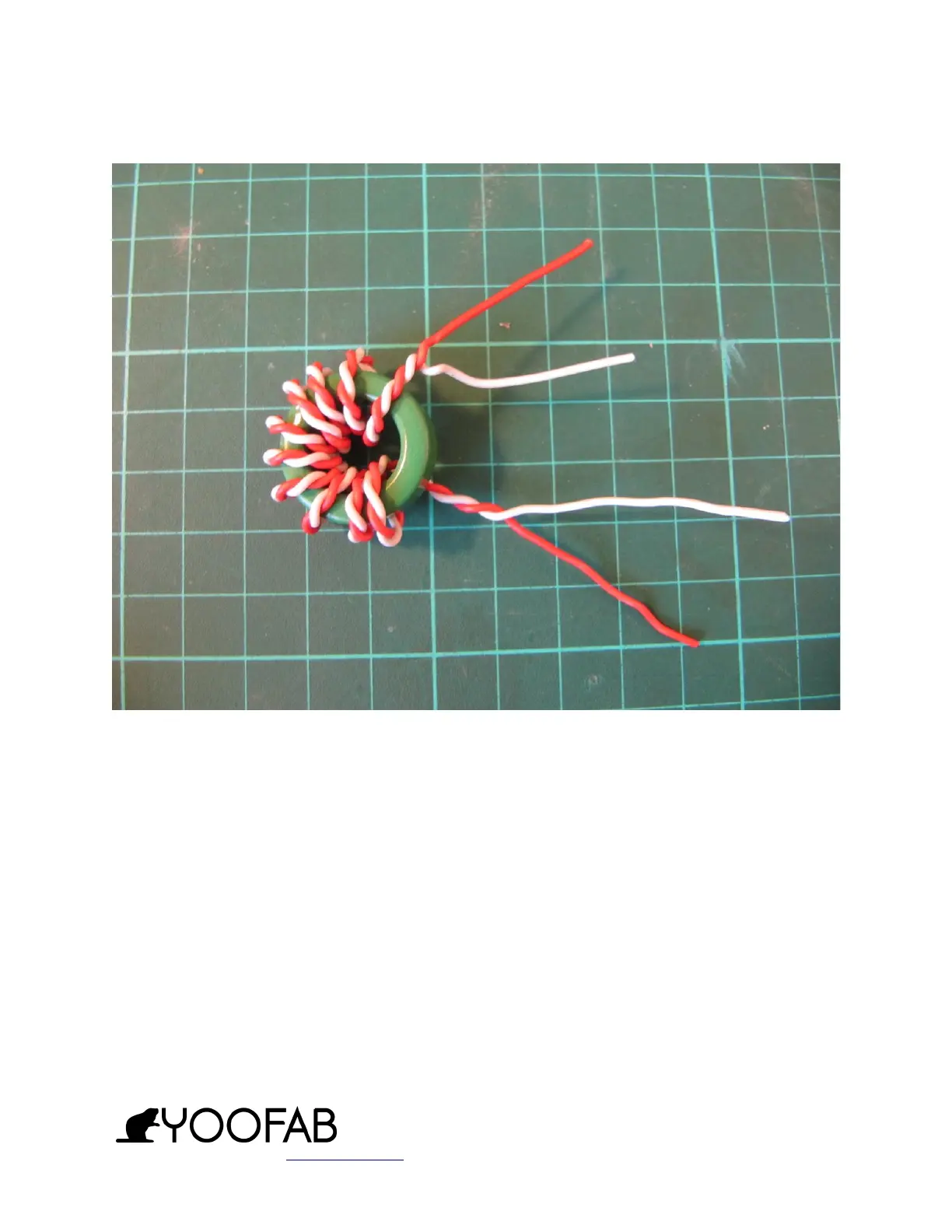

These windings should be distributed around the toroid so it looks like the
picture above.
