Step 12

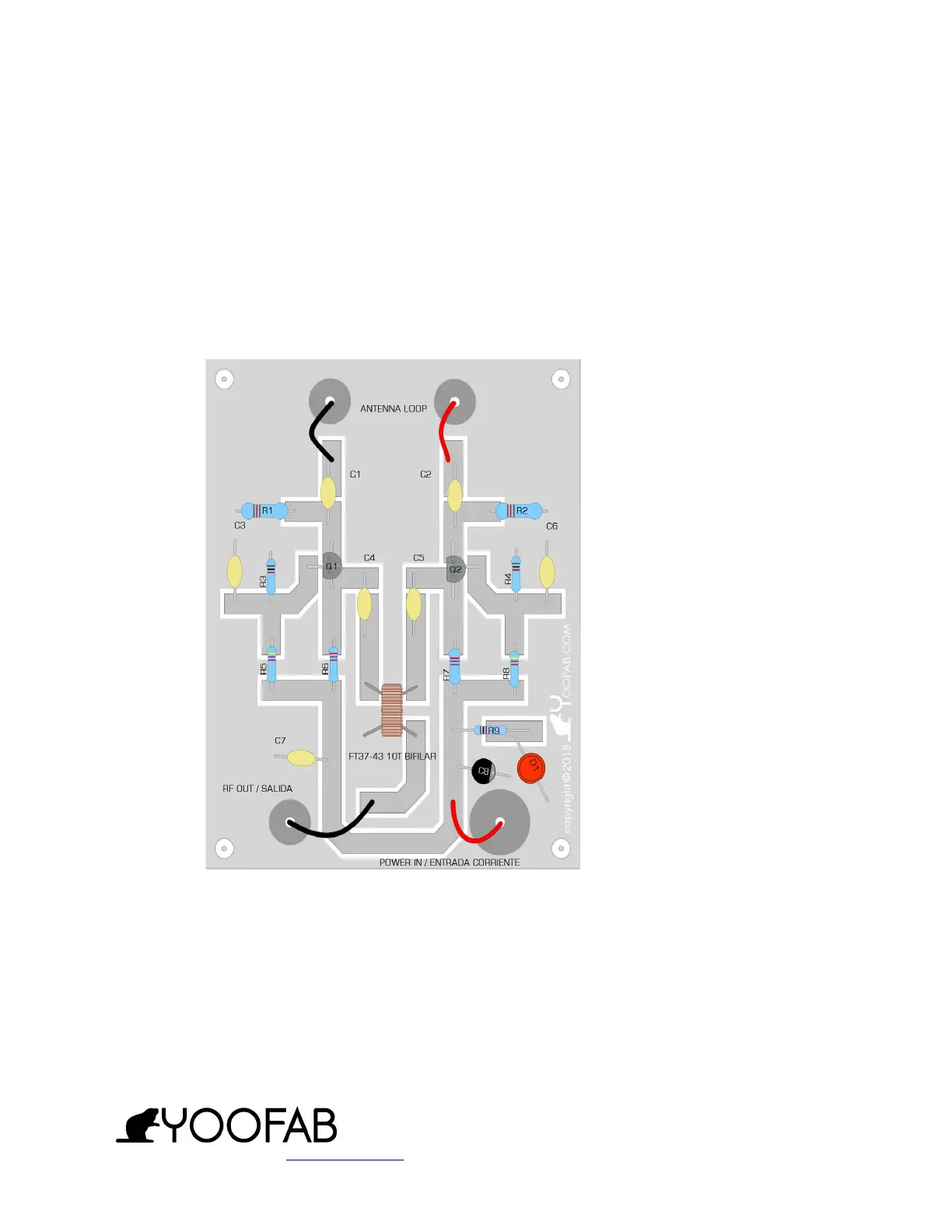

• Fit the 5mm LED through the PCB
• Solder the leads of the LED so that Cathode (longer lead) goes to ground and
the Anode goes to the track shown in the illustration.
• The LED should not require anything other than solder to keep it in position.
ASSEMBLY INSTRUCTIONS
