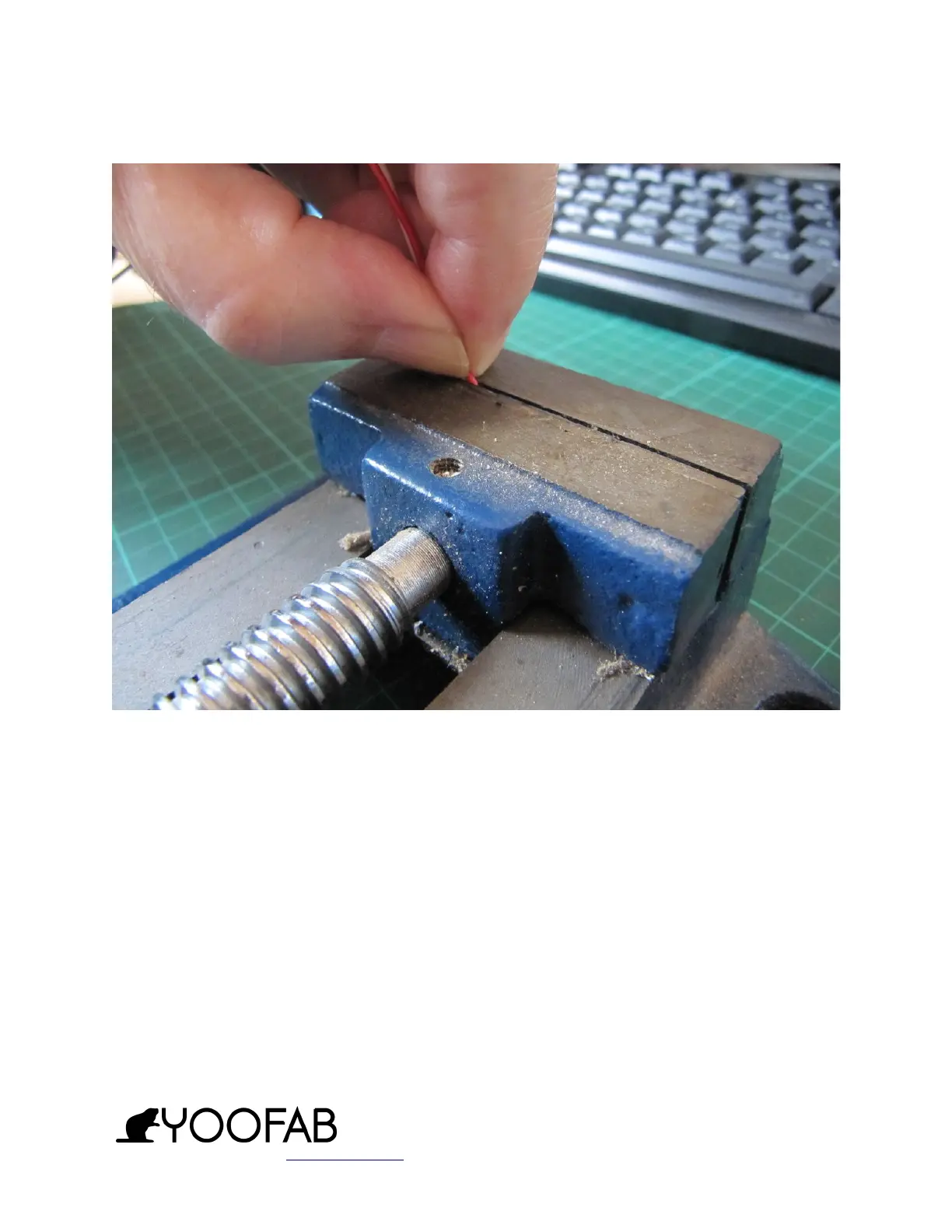

Toroid winding step 3
The pig-tails at this end are clamped, such that these will not be twisted together.
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 34 of 66
