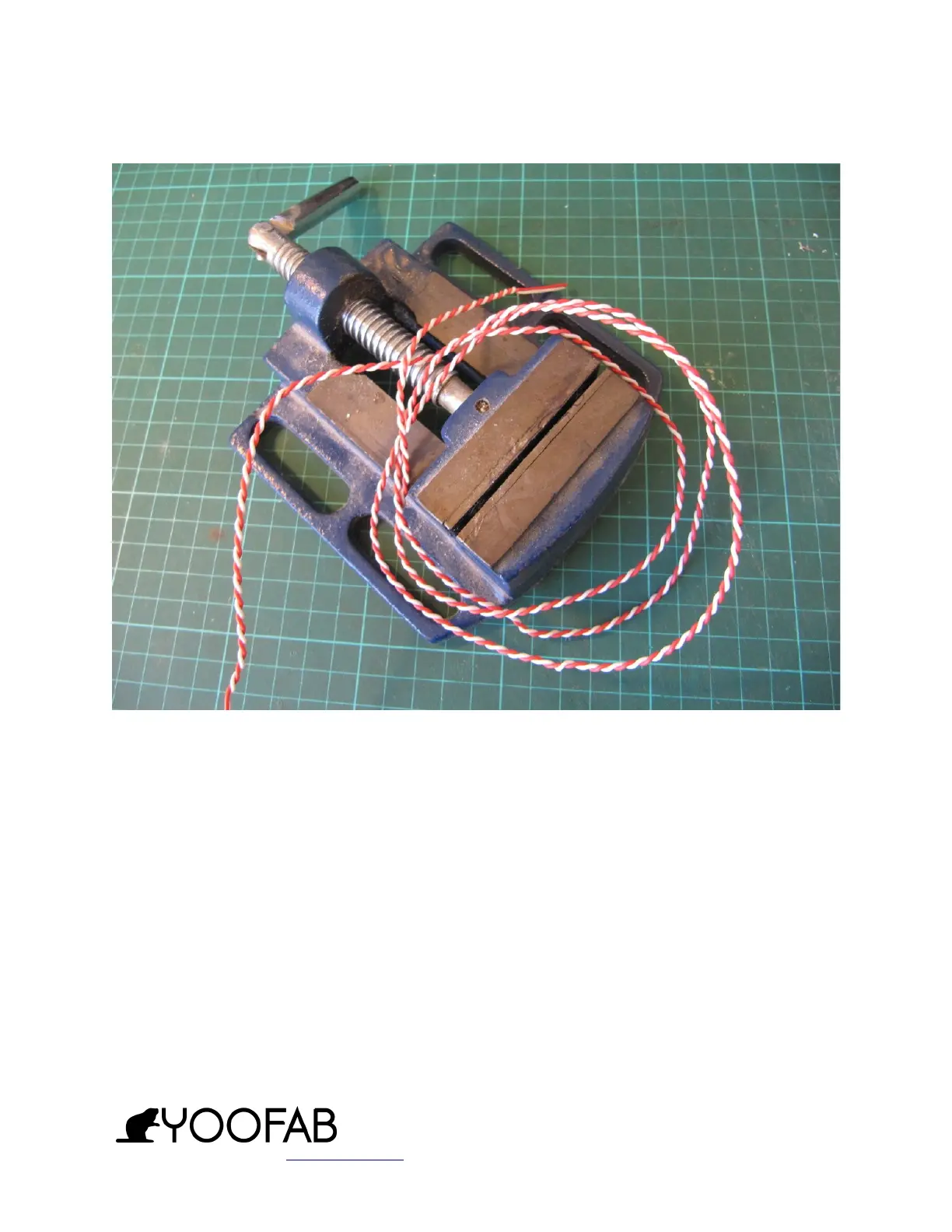

Toroid winding step 9
Finally, we may detach the twisted wires from the clamp and the hand drill.
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 40 of 66
