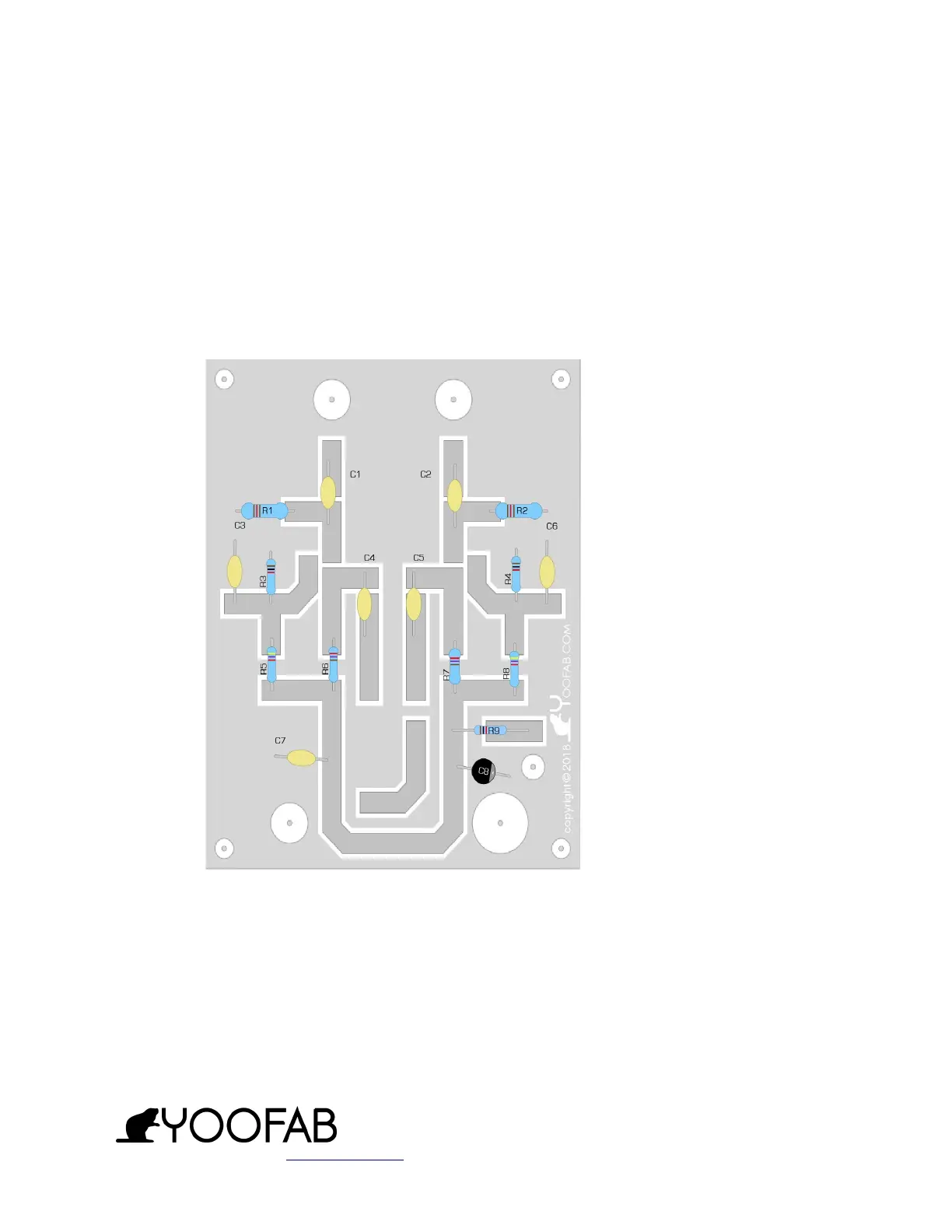

Step 7
• Solder C8 into position
• C8 is an electrolytic capacitor of 100uF or greater that is rated at 25 volts.
• Be careful to allow room for the other components and hardware in this area of
the printed circuit board.
ASSEMBLY INSTRUCTIONS
RFLEGO Active Antenna Receiving Loop
Copyright © 2018 - 2019 www.yoofab.com G.D.COWNE - MØOOZ page 27 of 66
