YooFab Antenna Loop Differential pair amplifier

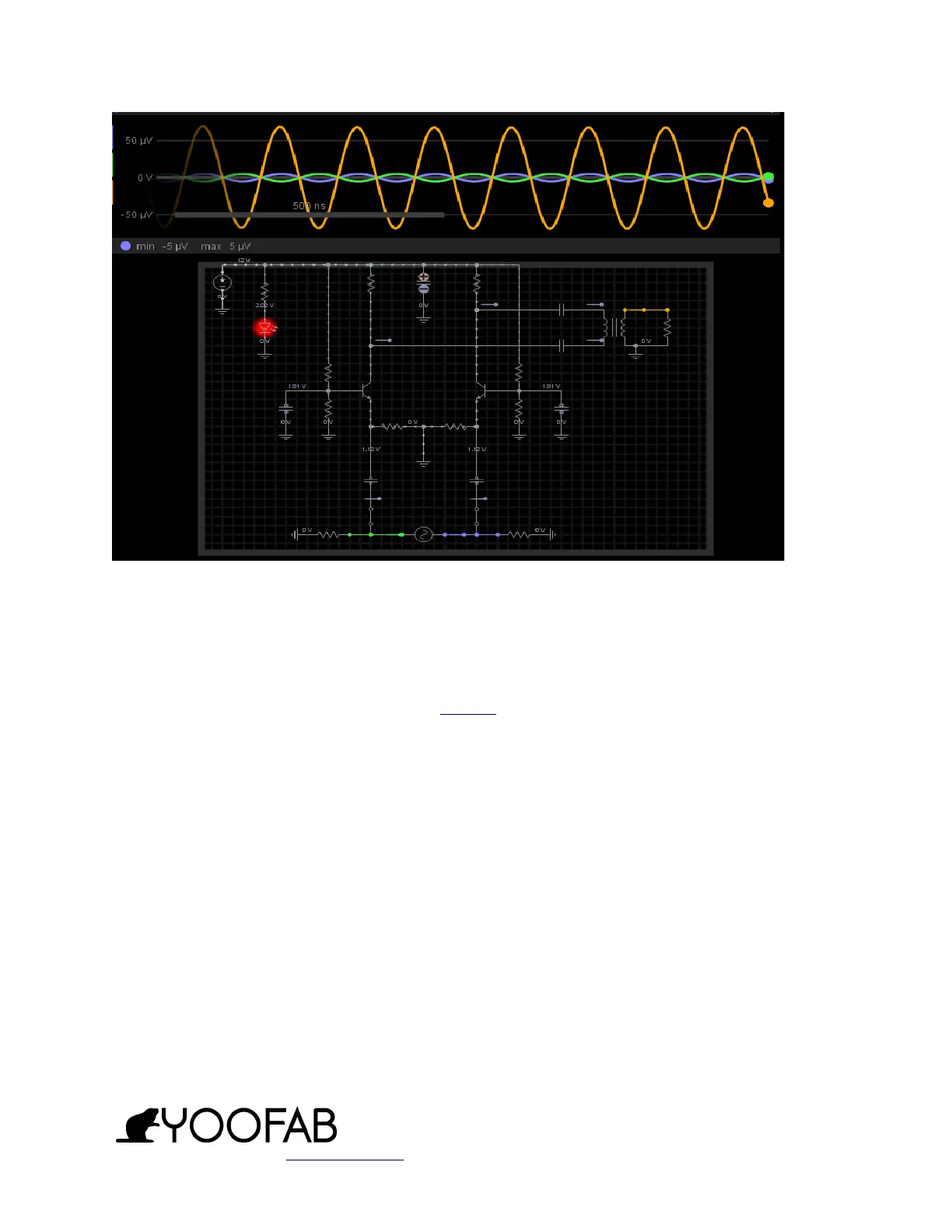

Notes On Simulation:

Please note that in the above animated simulation, there are two 10 MΩ resistors that

go to ground. These are needed by the SPICE simulation and are not needed in reality.

The real world and the simulated world are different. Simulation is very useful. However,

necessarily it presents an artificially 'perfect' world where components behave as

idealists. In the real world no component is ideal, which results in differences in the

performance when compared to the simulated world.

ASSEMBLY INSTRUCTIONS

RFLEGO Active Antenna Receiving Loop
