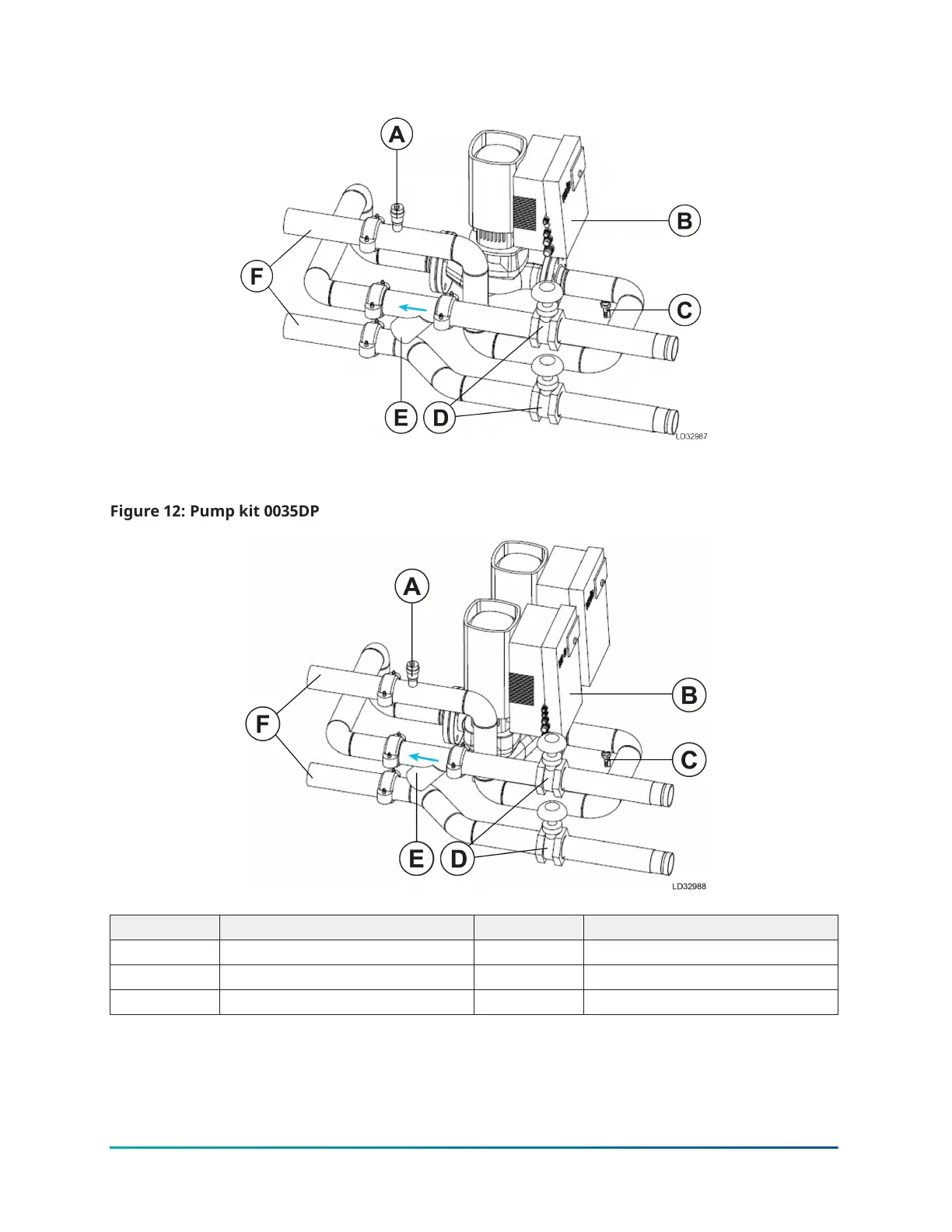

Figure 11: Pump kit 0035SP
F
i
g
u
r
e
1
2
:
Pump
kit
0035DP
Callout
Description
Callout
Description
A
Air purger
D
Shutoff valves
B
VSD Pump
E
Str
ainer
C
Drainage valves
F
Connection to unit
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
30
