Dimensions
Note: All unit model inlet and outet water tube connections are 2 ½ in. victaulic. The water
tube OD diameter is 73 mm.

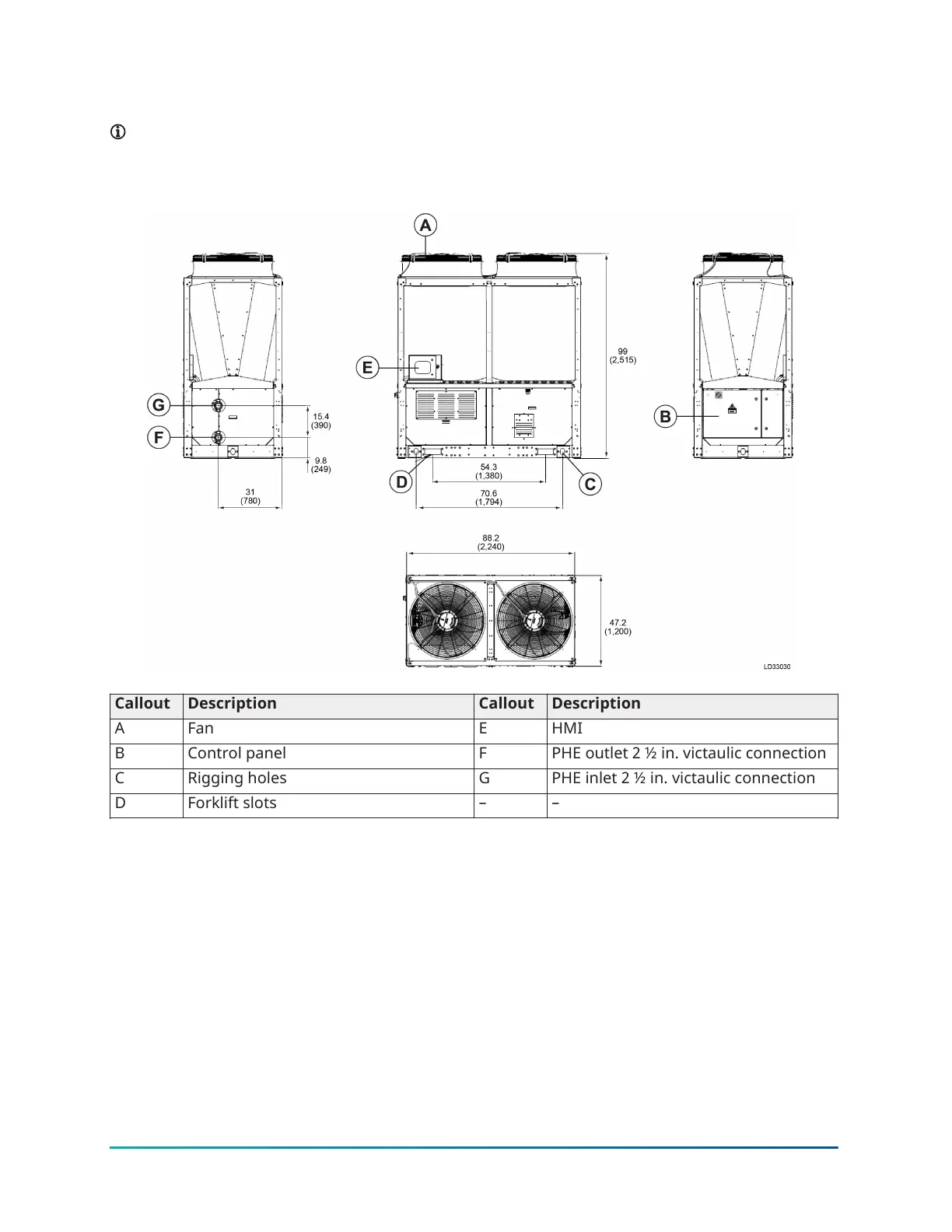

Figure 63: 0035PJP dimensions, in. (mm)
Callout Description Callout Description
A Fan E HMI
B Control panel F PHE outlet 2 ½ in. victaulic connection
C Rigging holes G PHE inlet 2 ½ in. victaulic connection
D Forklift slots – –
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump90
