Physical data

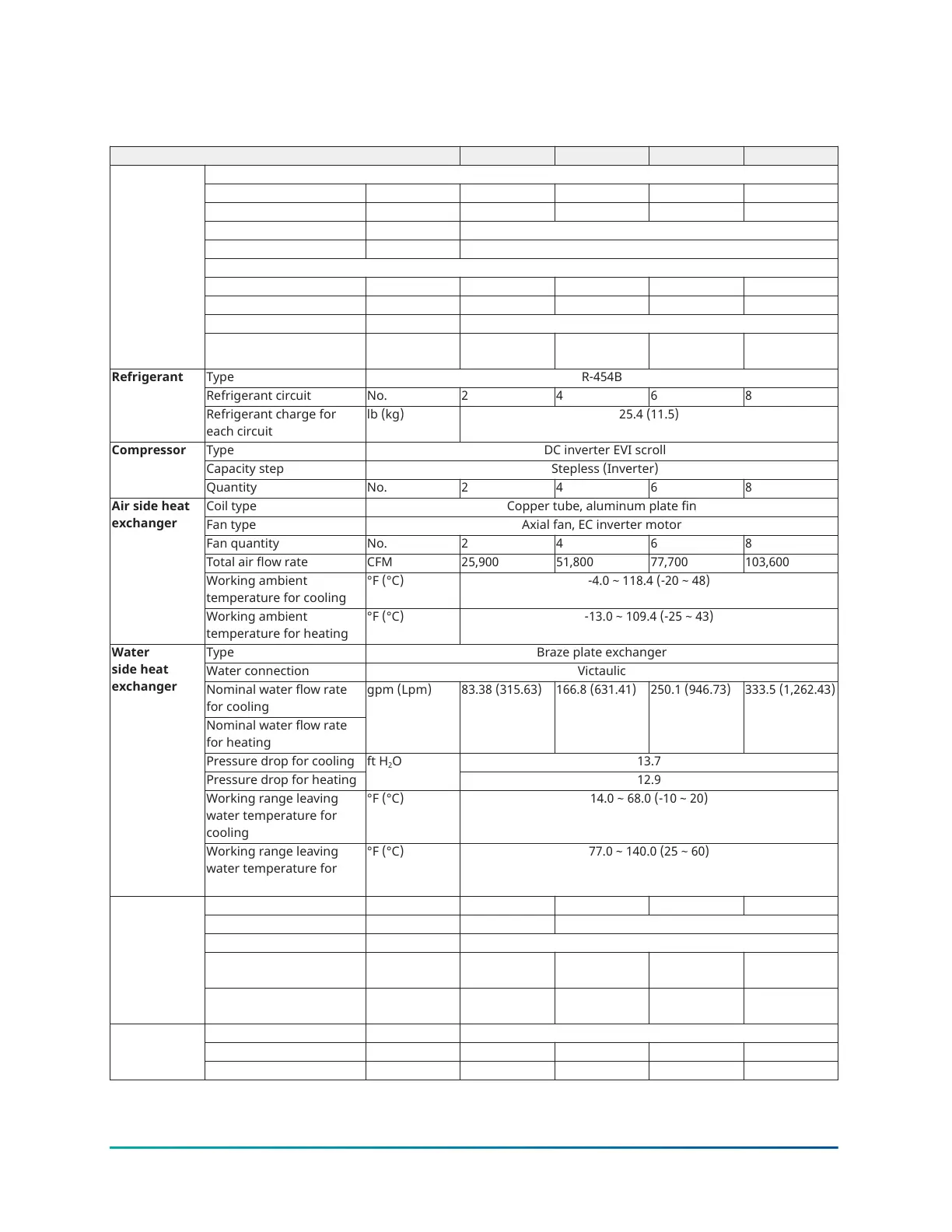

Table 10: Two-pipe physical data, 0035 to 0140, 460 V, 3-phase, 60 Hz
Two pipe model 0035PJP 0070PJP 0105PJP 0140PJP
Cooling mode
Cooling capacity Ton 35 70 105 140
Input power kW 41.17 82.4 123.5 164.8
EER BTU/W 10.2
IPLV BTU/W 20.01
Heating mode, ambient: 47°F/43°F, leaving: 105°F
Heating capacity MBH 458.4 916.8 1,375 1,834
Input power kW 38.94 77.88 116.8 155.8
COPH kW 3.45
Performance
Sound power level for
cooling
dB(A) 84 87 90 91
Type R-454B
Refrigerant circuit No. 2 4 6 8
Refrigerant
Refrigerant charge for
each circuit
lb (kg) 25.4 (11.5)
Type DC inverter EVI scroll
Capacity step Stepless (Inverter)
Compressor
Quantity No. 2 4 6 8
Coil type Copper tube, aluminum plate fin
Fan type Axial fan, EC inverter motor
Fan quantity No. 2 4 6 8
Total air flow rate CFM 25,900 51,800 77,700 103,600
Working ambient
temperature for cooling
°F (°C) -4.0 ~ 118.4 (-20 ~ 48)
Air side heat
exchanger
Working ambient
temperature for heating
°F (°C) -13.0 ~ 109.4 (-25 ~ 43)
Type Braze plate exchanger
Water connection Victaulic
Nominal water flow rate
for cooling
Nominal water flow rate
for heating
gpm (Lpm) 83.38 (315.63) 166.8 (631.41) 250.1 (946.73) 333.5 (1,262.43)
Pressure drop for cooling 13.7
Pressure drop for heating
ft H
2
O
12.9
Working range leaving
water temperature for
cooling
°F (°C) 14.0 ~ 68.0 (-10 ~ 20)
Water
side heat
exchanger
Working range leaving
water temperature for
heating
°F (°C) 77.0 ~ 140.0 (25 ~ 60)
Length, without pump kit in. (mm) 88.2 (2,240) 120.1 (3,051) 192.9 (4,900) 265.8 (6,751)
Width, without pump kit in. (mm) 47.2 (1,199) 88.2 (2,240)
Height, without pump kit in. (mm) 99 (2,515)
Shipping weight without
pump kit
lb (kg) 2,370 (1,075) 5,164 (2,342) 7,870 (3,570) 10,569 (4,794)
Dimensions
and weight
Operation weight without
pump kit
lb (kg) 2,403 (1,090) 5,230 (2,372) 7,969 (3,615) 10,701 (4,854)
Voltage V/Ph/Hz 460/3/60
MCA without pump kit A 74 140 206 272
Electrical
features
RLA without pump kit A 66 132 198 264
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump84
