Lifting the unit
Units are provided with rigging slots located at the unit base frame, which accept the accessory
lifting lug set as shown in the following figures.

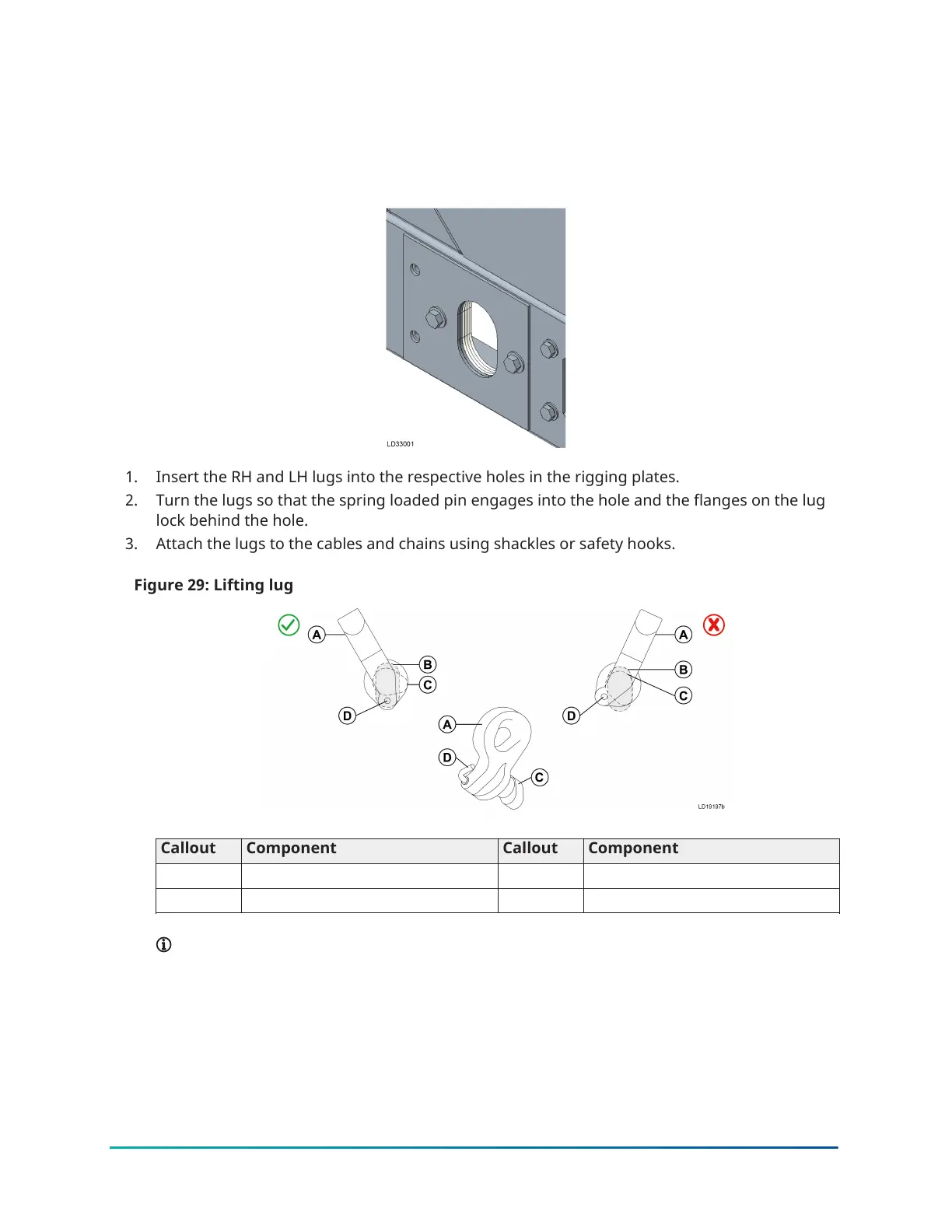

Figure 28: Correct lifting lug position
1. Insert the RH and LH lugs into the respective holes in the rigging plates.
2. Turn the lugs so that the spring loaded pin engages into the hole and the flanges on the lug
lock behind the hole.
3. Attach the lugs to the cables and chains using shackles or safety hooks.
Figure 29: Lifting lug
Callout Component Callout Component
A Lug C Flange
B Lifting hole in the base frame D Locking pin
Note:
- The lugs are not included with the unit.
- Do not use the dragging plates as lifting lugs when lifting the units. Refer to the
lifting instructions on each unit before you lift units.
43YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
