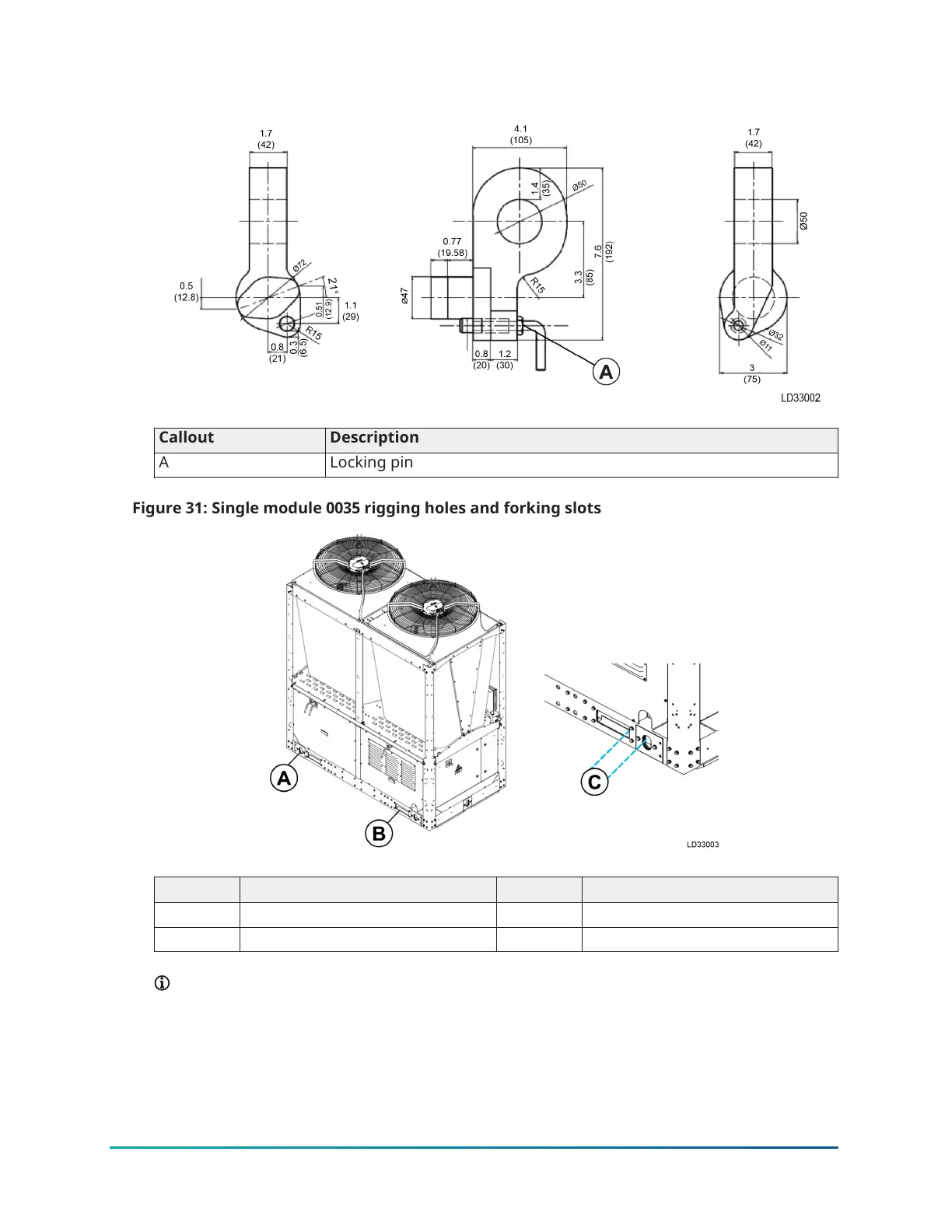

Figure 30: Lifting lug dimensions, in. (mm)
Callout Description
A Locking pin
Figure 31: Single module 0035 rigging holes and forking slots
Callout Component Callout Component
A Rigging holes C Dragging rope
B Forking slots
Note:
- Rigging holes are located at the four-corner of the unit.
- The rigging-hole and forking-slot can be used when dragging the unit from
container.
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump44
