Installing the neoprene isolators
Note:
- Read the instructions in their entirety before beginning installation.
- Isolators are shipped fully assembled. Make sure the AVM types are correct, as found
on the print codes and adhesive labels, and match each load point with corresponding
isolators.
1. Use a spanner to twist off the fixing bolt and washer.
2. Set the isolators on floor. Ensure that all isolator centerlines match the equipment mounting
holes. Install the isolator base on a level surface. Level all isolator bases to the same
elevation.
3. Place the equipment on top of the isolators making sure that the mounting holes of the
equipment line up with the isolator installation holes.
4. Tighten the fixing bolt and ensure the verticality of the isolators.
5. Tighten the bolts at the base of the isolator.

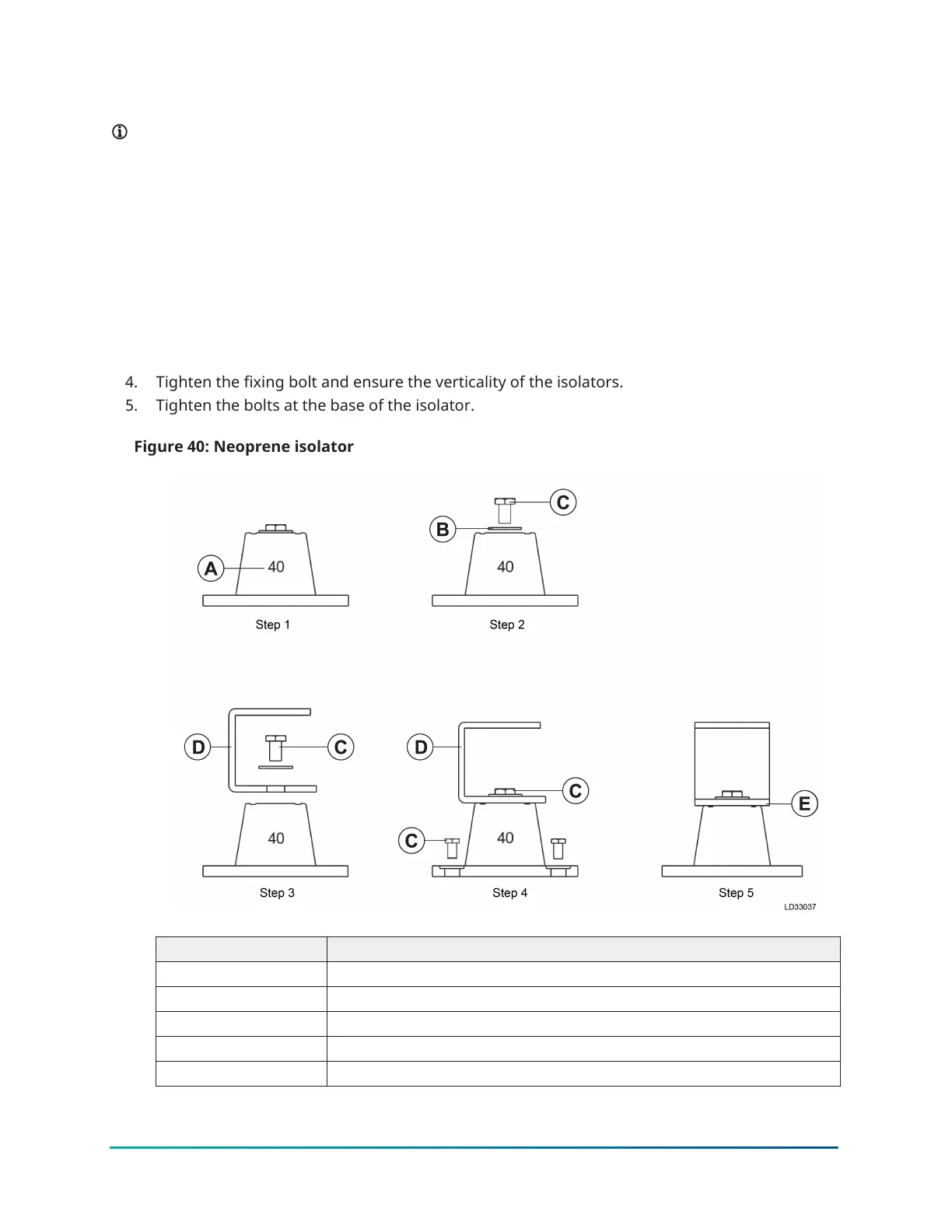

Figure 40: Neoprene isolator
Callout Description
A Code
B Washer
C Fixing bolt
D Unit
E Ensure the base of the unit covers the surface of AVM
