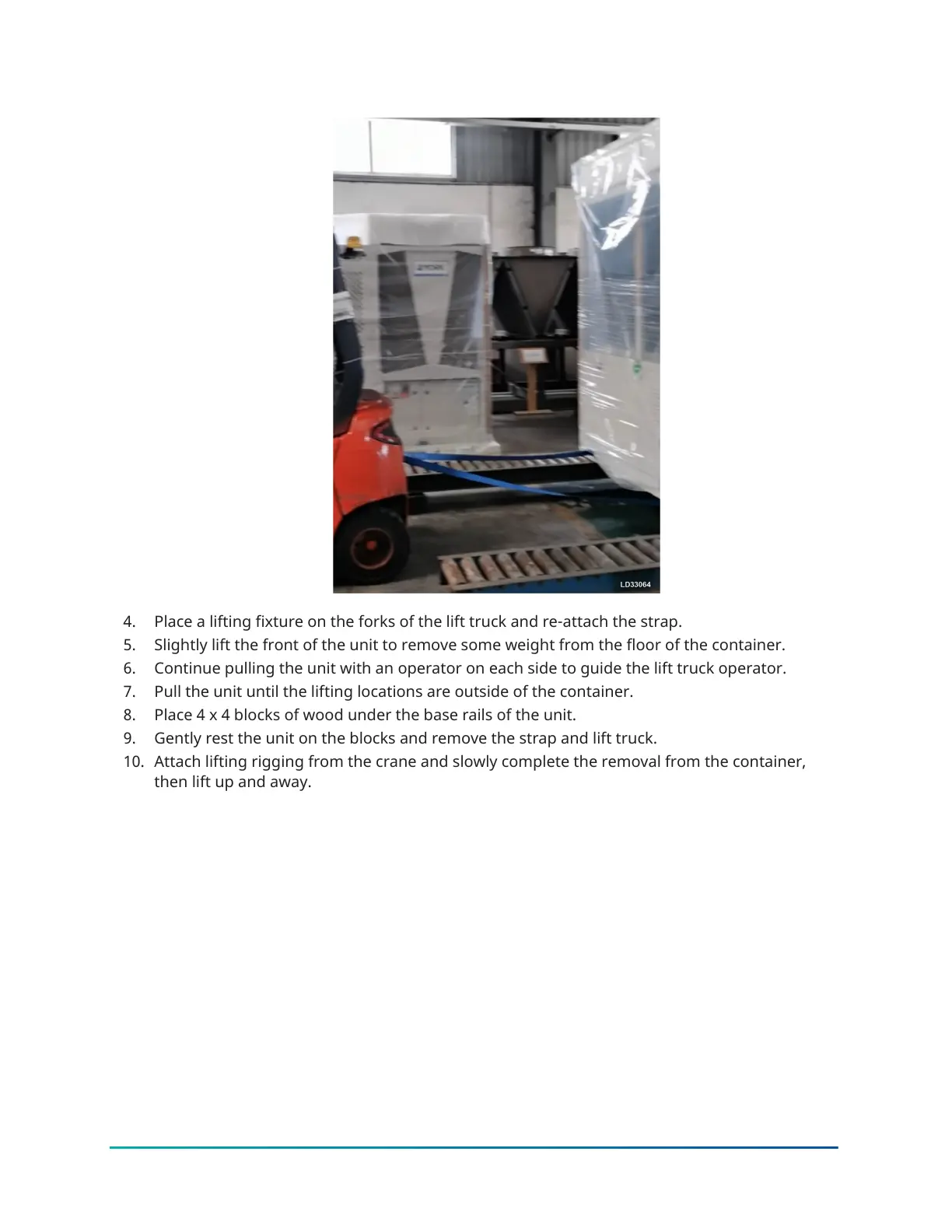

Figure 27: Pulling the unit
4. Place a lifting fixture on the forks of the lift truck and re-attach the strap.
5. Slightly lift the front of the unit to remove some weight from the floor of the container.
6. Continue pulling the unit with an operator on each side to guide the lift truck operator.
7. Pull the unit until the lifting locations are outside of the container.
8. Place 4 x 4 blocks of wood under the base rails of the unit.
9. Gently rest the unit on the blocks and remove the strap and lift truck.
10. Attach lifting rigging from the crane and slowly complete the removal from the container,
then lift up and away.
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump42
