York YMAE - Page 91

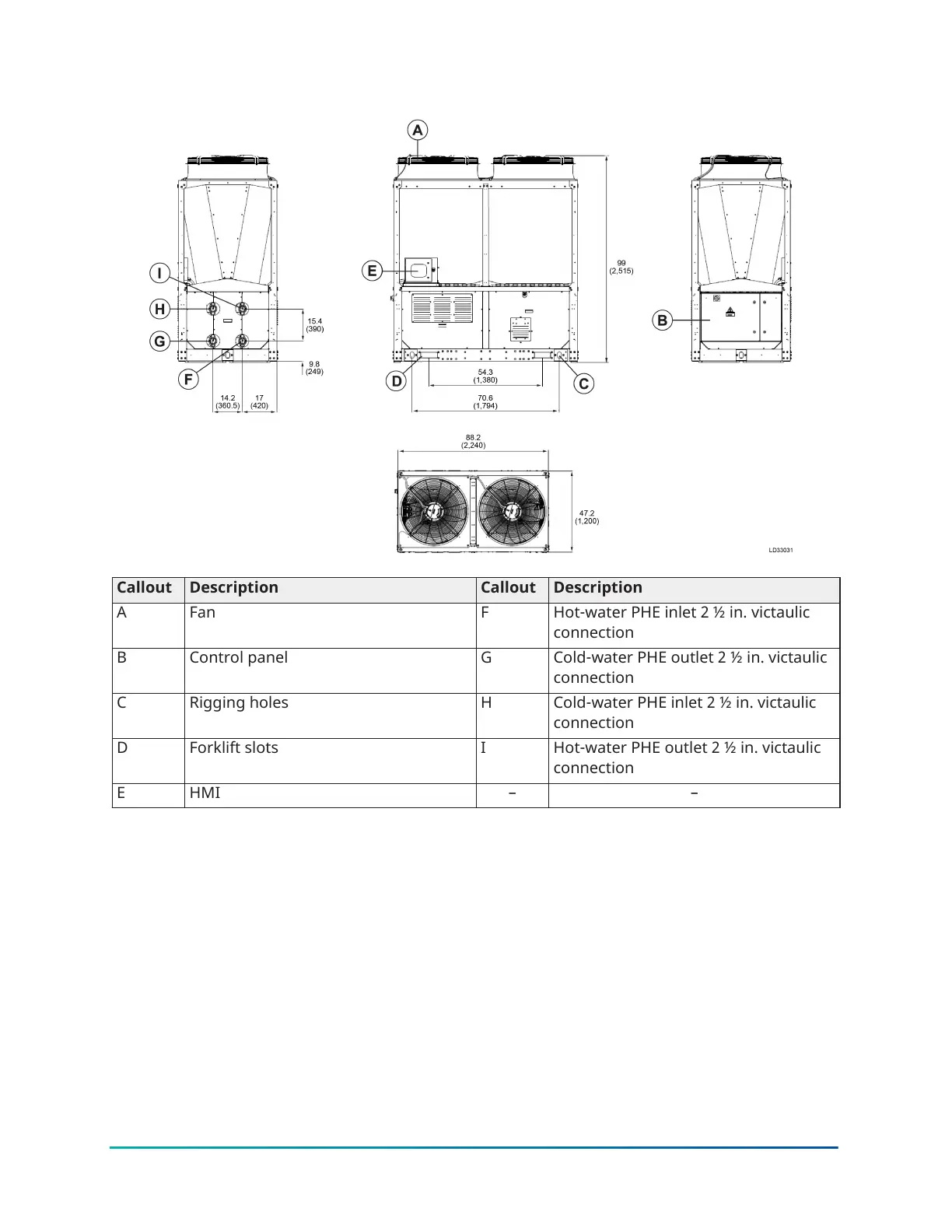

Figure 64: 0035PJS dimensions, in. (mm)
Callout Description Callout Description
A Fan F Hot-water PHE inlet 2 ½ in. victaulic
connection
B Control panel G Cold-water PHE outlet 2 ½ in. victaulic
connection
C Rigging holes H Cold-water PHE inlet 2 ½ in. victaulic
connection
D Forklift slots I Hot-water PHE outlet 2 ½ in. victaulic
connection
E HMI – –
91YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
