York YMAE - Page 92

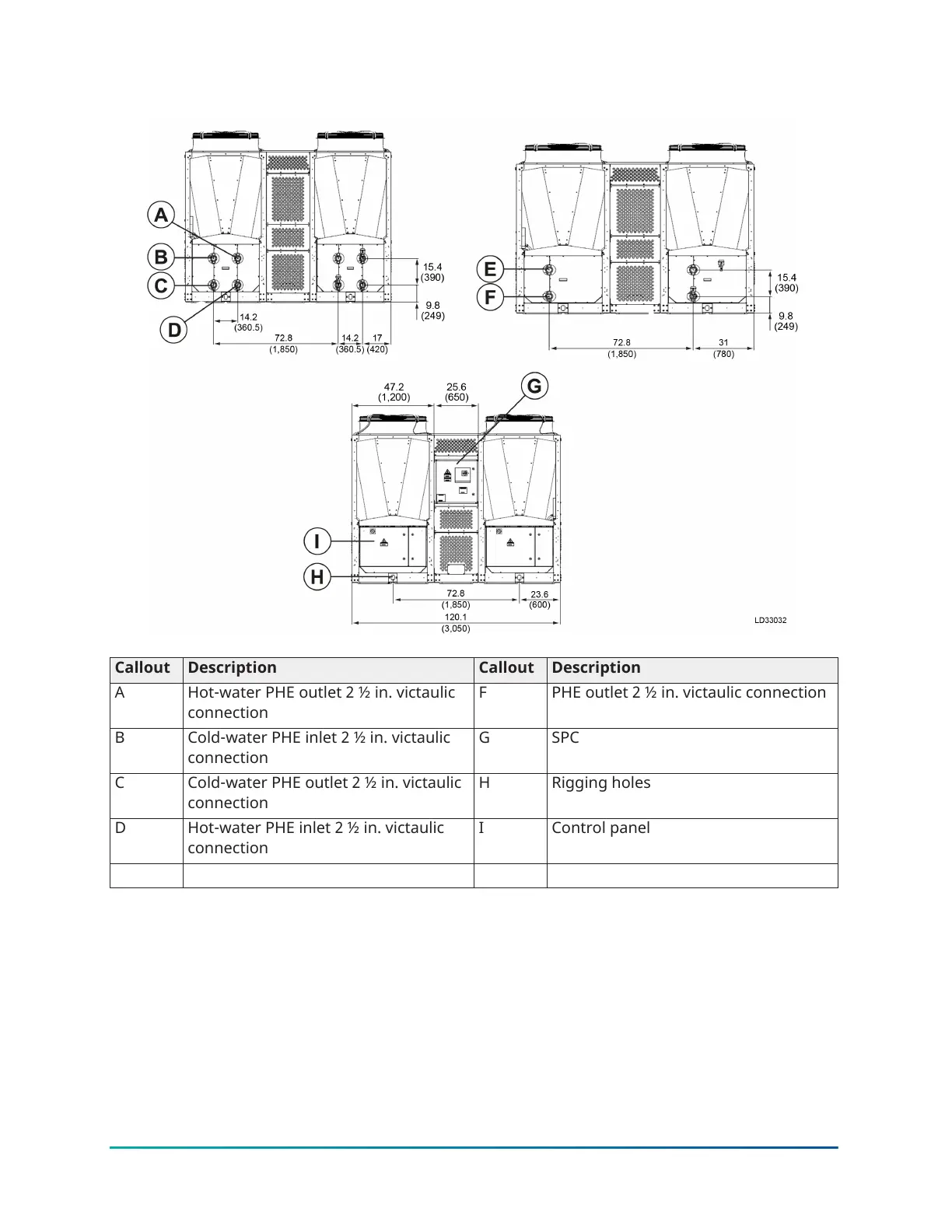

Figure 65: 0070 dimensions, in. (mm)
Callout Description Callout Description
A Hot-water PHE outlet 2 ½ in. victaulic
connection
F PHE outlet 2 ½ in. victaulic connection
B Cold-water PHE inlet 2 ½ in. victaulic
connection
G SPC
C Cold-water PHE outlet 2 ½ in. victaulic
connection
H Rigging holes
D Hot-water PHE inlet 2 ½ in. victaulic
connection
I Control panel
E PHE inlet 2 ½ in. victaulic connection – –
YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump92
