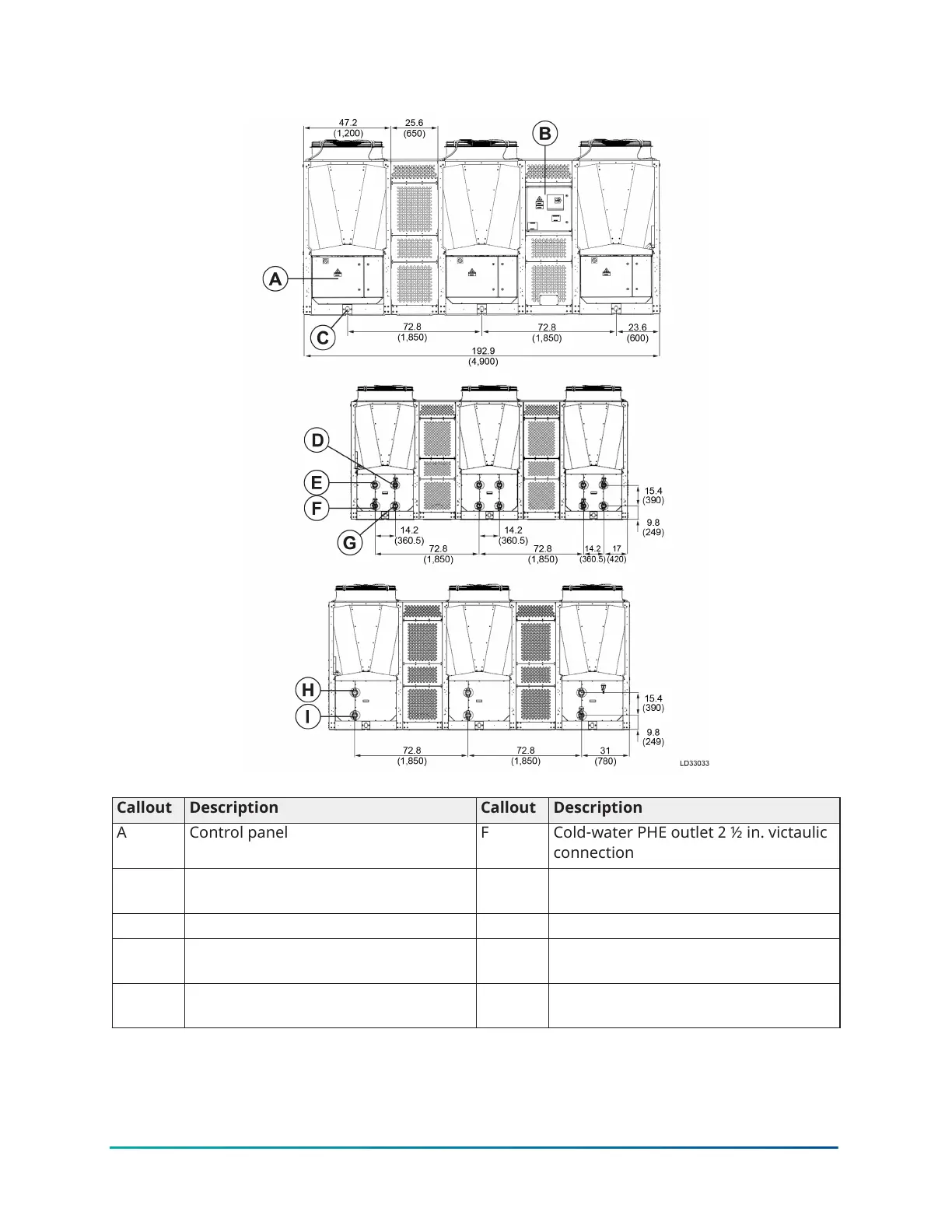

Figure 66: 0105 dimensions, in. (mm)
Callout Description Callout Description
A Control panel F Cold-water PHE outlet 2 ½ in. victaulic
connection
B SPC G Hot-water PHE inlet 2 ½ in. victaulic
connection
C Rigging holes H PHE inlet 2 ½ in. victaulic connection
D Hot-water PHE outlet 2 ½ in. victaulic
connection
I PHE outlet 2 ½ in. victaulic connection
E Cold-water PHE inlet 2 ½ in. victaulic
connection
– –
93YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
