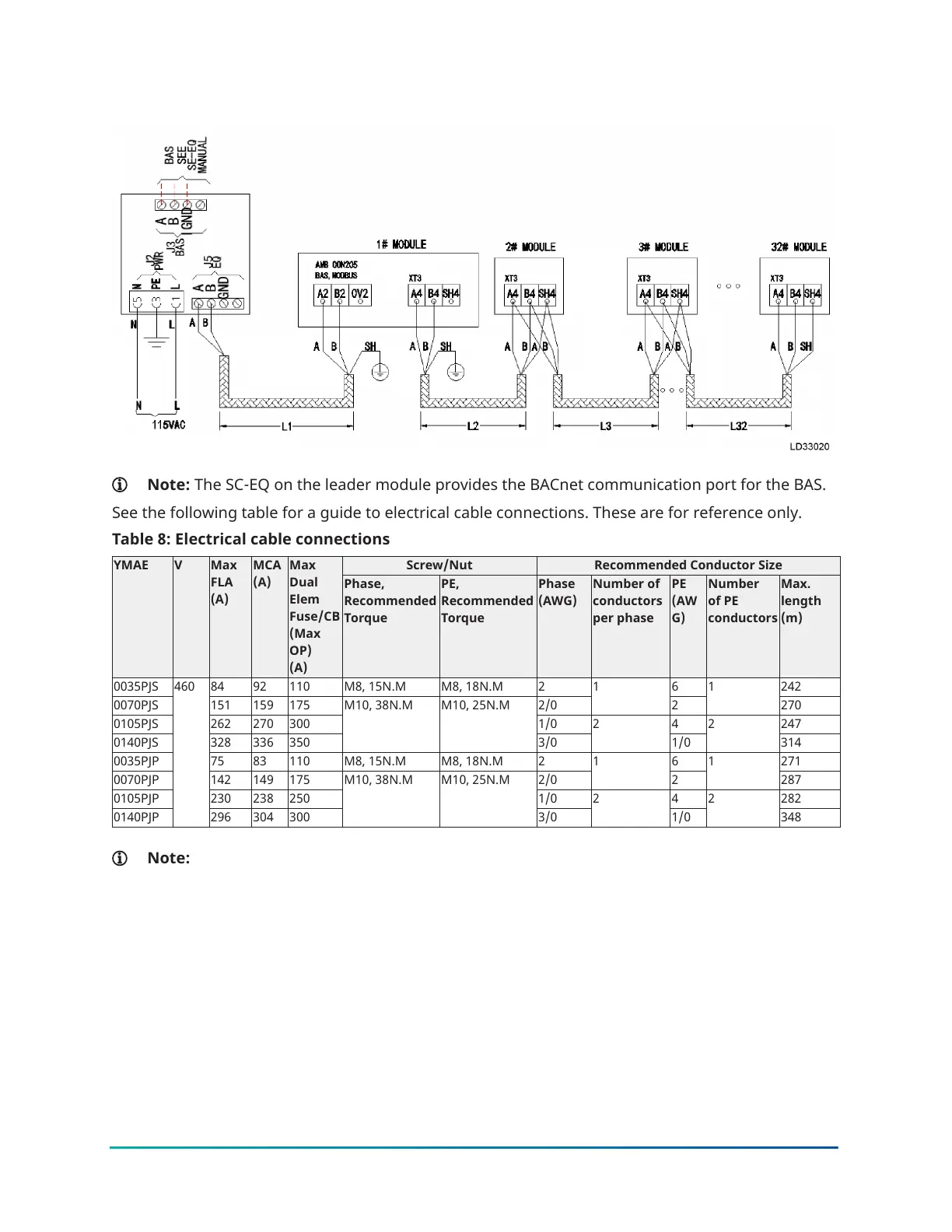

Figure 50: Communication connections, SC-EQ and BAS
Note: The SC-EQ on the leader module provides the BACnet communication port for the BAS.
See the following table for a guide to electrical cable connections. These are for reference only.
Table 8: Electrical cable connections
Screw/Nut Recommended Conductor SizeYMAE V Max
FLA
(A)
MCA
(A)
Max
Dual
Elem
Fuse/CB
(Max
OP)
(A)
Phase,
Recommended
Torque
PE,
Recommended
Torque
Phase
(AWG)
Number of
conductors
per phase
PE
(AW
G)
Number
of PE
conductors
Max.
length
(m)
0035PJS 84 92 110 M8, 15N.M M8, 18N.M 2 6 242
0070PJS 151 159 175 2/0
1
2
1
270
0105PJS 262 270 300 1/0 4 247
0140PJS 328 336 350
M10, 38N.M M10, 25N.M
3/0
2
1/0
2
314
0035PJP 75 83 110 M8, 15N.M M8, 18N.M 2 6 271
0070PJP 142 149 175 2/0
1
2
1
287
0105PJP 230 238 250 1/0 4 282
0140PJP
460
296 304 300
M10, 38N.M M10, 25N.M
3/0
2
1/0
2
348
Note:
• The data in the table are based on including the hydraulic kit.
• The maximum distance is calculated using the cable diameters shown in this table. For
longer lengths, and for cables laying with other cables, re-calculate the minimum cable
diameter to a higher value to allow for any electromagnetic or harmonic effects.
67YMAE Air-Cooled Inverter Scroll Chiller and Heat Pump
