Zebra 105SL Plus User Manual

Routine Maintenance
Cleaning Schedule and Procedures
132
P1056468-002 7/3/13

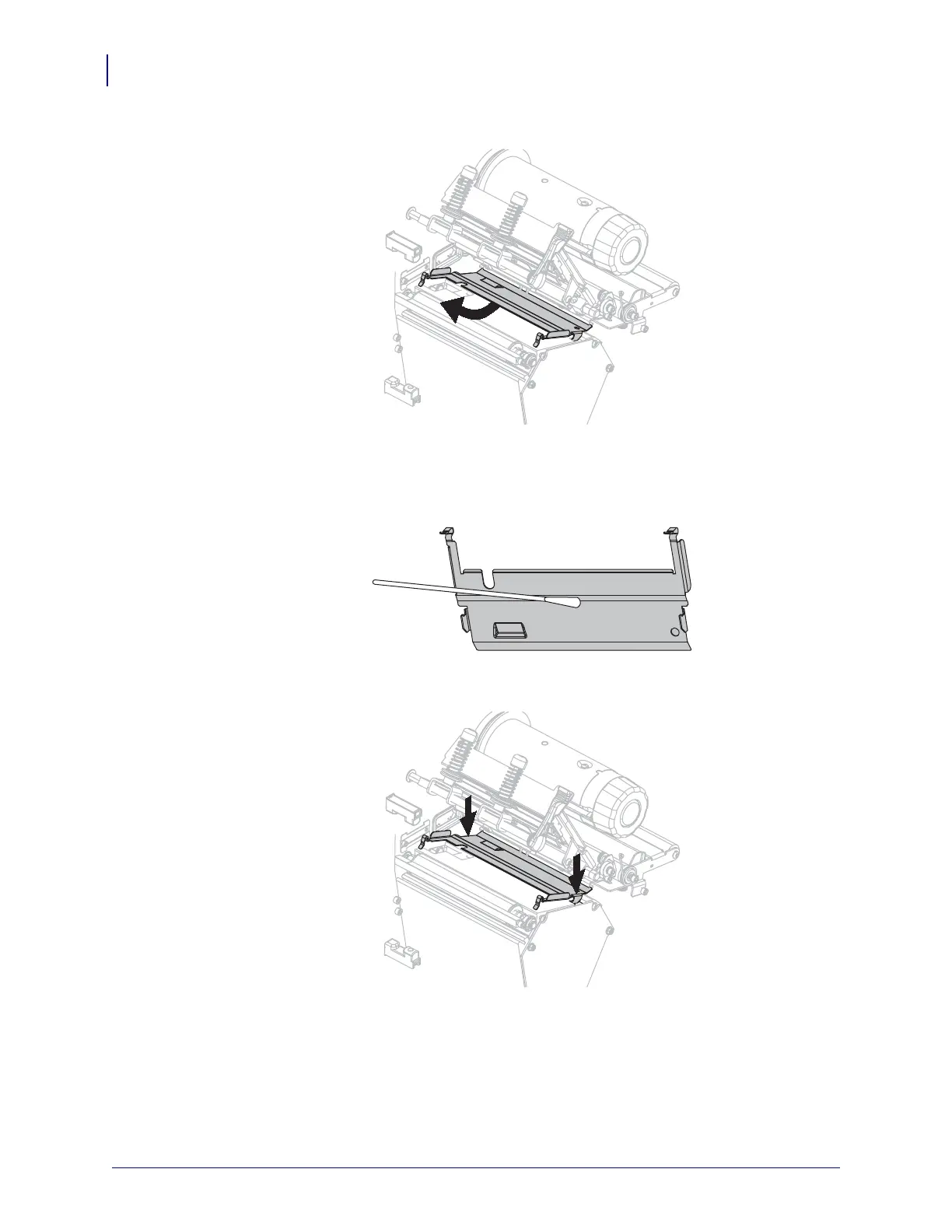

5. Remove the snap plate from the printer.
6. Using the swab from the Preventive Maintenance Kit (part number 47362), clean the back
of the snap plate. In place of the Preventive Maintenance Kit, you may use a clean swab or
soft cloth dipped in a solution of isopropyl alcohol (minimum 90%) and deionized water
(maximum 10%). Allow the solvent to evaporate.
7. To reinstall the snap plate, insert the two tabs on the bottom of the snap plate into the two
slots of the media path.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
