Troubleshooting
Printer Diagnostics
7/3/13 P1056468-002

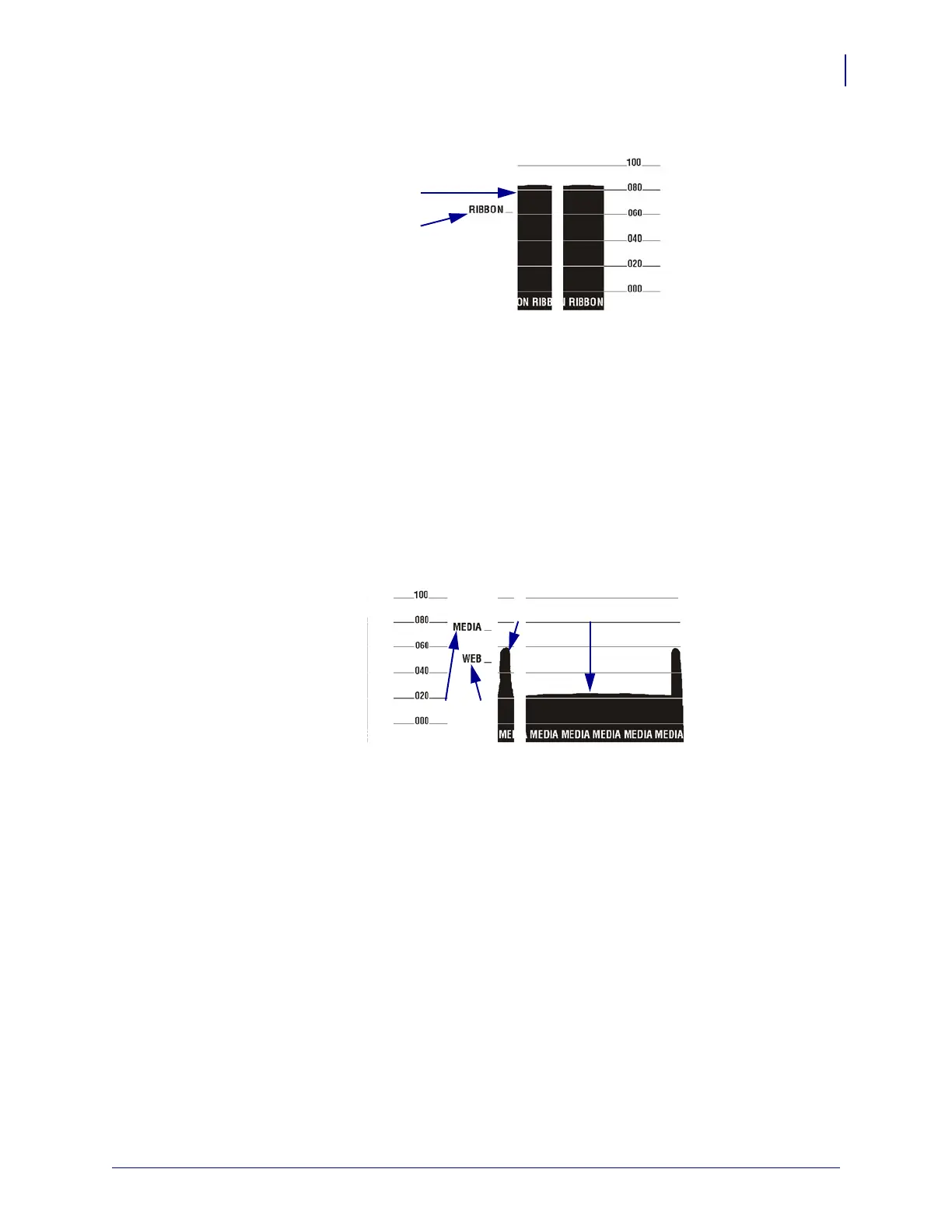

Figure 19 • Sensor Profile (Ribbon Section)
Media Sensor Profile (Figure 20) The media sensor readings are shown as bars and flat
areas on the sensor profile (Figure 20). The bars (
1) indicate gaps between labels (the web),
and the low areas (
2) indicate where labels are located. If you compare the sensor profile
printout to a blank length of your media, the bars should be the same distance apart as the gaps
on the media. If the distances are not the same, the printer may be having difficulty
determining where the gaps are located.
The media sensor threshold settings are shown by the words
MEDIA (3) for the media
threshold and
WEB (4) for the web threshold. Use the numbers to the left of the sensor
readings to compare the numeric readings to the sensor settings.
Figure 20 • Sensor Profile (Media Section)
1
2
21
3 4

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
