Zebra 105SL Plus User Manual

Introduction
Control Panel Display
28
P1056468-002 7/3/13

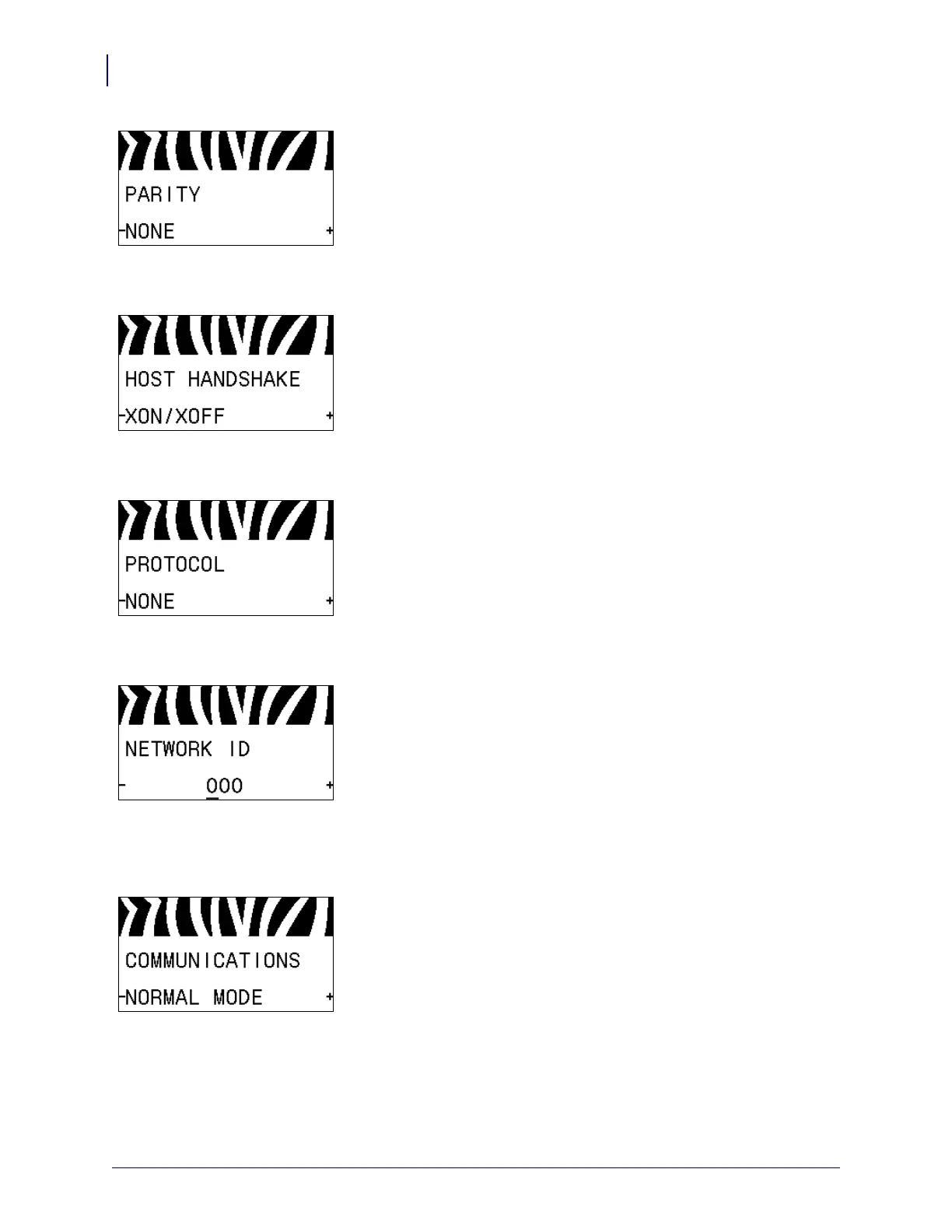

Set the Parity Value
Select the parity value that matches the one being used by the host
computer.
See Parity on page 104 for more information.
Set the Host Handshake Protocol Value
Select the handshake protocol that matches the one being used by
the host computer.
See Host Handshake on page 105 for more information.
Set the Zebra Protocol Value
Protocol is a type of error checking system. Depending on the
selection, an indicator may be sent from the printer to the host
computer signifying that data has been received. Select the
protocol that is requested by the host computer.
See Protocol on page 105 for more information.
Set the Network ID
This parameter assigns a unique number to the printer when the
printer is operating in an RS422/485 multi-drop network
environment (an external RS422/485 adapter is required). This
gives the host computer the means to address a specific printer.
This does not affect TCP/IP or IPX networks. Set a unique network
ID number for this printer.
See Network ID on page 105 for more information.
Enable Communication Diagnostics Mode
Use this diagnostics tool to cause the printer to output the
hexadecimal values for all data received by the printer.
See Communication Diagnostics Mode on page 94 for more
information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
