Zebra 105SL Plus User Manual

27
Introduction
Control Panel Display
7/3/13 P1056468-002

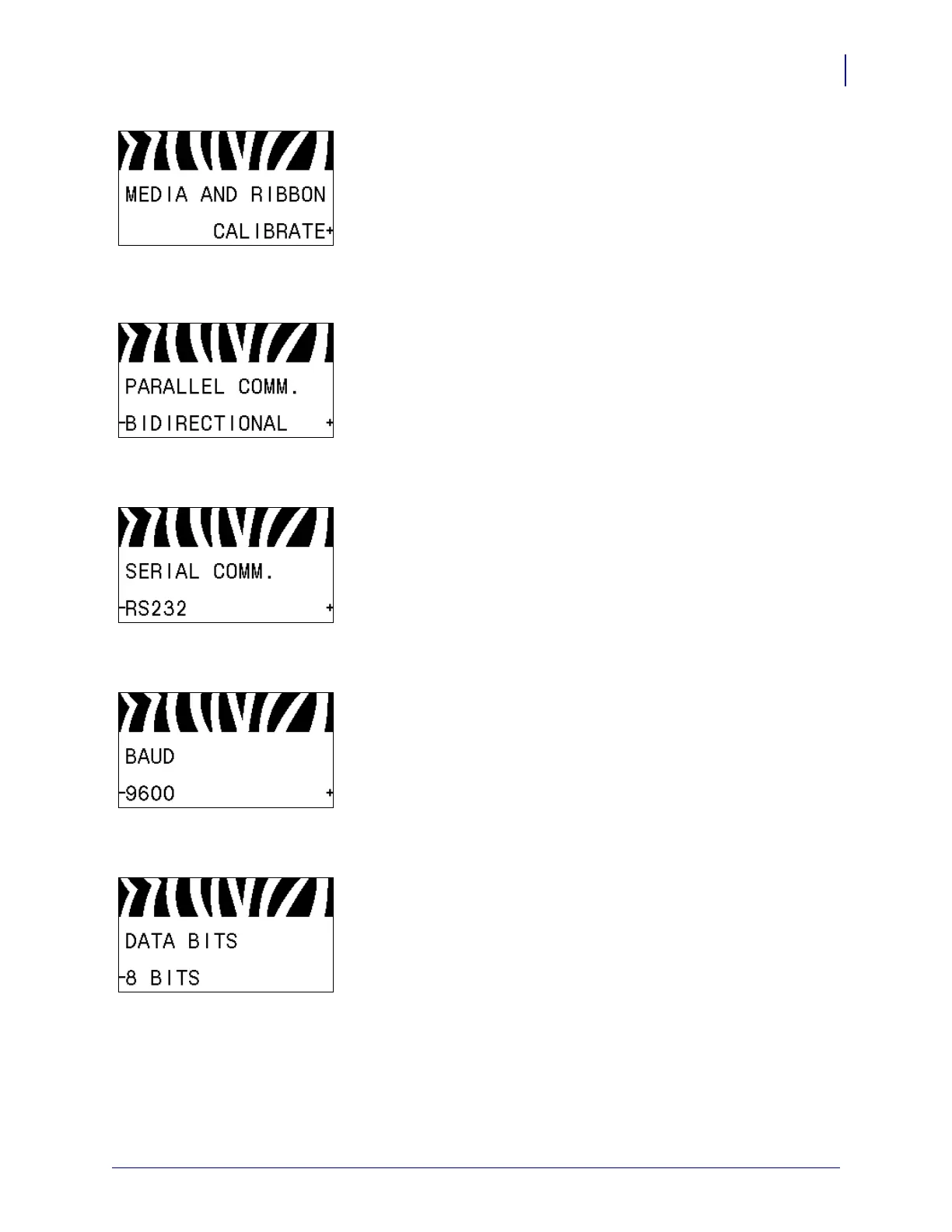

Calibrate the Media and Ribbon Sensors
Use this menu item to adjust the sensitivity of the media and
ribbon sensors.
See Media and Ribbon Sensor Calibration on page 94 for more
information. For instructions on how to perform a calibration
procedure, see Calibrate the Ribbon and Media Sensors Manually
on page 106.
Set Parallel Communications
Select the communications port that matches the one being used by
the host computer.
See Parallel Communications on page 103 for more information.
Set Serial Communications
Select the communications port that matches the one being used by
the host computer.
See Parallel Communications on page 103 for more information.
Set the Baud Rate
Select the baud value that matches the one being used by the host
computer.
See Baud Rate on page 104 for more information.
Set the Data Bits Value
Select the data bits value that matches the one being used by the
host computer.
See Data Bits on page 104 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
