Zebra 105SL Plus User Manual

Introduction
Control Panel Display
26
P1056468-002 7/3/13

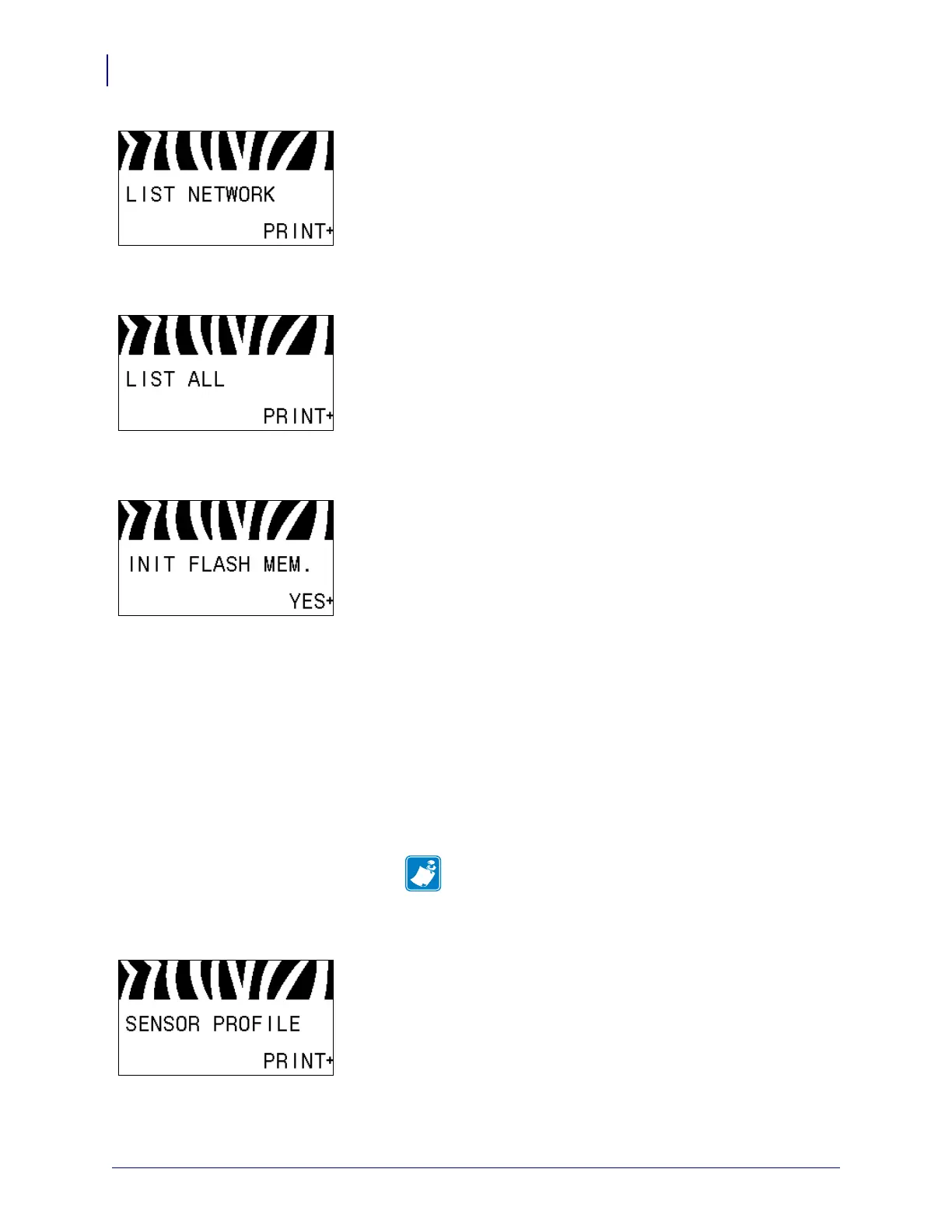

Print Network Configuration Label
This option prints a configuration label (see Figure 14
on page 149), which lists the settings for any print server that is
installed.
See Print Information on page 91 for more information.
Print All Labels
This option prints labels that list the available fonts, bar codes,
images, formats, and the current printer and network
configurations.
See Print Information on page 91 for more information.
Initialize Flash Memory
This option erases all previously stored information from Flash
memory.
1. If prompted for a password, enter the printer password. For
instructions, see Changing Password-Protected Parameters
on page 20.
The display shows
INITIALIZE FLASH?
2. Press PLUS (+) to select YES.
The display shows ARE YOU SURE?.
3. Do you want to continue?
• Press MINUS (-) to select NO to cancel the request and return
to the
INITIALIZE FLASH prompt.
• Press PLUS (+) to select YES and begin initialization.
When initialization is complete, the control panel displays
INITIALIZING COMPLETED.
Note • Initializing memory can take several minutes.
See Initialize Flash Memory on page 91 for more information.
Print a Sensor Profile
Use this menu item to print a sensor profile.
See Print a Sensor Profile on page 91 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
