Zebra 105SL Plus User Manual

25
Introduction

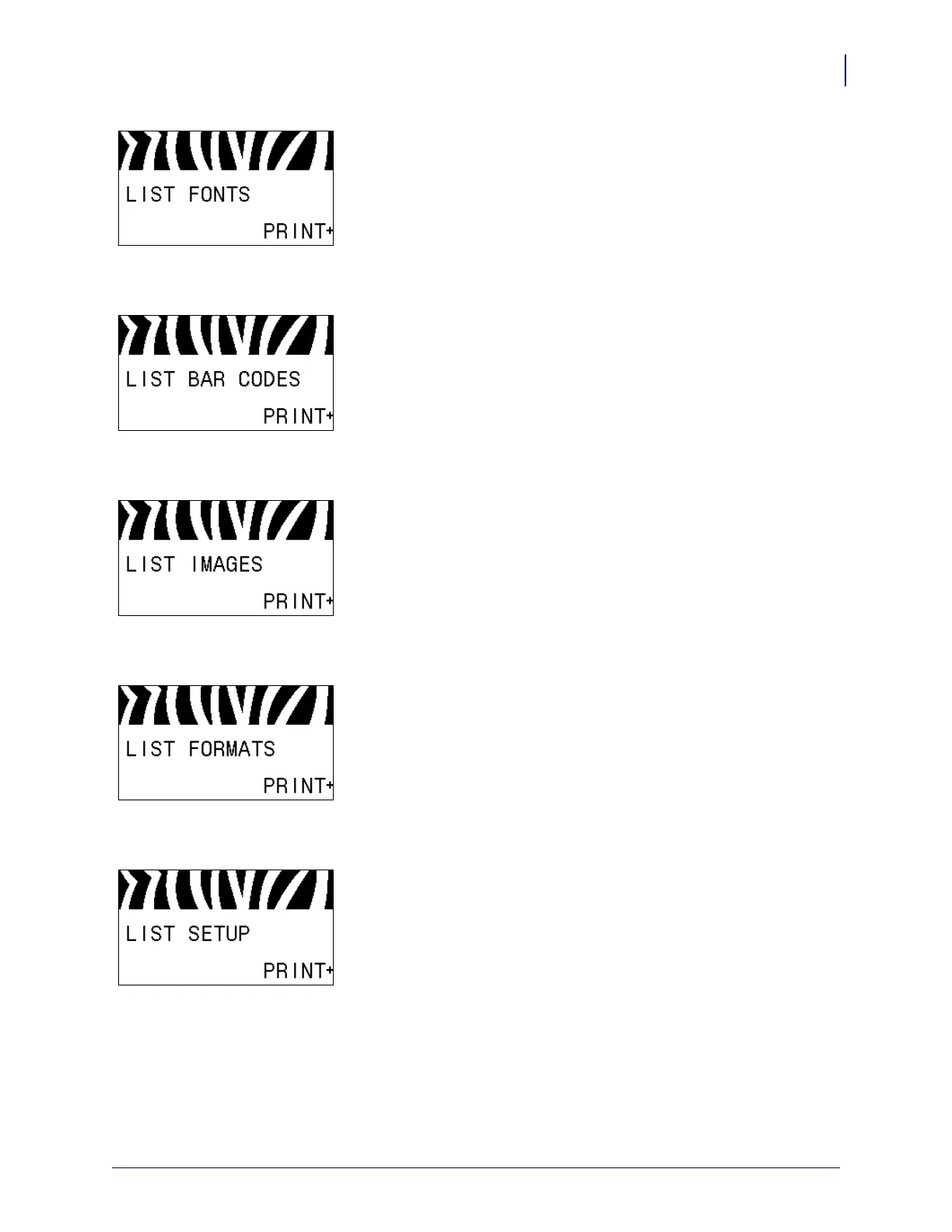

Control Panel Display
7/3/13 P1056468-002
Print Font List
This option prints a label that lists the available fonts in the printer,
including standard printer fonts plus any optional fonts. Fonts may
be stored in RAM or Flash memory.
See Print Information on page 91 for more information.
Print Bar Code List
This option prints a label that lists the available bar codes in the
printer. Bar codes may be stored in RAM or Flash memory.
See Print Information on page 91 for more information.
Print Image List
This option prints a label that lists the available images stored in
the printer’s RAM, Flash memory, or optional memory card.
See Print Information on page 91 for more information.
Print Format List
This option prints a label that lists the available formats stored in
the printer’s RAM, Flash memory, or optional memory card.
See Print Information on page 91 for more information.
Print Configuration Label
This option prints a configuration label (see Figure 13
on page 149), which lists the current printer configuration.
See Print Information on page 91 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
