Introduction
Control Panel Display
24
P1056468-002 7/3/13

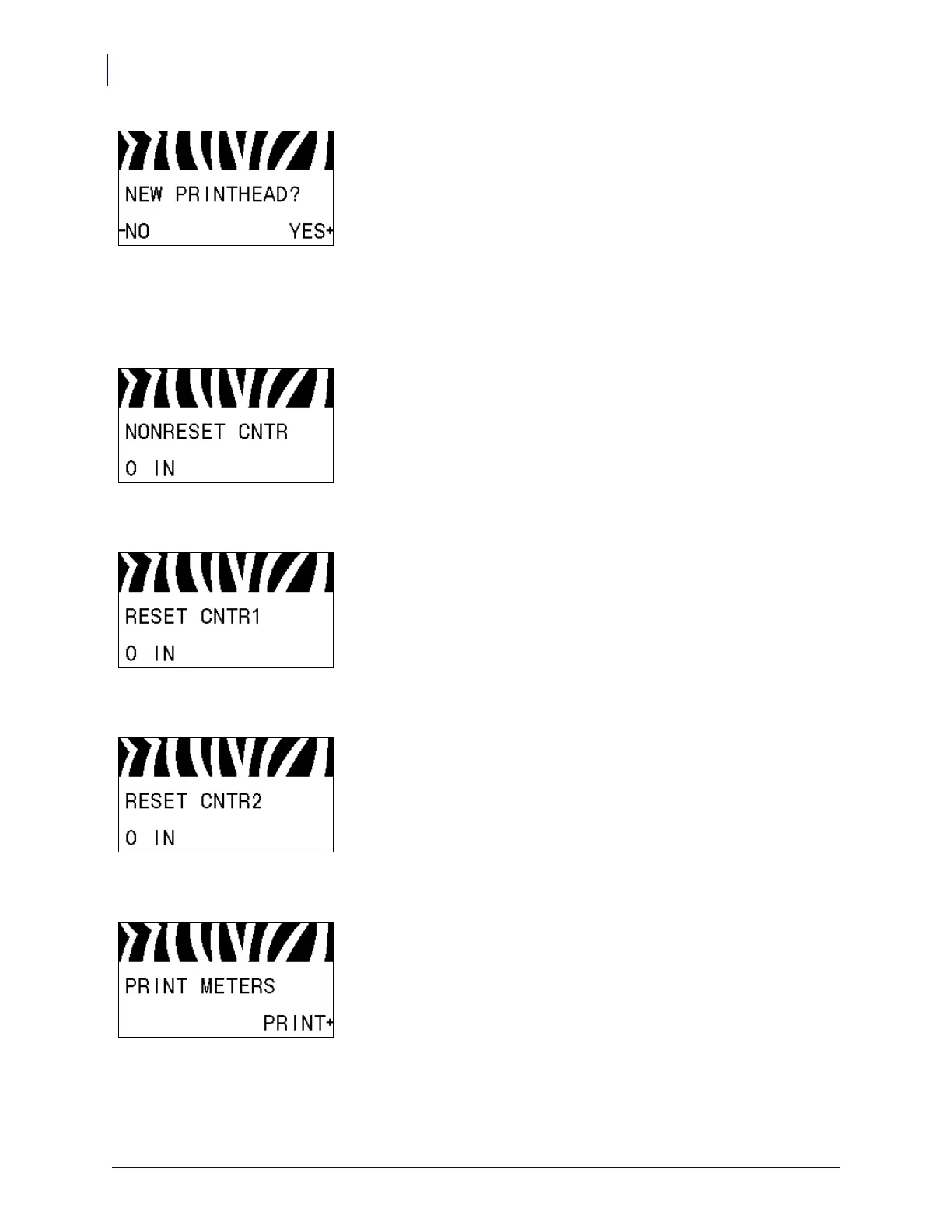

Reset New Printhead Counter for Early Warning*
• If you received the message WARNING REPLACE HEAD,
replace the printhead, and then press PLUS (+) to select
YES to
reset the Early Warning for Maintenance printhead replacement
counter.
• If you have not replaced the printhead, press MINUS (-) to
select
NO.
* This parameter appears only if Early Warning for Maintenance
is enabled.
View the Non-Resettable Counter
This parameter displays the total length of media that the printer
has printed.
See Non-Resettable Counter on page 90 for more information.
View User-Controlled Counter 1
This parameter displays the total length of media that the printer
has printed since this counter was last reset.
See User-Controlled Counters on page 90 for more information.
View User-Controlled Counter 2
This parameter displays the total length of media that the printer
has printed since this counter was last reset.
See User-Controlled Counters on page 90 for more information.
Print Counter Readings
Prints a label that lists the odometer readings for the following:
• the non-resettable counter
• the two user-controlled counters
• the Early Warning for Maintenance counters, which indicate
when the printhead was last cleaned and the printhead life (If
the Early Warning for Maintenance feature is disabled, the
counters related to it do not print.)
See Print Counter Readings on page 90 for more information.

Zebra 105SL Plus Specifications

General

Weight	50 lbs / 22.7 kg
Humidity	20-85% non-condensing
Print Method	Thermal Transfer
Resolution	203 dpi (8 dots/mm)
Max Print Width	4.09 inches / 104 mm
Max Print Speed	12 inches per second / 305 mm per second
Memory	16 MB SDRAM, 8 MB Flash
Media Width	0.79 inches / 20 mm to 4.5 inches / 114 mm
Media Thickness	0.003 inches / 0.076 mm to 0.012 inches / 0.305 mm
Media Types	Continuous, die-cut, black mark
Ribbon Width	2.00 inches / 51 mm to 4.33 inches / 110 mm
Ribbon Length	1476'/450 m
Connectivity	Parallel, Serial
Optional Connectivity	Ethernet, Wireless
Power Requirements	90-264 VAC; 48-62 Hz
Operating Temperature	40°F to 105°F / 5°C to 40°C
Storage Temperature	-40°F to 140°F / -40°C to 60°C
