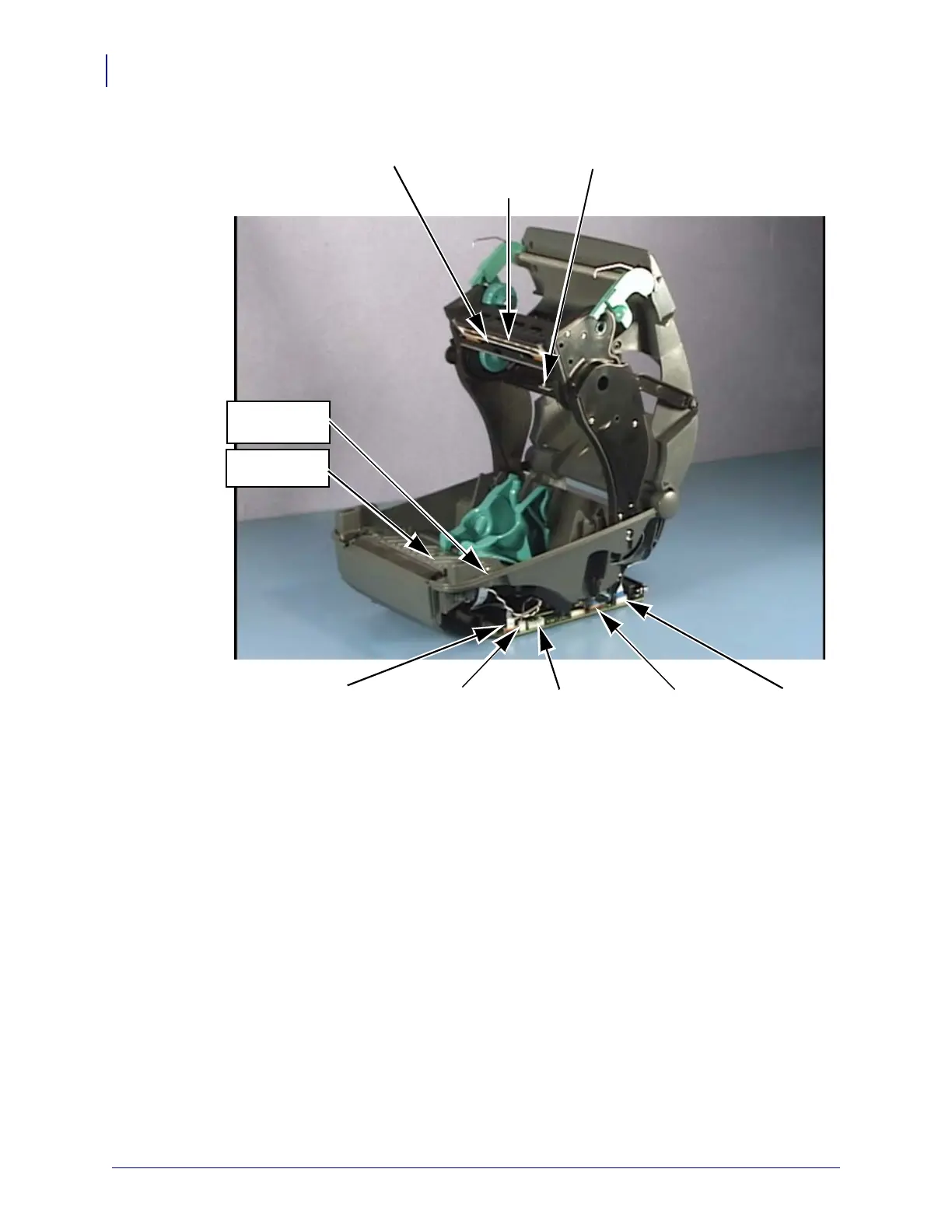

Cable Routing
Print Mechanism
74
980618-001 A Thermal Transfer G-Series
TM
Service Manual 8/27/08
Bottom Gap
Sensor
Upper Gap
Sensor
Feed Button
Transmissive
Upper Gap
Connector
Dispenser
Connector
Head Up
Sensor
Printhead
Ribbon
Sensor
Ribbon
Sensor
Connector
Head Up
Sensor Wire
Connector
Bottom Gap
Sensor Wire
Connector
