Getting Started
Checking Print Server Configuration Settings
70
P1043301-005
1
1/21/13
3.
From the Printer Home Page, click
Print Server Settings
.
The default User ID and password are required.
The Print Server Configuration Page opens.

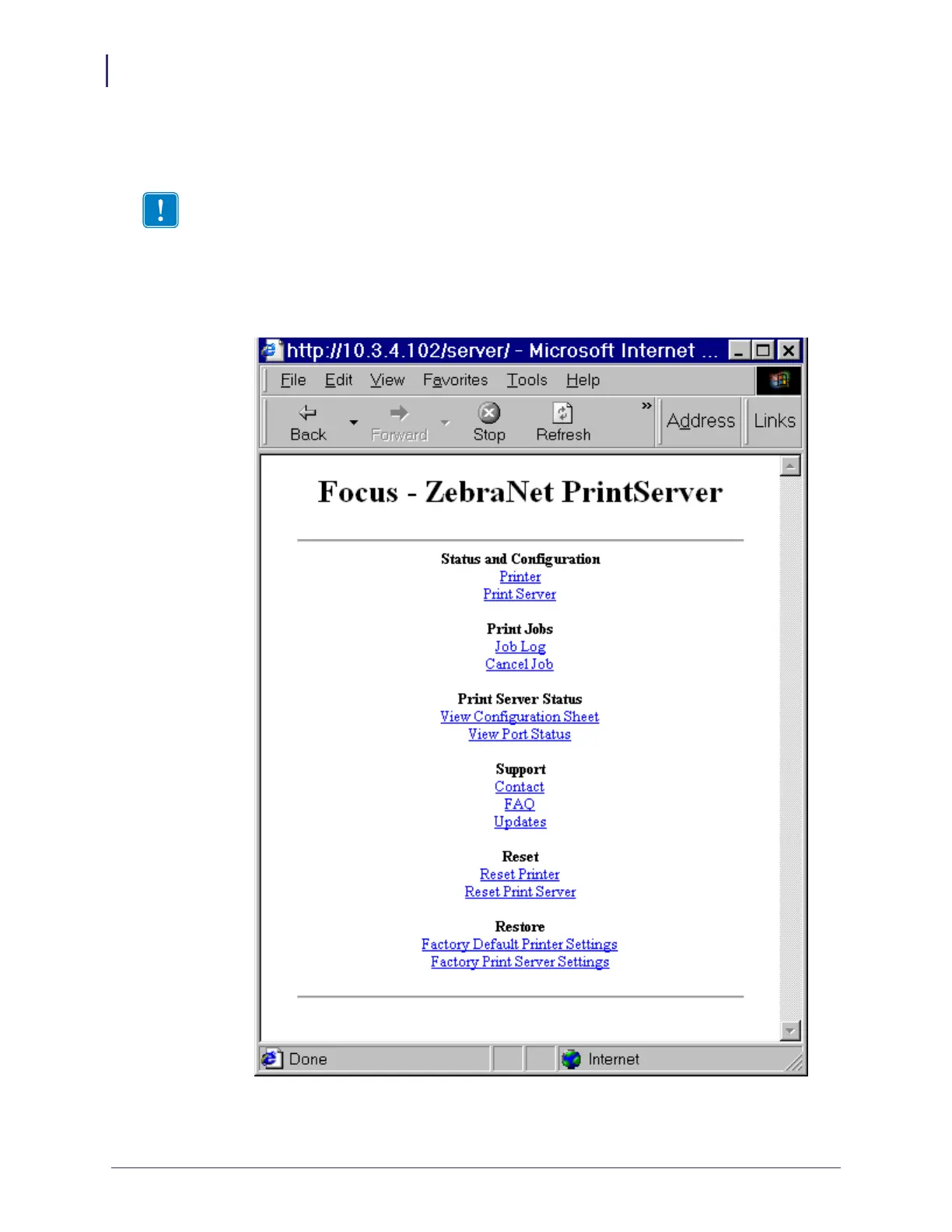

Figure 16 • Print Server Configuration Page
Important •
For specific information on the default User ID and/or default password, see
Default User ID and Passwor
d
on
page
43
.
67
69
Table of Contents
Contents
3
About This Document
7
Who Should Use This Document
8
How This Document Is Organized
9
Document Conventions
10
Introduction
13
Overview
14
Support
14
Browser Support
14
Supported Services
14
Address Administration Protocols
14
Supported Wireless Radio Cards
15
Supported Security Types
16
Printer Requirements
20
Hardware — Wired Print Servers
20
Hardware — Wireless Print Servers
21
Memory Requirements
22
Firmware — 10/100 Print Server
23
Firmware — Wireless
25
Compatibility
27
Specifications
27
External ZebraNet 10/100 Print Server Specifications
27
Internal ZebraNet 10/100 Print Server Specifications
28
Wireless Print Server Specifications
29
Installation
31
External ZebraNet 10/100 Print Server
32
Before You Begin
32
Illustration
33
Installation Instructions
34
Internal ZebraNet 10/100 Print Server
35
Wireless Print Servers
35
Install a Radio Card in a Wireless Print Server
35
Wireless Radio Card
35
Compact Flash Wireless Radio Card
37
Getting Started
39
Before You Begin
41
Default User ID and Password
41
Printing a Configuration Label — External ZebraNet 10/100 Print Server
42
Printing a Network Configuration Label — Internal ZebraNet 10/100 Print Server and Wireless Print Servers
44
Configuration of Wireless Securities
49
View Wireless Status through the Control Panel
50
LCD Link Status and Wireless Signal Indicators
50
HC100 Wireless Status Indicator Lights
52
ZD500R Wired and Wireless Status Indicator Icons
52
ZT210, ZT220, ZT230, ZT410, and ZT420 Wired and Wireless Status Indicator Lights
53
Determining the Active Print Server
55
Viewing IP Addresses and the Active Print Server
55
Active Device Selection
56
Assigning an IP Address on any Print Server
58
With Dynamic Host Configuration Protocol (DHCP)
58
Assigning an IP Address Without DHCP via ZebraNet Bridge
58
Assigning an IP address Without DHCP from the Control Panel
59
Assigning an IP Address Without DHCP via a Telnet Session
60
Setting and Monitoring Alerts on Any Print Server
62
ZebraLink Alerts
62
Using ZebraNet Bridge
64
Using WebView
64
Checking Print Server Configuration Settings
66
Using ZebraNet Bridge
66
Using WebView
67
Enabling Protocols
70
Using WebView
70
Defaulting ALL Print Servers
73
Using WebView
73
Using ZebraNet Bridge
74
Using a ZPL Command
74
Defaulting the ZebraNet 10/100 Print Server on the 105SL, S4M, PAX4, and External Devices
74
Defaulting the Wireless Print Server on the S4M
75
Defaulting the Print Servers on the ZM400 and ZM600 Printers
75
Defaulting the Print Servers on the ZP Series, LP/TLP 2824 Plus, and G-Series Printers
75
Defaulting the Print Servers on the HC100 Printers
76
Defaulting the Print Servers on the 105SL, PAX4, Xi4, ZE500, and 105SLPlus Printers
76
Defaulting the Print Servers on the ZD500R, ZT210, ZT220, ZT230, ZT410, and ZT420 Printers
77
Defaulting the Print Servers on the ZD500R, ZT230, ZT410, and ZT420 Printers via the Control Panel
77
Printing Queues
79
Berkeley Software Distribution (BSD)-Style Print Queue
80
Configuring the Print Queue
80
System V Queue Installation
81
Configuring Operating System V Queue for ZebraNet Printing
81
Prerequisites
81
UNIX Configuration
81
Using Printing Protocols
83
IPP
84
FTP
85
ZebraLink WebView
87
WebView
88
Home Page
88
View Printer Configuration
90
View and Modify Printer Settings
91
Network Communications Screens
98
Directory Listing
103
Printer Controls
108
Print Server Web Pages
109
Print Server Features
110
Status and Configuration
110
Print Server Status
118
Reset
120
Restore
121
Control Panel
123
Control Panel Menu Options
124
Wired Network Parameters on the LCD
124
Wireless Network Parameters on the LCD
127
Hardware Troubleshooting
131
Troubleshooting the External 10/100 Print Server
132
Resetting to Factory Defaults
132
External ZebraNet 10/100 Print Server Network Status and Status Indicators
132
Troubleshooting the External ZebraNet 10/100 Print Server
133
Troubleshooting the Internal ZebraNet 10/100 Print Server
135
Resetting the Internal ZebraNet 10/100 Print Server to Factory Defaults
135
Internal ZebraNet 10/100 Print Server Network Status and Activity Indicators
135
Troubleshooting the Wireless Print Server
137
ZebraNet n Print Server Will Not Operate on the 5Ghz Band
137
Resetting the Wireless Print Server to Factory Defaults
137
ZebraNet Bridge Discovery or Configuration Problems
138
Unable to Print
138
Ping the Printer
138
Telnet
139
Unable to Configure Device
140
HP JetAdmin or HP Web JetAdmin
140
Wireless Error Messages
140
General Wireless Issues
141
Encryption and Authentication Issues
143
IP Issues
144
Frequently Asked Questions
145
FAQs
145
Glossary
149
Index
155
