Print Server Web Pages
Print Server Features
120
P1043301-005
1
1/21/13
Print Server Status
From the Print Server page in the Print Server Status section, you can access the print server
configuration page and port status.
T
o open the print server configuration page, complete this step:
1.
From the PrintServer page, click
View Configuration Page
.
The Configuration Page opens.

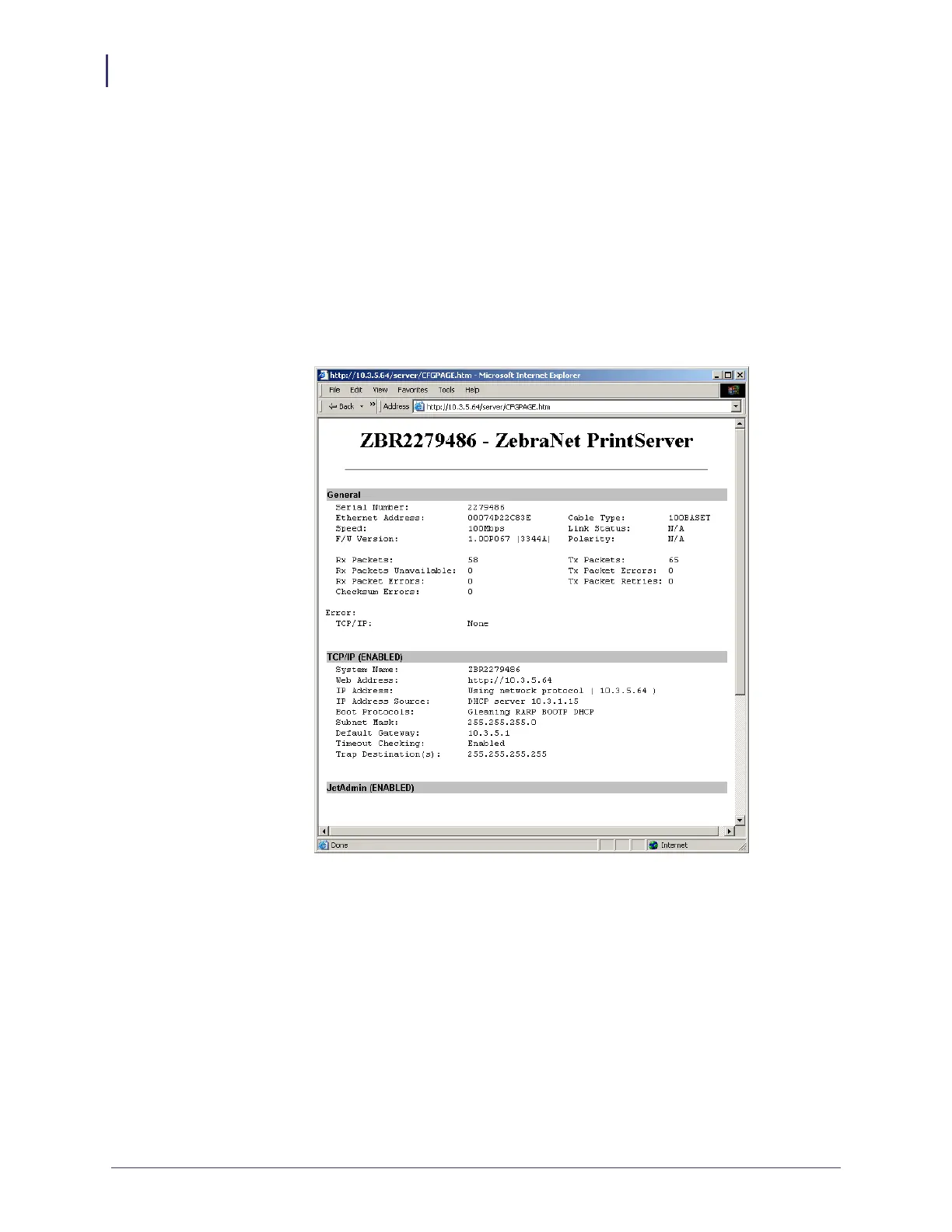

Figure 31 • Configuration Sheet
117
119
