1-Slot USB/Ethernet Cradle Setup
The 1-Slot USB/Ethernet Cradle provides device charging and communication.

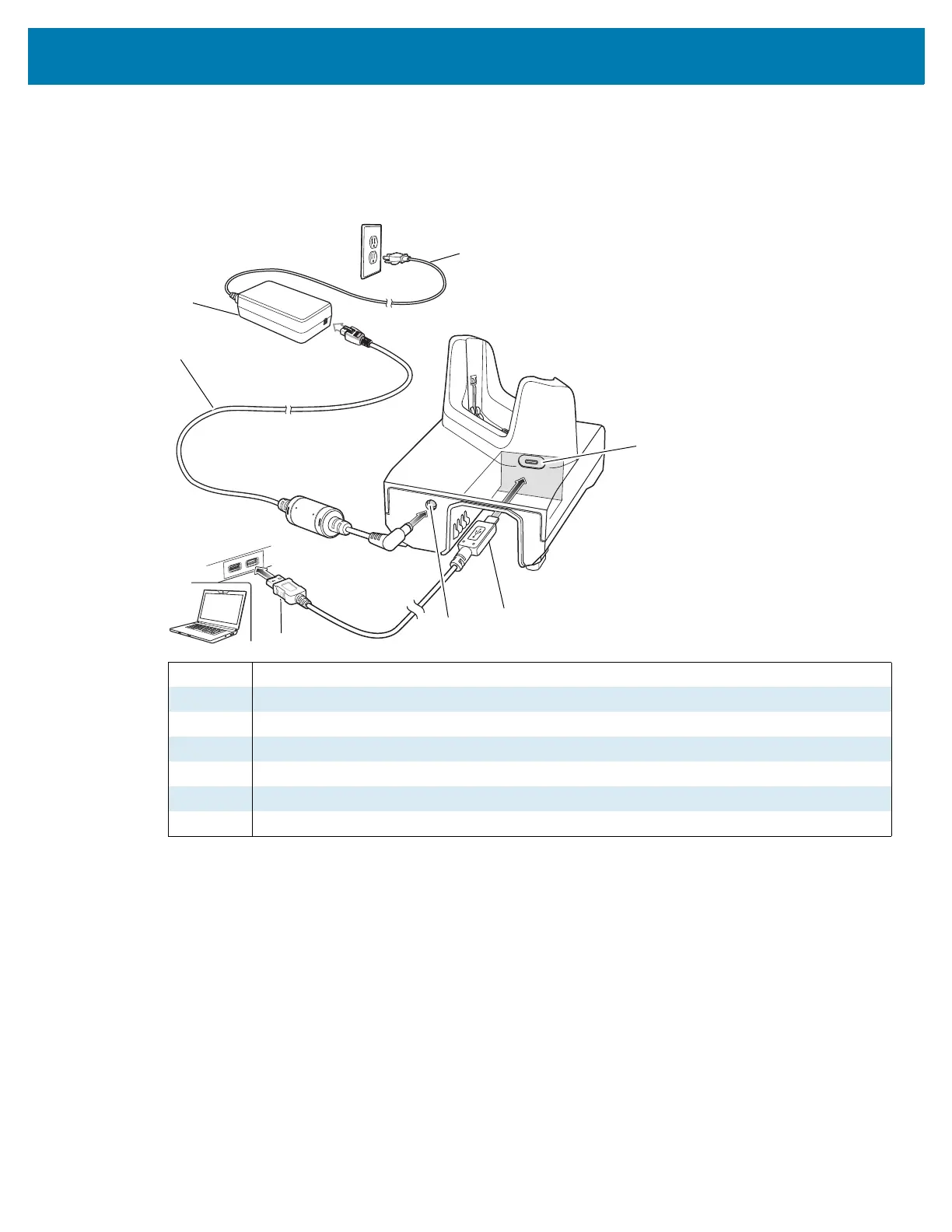

Figure 14 1–Slot USB/Ethernet Cradle Setup
1 DC Line Cord
2 Power Supply
3 AC Line Cord
4 USB micro-AB Port
5 USB micro-B Connector
6 DC Power Port
7 USB-A Connector
