5-Slot Cradle Rack Installation
Use the Rack/Wall Mount Bracket to mount a 5-slot cradle on a rack. When installing on a rack, first
assemble the bracket and cradles/chargers and then install the assembly on the rack.
NOTE: Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply
interferes with top tray.
1. Place the power supply in bottom tray.
2. Connect AC line cord to power supply.
3. Connect DC line cord to power supply.
4. Secure power supply and cables to bottom tray with tie wraps.
5. Route cables through cable slots.

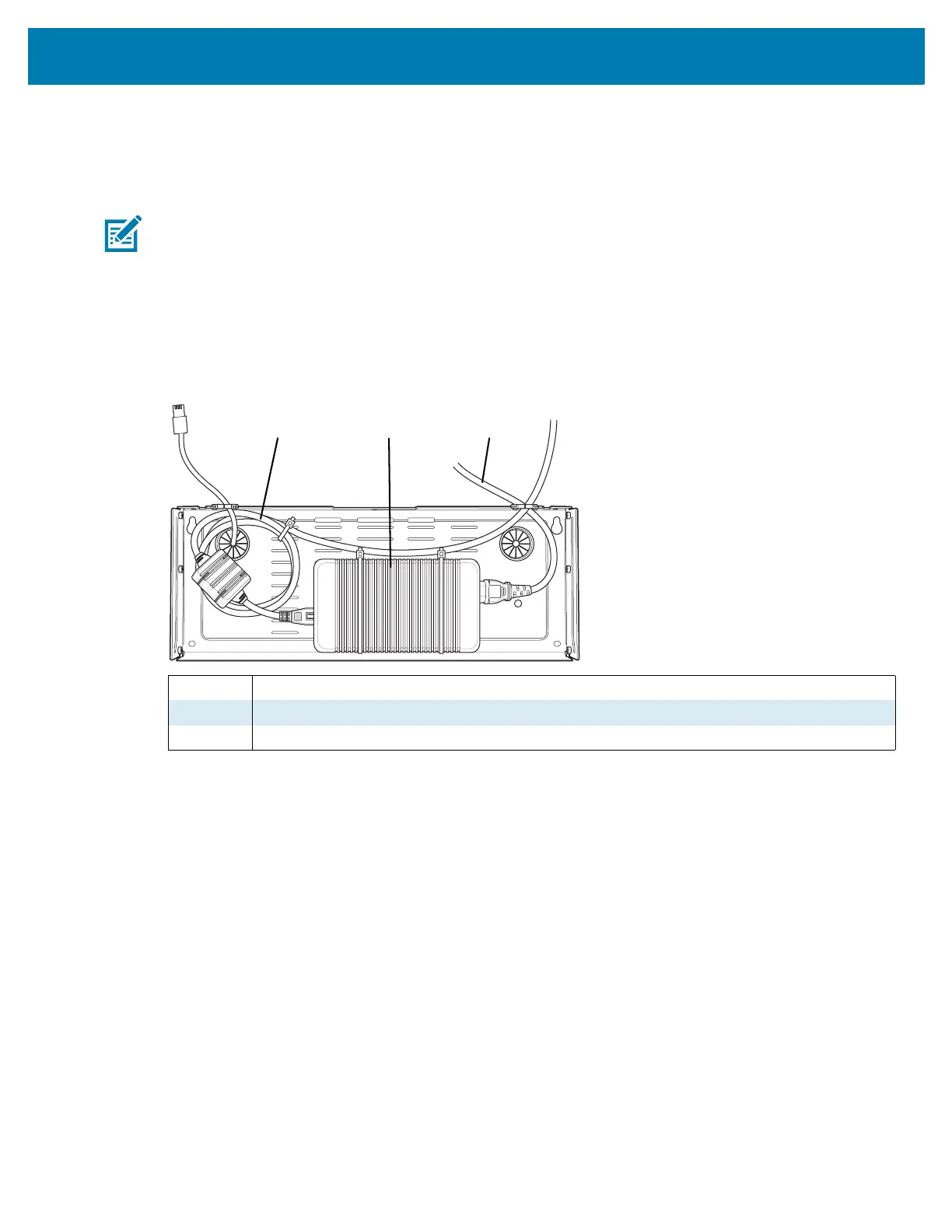

1 DC line Cord
2 Power Supply
3 AC line Cord
