fAccessories
163
Rack Mount Installation
NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.

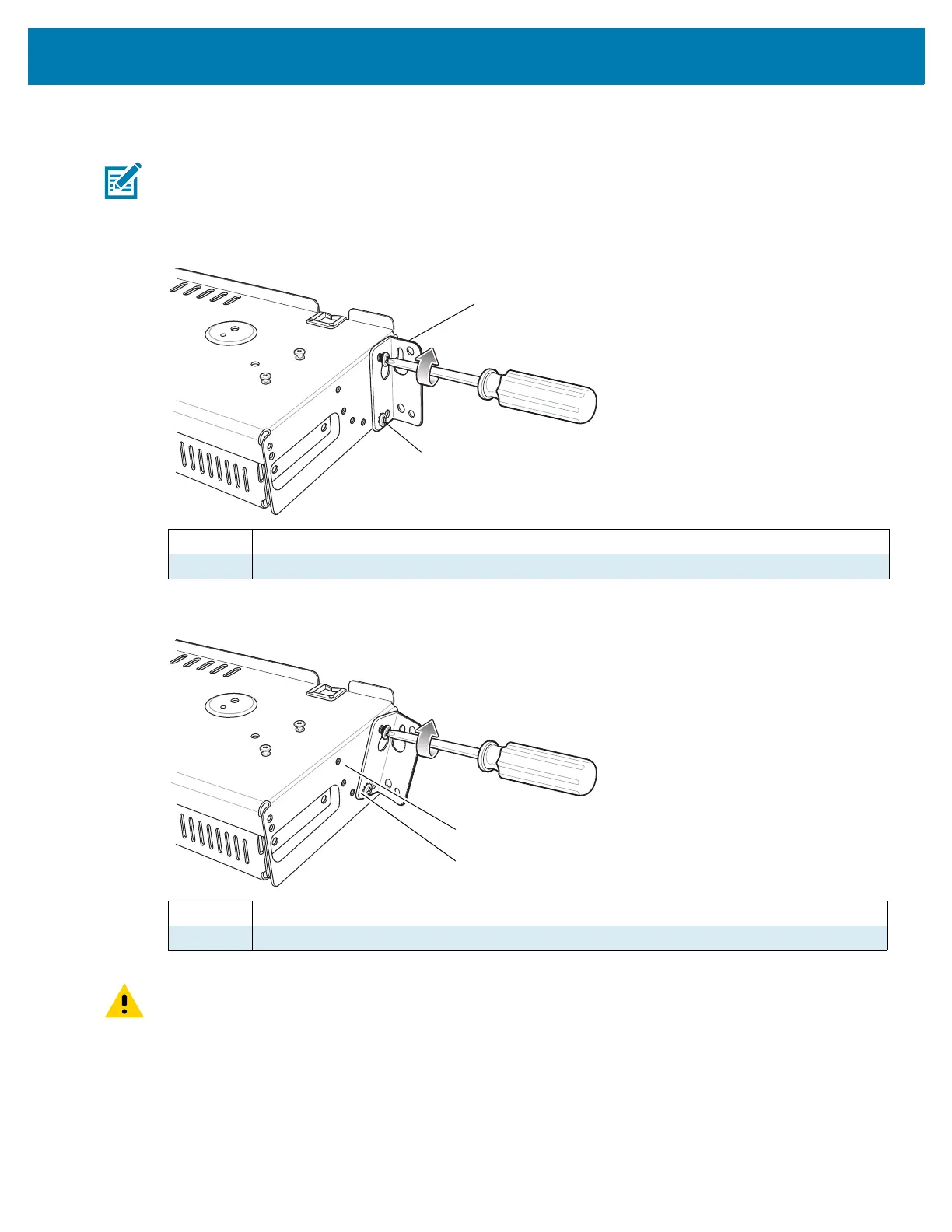

1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side).
• For 5-Slot cradles, position the flange for horizontal installation.
• For 4-Slot Battery Chargers, position the flange for 25° installation.
CAUTION: Install mounting bracket with 5-Slot cradle at a maximum height of four feet from ground.
Install mounting bracket with 4-Slot Battery Charger at a maximum height of three feet from ground.
1Flange
2 Fifth Screw Hole
1 Top Screw Hole
2 Flange
