5-Slot Ethernet Cradle Setup
Daisy-chaining Ethernet Cradles
Daisy-chain up to ten 5-Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either
a straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection
to the first cradle is 10 Mbps as throughput issues will almost certainly result.
To daisy-chain 5-Slot Ethernet cradles:
1. Connect power to each 5-Slot Ethernet cradle.
2. Connect an Ethernet cable to one of the ports on the switch and the other end to the to Primary Port of
the first cradle.
3. Connect an Ethernet cable to the Secondary port of the first cradle.

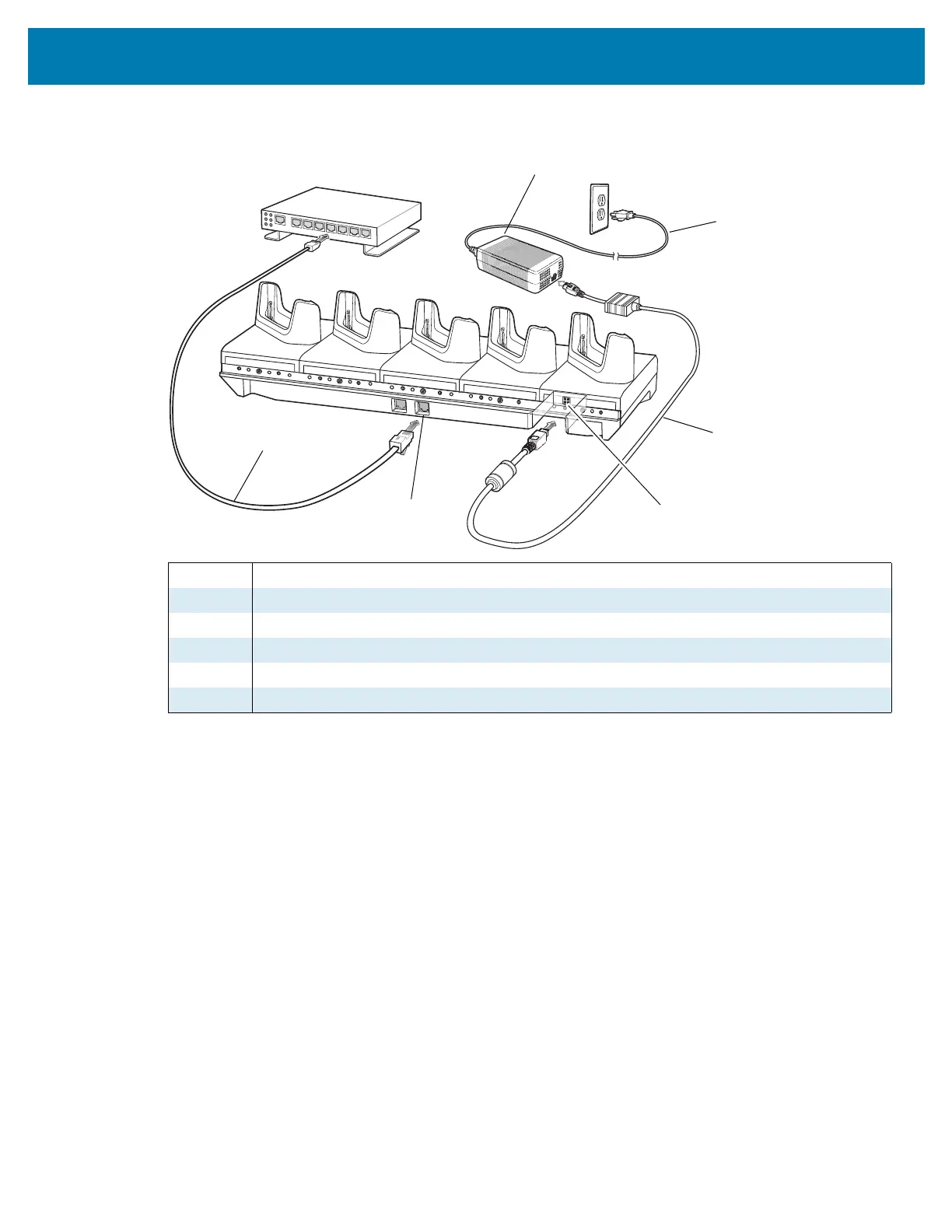

1 Power Supply
2 AC Line Cord
3 DC Line Cord
4 DC Power Port
5 RJ-45 Port
6 Ethernet Cable
