OPERATION
Axio Observer TFT display touchscreen on the Axio Observer 7, 7 materials ZEISS
12/2016 431004-7244-001 125
5.11.5.7 F/A (luminous-field
diaphragm/aperture diaphragm)
The F/A tab is used to configure the motorized iris
diaphragm slider for luminous-field diaphragm
(field stop) and the aperture stop.
The aperture is controlled using the arrow buttons.
The current value is shown below the bar display.
The Prev. and Max. buttons reset the stops to the
previous and maximum values respectively.
If a motorized FL attenuator is fitted, it cannot be
set via the TFT display. The lower aperture
diaphragm display is then not available.
5.11.5.8 Magnification
For objective and / or Optovar positions which have
already been configured, the magnification and,
where applicable, the following additional
information is displayed:
If an equipped Optovar turret is fitted, the available
magnifications are displayed.
• Touch the button for the Optovar required to
move it into the optical path.
• To move an objective / Optovar into the optical
path, press the button for that objective.
This tab will not be displayed if there is no motorized Optovar turret installed.
If the Light Manager is active, the brightness will be r
eadjusted automatically when the
objective is changed.
If a contrast technique was set in the Contrast Manager before changing the objective, this will
automatically adapt the process to the new objective (i.e. the reflector and condenser turret
positions may change -
contrast adjustment). If the contrast technique is not available for the
objective, the system will switch to brightfield.

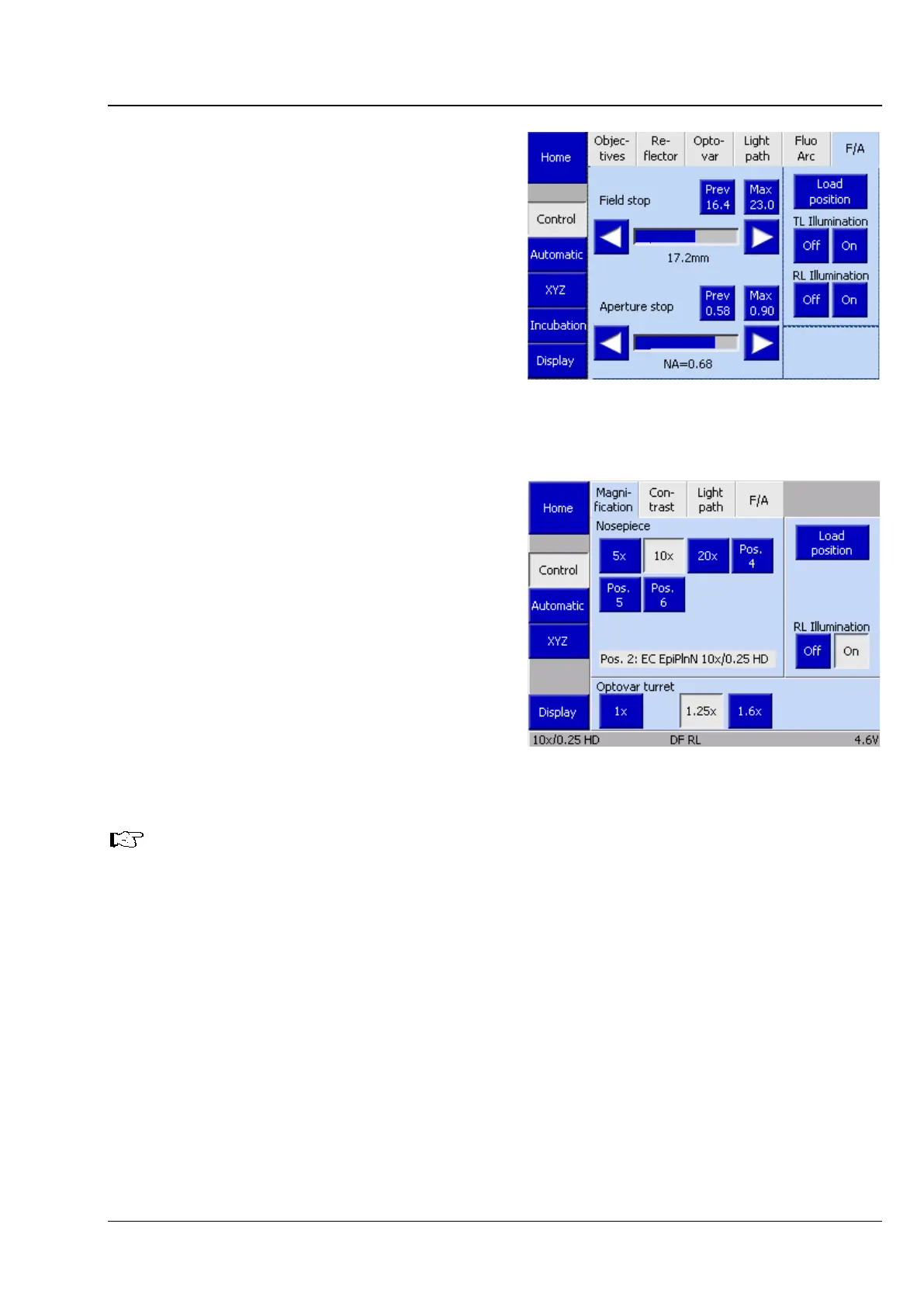

Fig. 108 Microscope -> Control -> F/A page
Fig. 109 Microscope -> Control ->
Magnification page
