6.2.3 Changing fuses on the
external power supply unit of
Axio Observer 7, 7 materials
Pull out the power plug before
changing fuses.
The Axio Observer 7, 7 materials is supplied with
voltage from the external power supply unit
VP232-2. The fuse compartment of the VP232-2
power supply unit is located at the rear of the unit
and contains two type T 4.0 A/H / 250 V fuses.
• Pull out the power plug.
• Pull out the fuse holder (Fig. 165/2) frontward.
• Remove the fuses from the fuse holder and
insert new fuses.
• Reinsert the fuse holder into the fuse
compartment (Fig. 165/1) until it clicks into
place.
• Plug in the power plug.

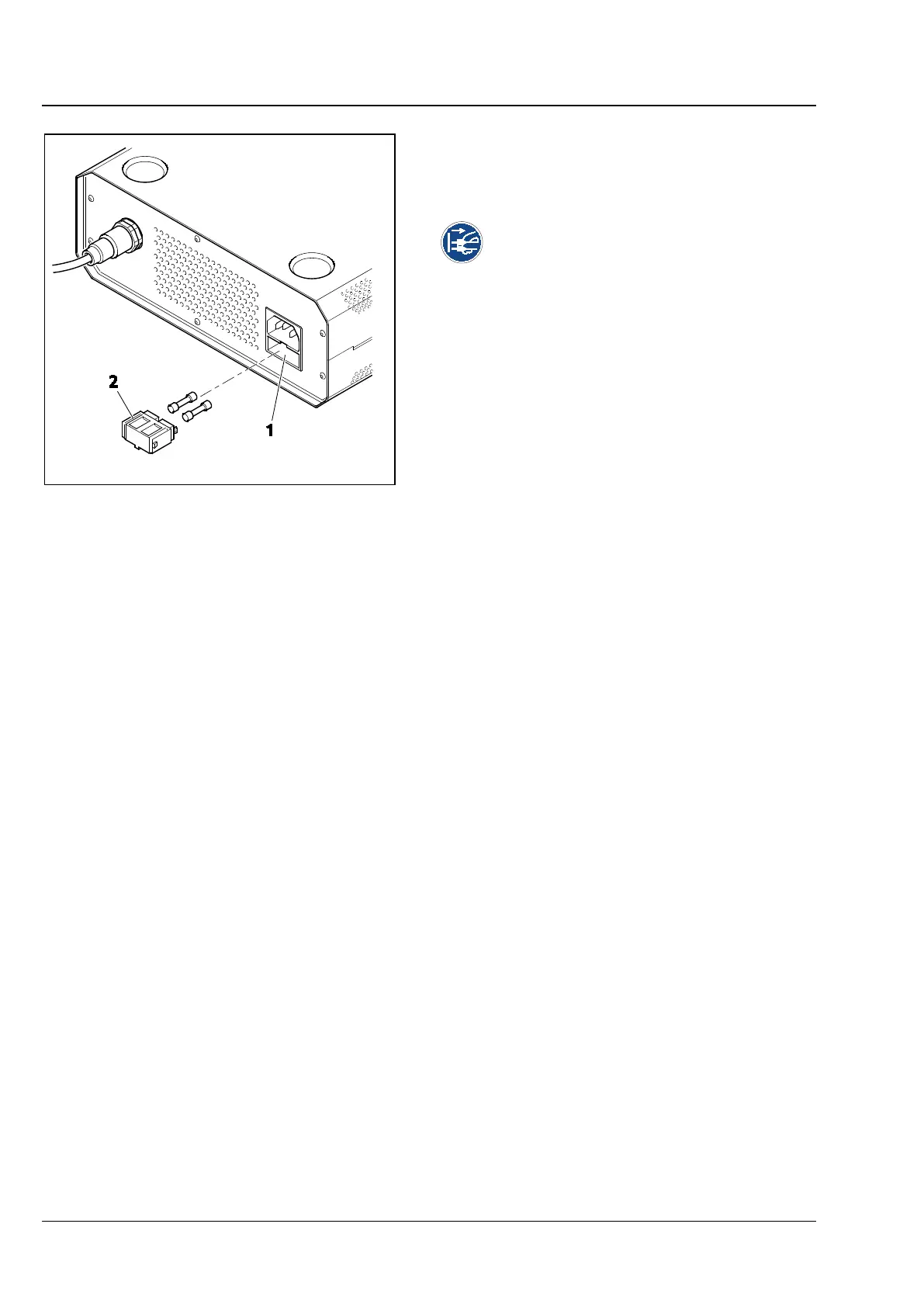

Fig. 165 Changing fuses on the
external power supply unit for
Axio Observer 7, 7 materials
