INSTALLATION INSTRUCTIONS AND FIRST-TIME SET-UP
ZEISS Connectors on the CAN distributor box and Axio Observer 7 Axio Observer
62 431004-7244-001 12/2016
4.17 Connectors on the CAN distributor box and Axio Observer 7

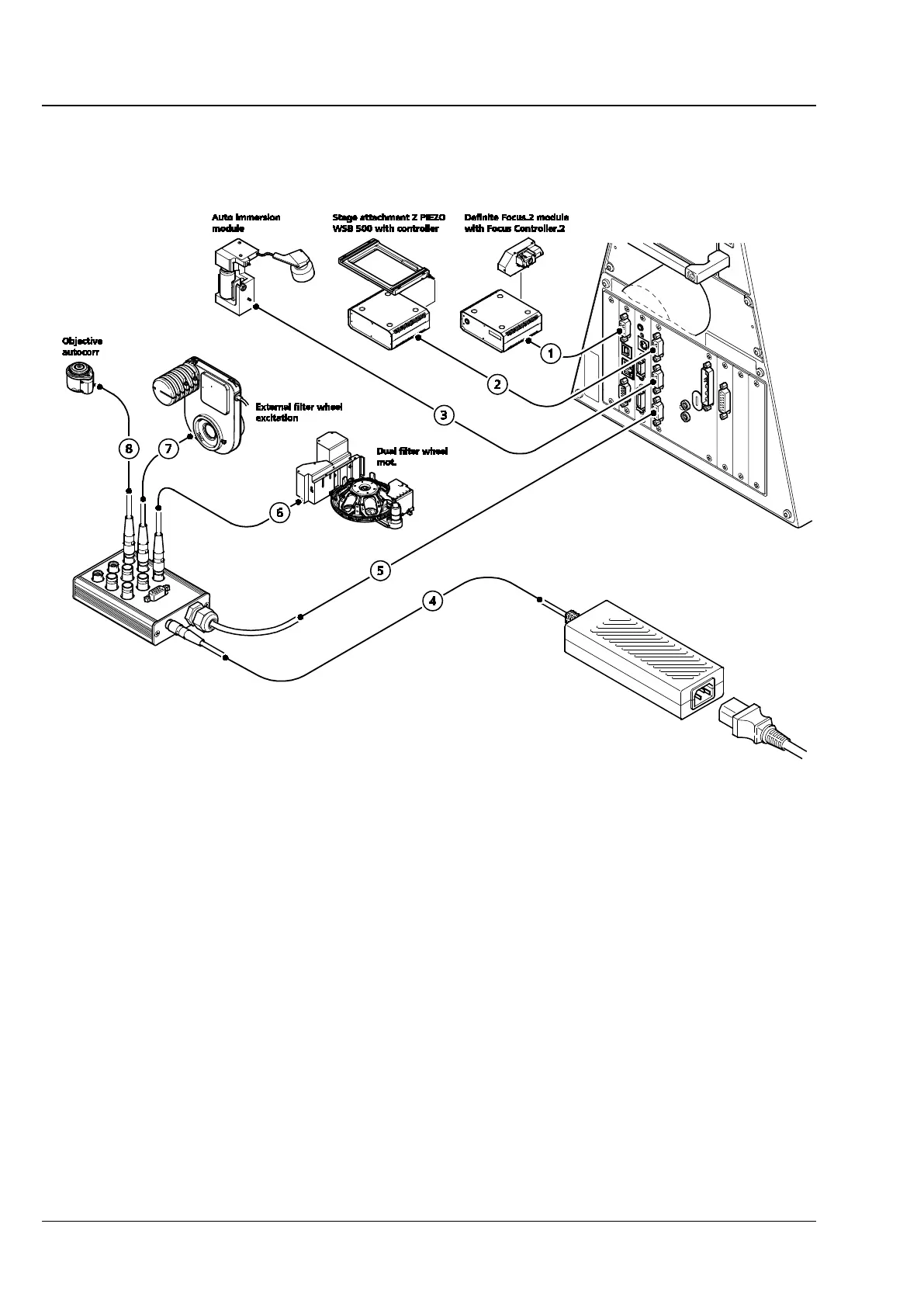

Fig. 46 Connectors on the CAN distributor box and Axio Observer 7 (rear)
Key to Fig. 46:
1 Connector of Definite Focus.2 module with Focus Controller.2 to stand
2 Connector of stage attachment Z-PIEZO WSB 500 with controller to stand
3 Connector of auto immersion module to stand
4 Connector of desktop power supply unit to CAN distributor box
5 Connector of CAN distributor box to stand
6 Connector of dual filter wheel mot. for beam splitting and emission to CAN distributor box
7 Connector of external filter wheel excitation 8-pos. mot. to CAN distributor box
8 Connector of objective autocorr to CAN distributor box
