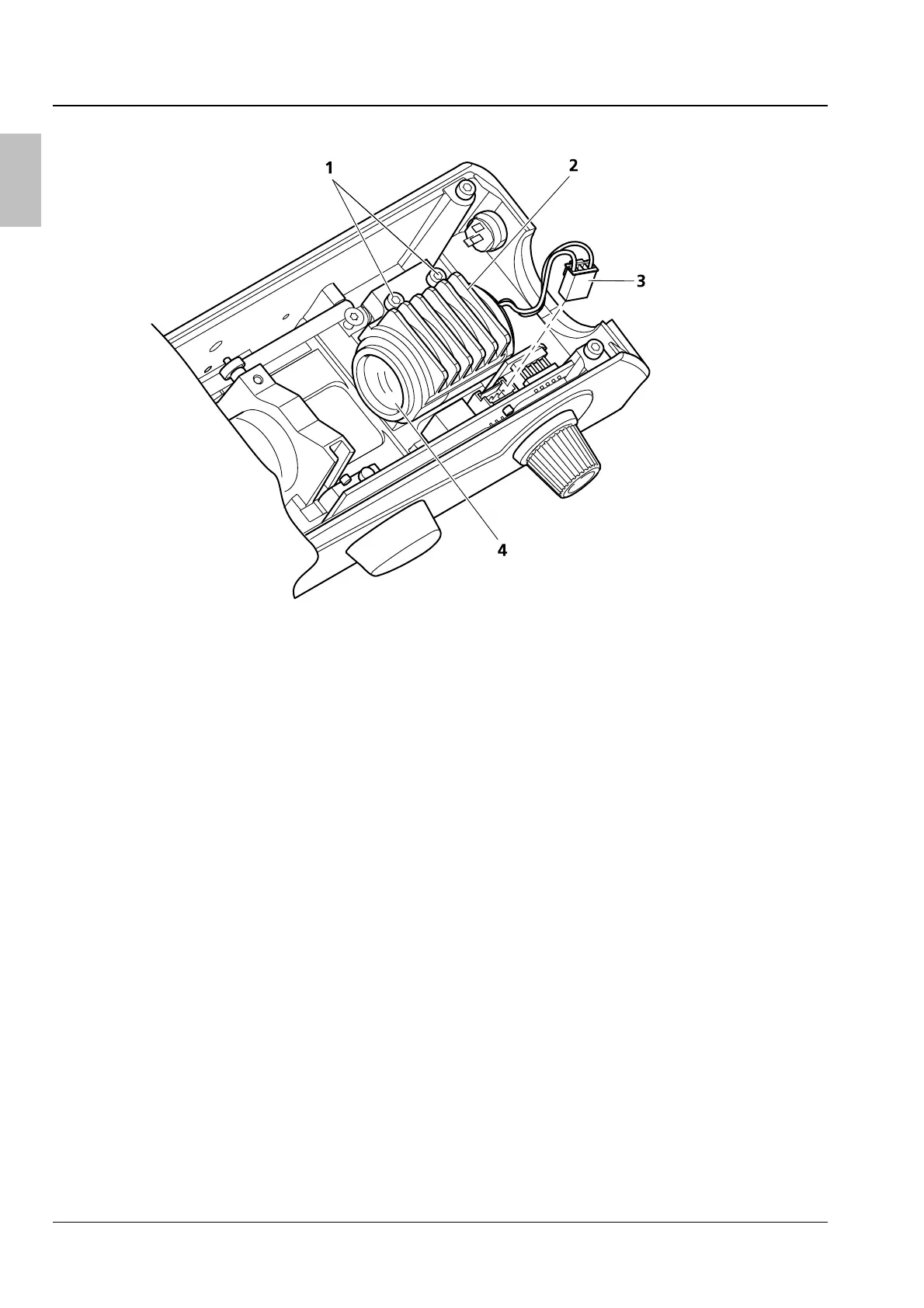

Fig. 34 Reflected-light LED module
• Attach the holder (
Fig. 34/2) again, tighten the screws (Fig. 34/1) only slightly, still allowing
displacement of the LED module within the guide.
• Shift the LED module frontward (operator side) against the stop and fix the screws (
Fig. 33/1)
handtight. This step is important to re-establish the optimally adjusted optical configuration.
• Plug the connector (
Fig. 34/3) again into the circuit board.
• Put on the lid and tighten the three fastening screws (
Fig. 33/1) after shifting the lid in direction of
arrow to the front right corner (
Fig. 33) to realign the correct optical axis.
• Attach the tube again (see also section
3.5.1).
