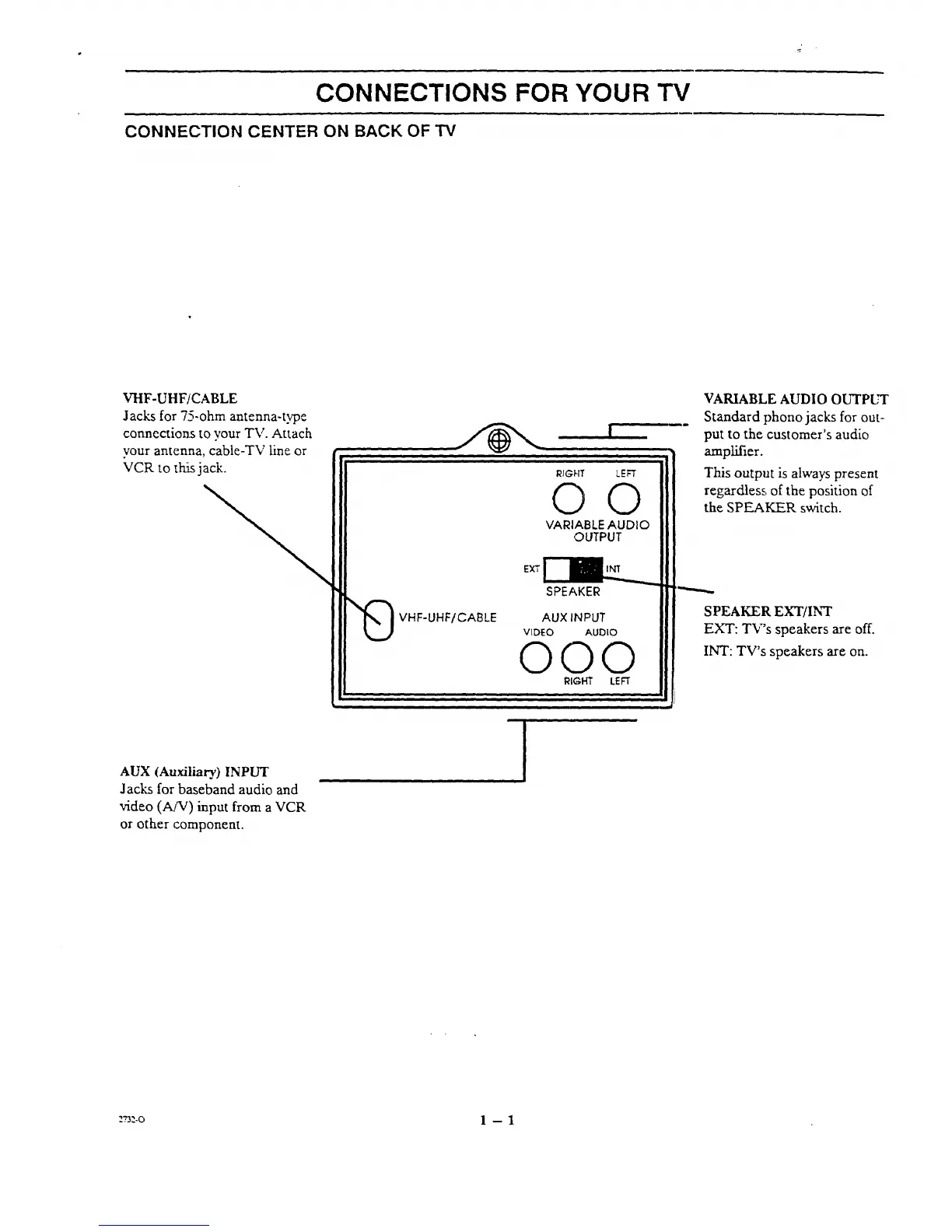

CONNECTIONS FOR YOUR TV
CONNECTION CENTER ON BACK OF "IV
VHF-UHF/CABLE
Jacks for 75-ohm antenna-type
connections to your TV. Attach
your antenna, cable-TV line or
VCR to th.is jack.
RIGHT LEFT
O0
VARIABLE AUDIO
OUTPUT
EXT __._.
VHF-UHF/CABLE AUX INPUT
VIDEO AUDIO
000
RIGHT LEFT
VARIABLE AUDIO OUTPUT
Standard phono jacks for out-
put to the customer's audio
amplifier.
This output is always present
regardless, of the position of
the SPEAKER switch.
SPEAKER EXT/INT
EXT: TV's speakers are off.
INT: TV's speakers are on.
AUX (Auxiliary) INPUT
Jacks for baseband audio and
video (A/V) input from a VCR
or other component.
:_:'-o I -- I
