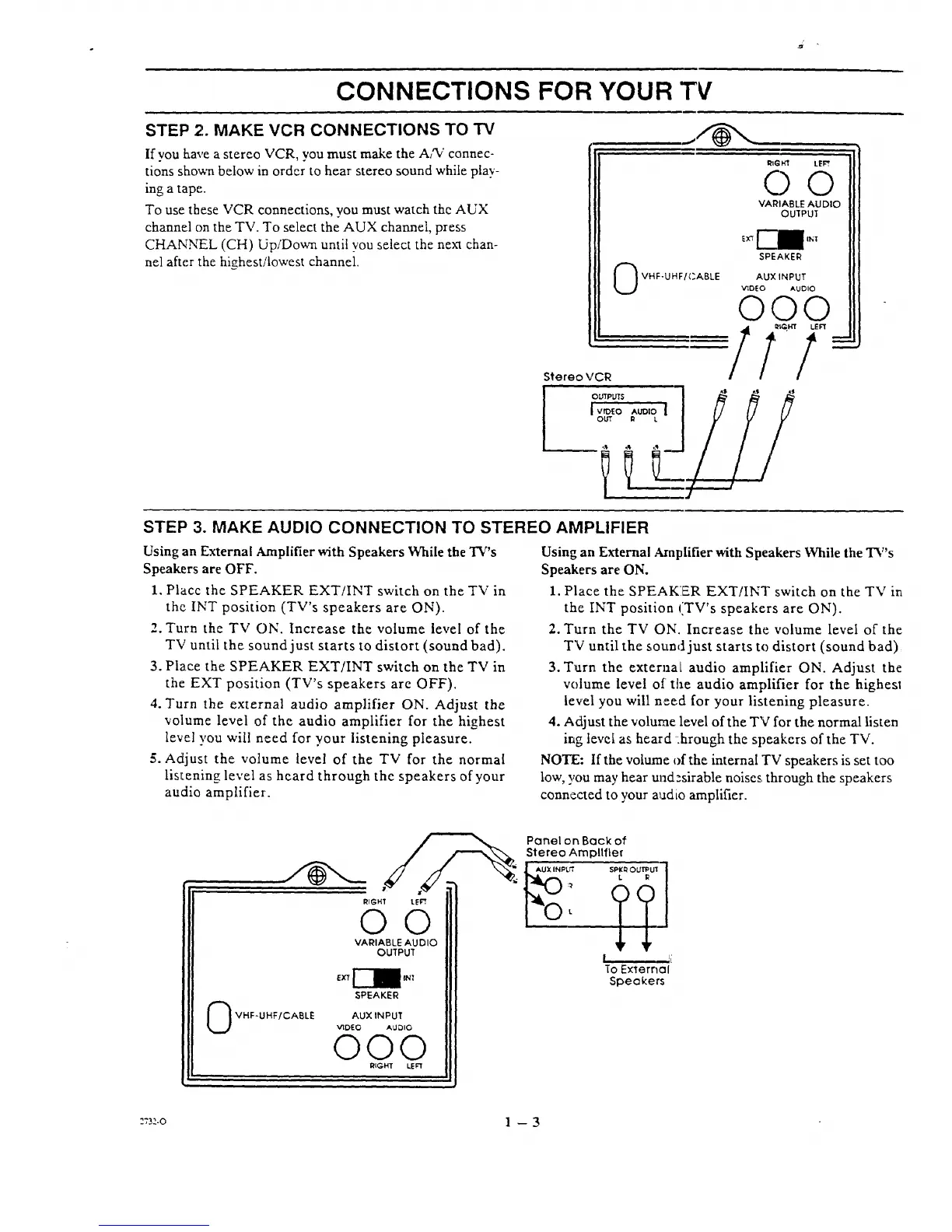

CONNECTIONS FOR YOUR TV
STEP 2. MAKE VCR CONNECTIONS TO "IV
If you have a stereo VCR, you must make the A/V connec-
tions sho_ below in ordcr to hear stereo sound while play-
ing a tape.
To use these VCR connections, you must watch thc AUX
channel on the TV. To select the AUX channel, press
CHANNEL (CH) Up/Down until you select the next chan-
nel after the highest/lowest channel.
0 VHF-UHF/(_.ABLE
OUTPUT
SPEAKE_
AUXINPUT
_DEO AUDIO
ii,,; i
!
Stereo VCR
,, .=l//
STEP 3. MAKE AUDIO CONNECTION TO STEREO AMPLIFIER
Using an External Amplifier with Speakers While the TV's
Speakers are OFF.
1. Placc the SPEAKER EXT/INT switch on the TV in
the INT position (TV's speakers are ON).
2. Turn the TV ON. Increase the volume level of the
TV until the sound just starts to distort (sound bad).
3. Place the SPEAKER EXT/INT switch on the TV in
the EXT position (TV's speakers are OFF).
4. Turn the external audio amplifier ON. Adjust the
volume level of the audio amplifier for the highest
level you wil! need for your listening pleasure.
g. Adjust the volume level of the TV for the normal
listening level as heard through the speakers of your
audio amplifier.
Using an External Amplifier with Speakers While the TV's
Speakers are ON.
1. Place the SPEAK2R EXT/INT switch on the T\ r in
the INT position (TV's speakers are ON).
2. Turn the TV ON. Increase the volume level of the
T'V until the sound just starts to distort (sound bad)
3. Turn the externa[ audio amplifier ON. Adjust the
volume level of the audio amplifier for the highesl
level you will need for your listening pleasure.
4. Adjust the volume level of the T'V for the normal listen
ing level as heard :hrough the speakers of the TV.
NOTE: If the volume of the internal TV speakers is set too
low, you may hear und:sirable noises; through the speakers
connected to your audio amplifier.
/___ Panelon Backof
Stereo Ampllfler
RiGH1 LEfT
0 0 I-O
VAI_IABLE AUDIO
OUTPUT
VHF-UHF/CABLE
AUX INPUT
VIDEO AUDIO
©©©
RtGHT LE F"T
SPLK_ OUI!_Ul
I I,'
ToExl"ernal
Speokers
