3
Secure a bolt in the vice, attain a distance of at
least 18 mm and approx. 40 cm from the vice, then
thread the clutch cover through the hole where the
bar bolt runs. Lock with the bar nut.
WARNING!
Exercise care to ensure the spring
does not y out and causes perso-
nal injury. Wear protective goggles.
6.1 Dismantling the chain brake
2
Release the brake by pushing the kickback guard
forwards.
4
Loosen the screws and hold the cover in place with
one hand. Insert a screwdriver as illustrated over
the spring to prevent it from ying o when you lift
the cover.
Safety equipment
6 Safety equipment
1
Release the brake by moving the kickback guard
backwards.
Loosen the bar nut and remove the clutch cover, chain
and bar.

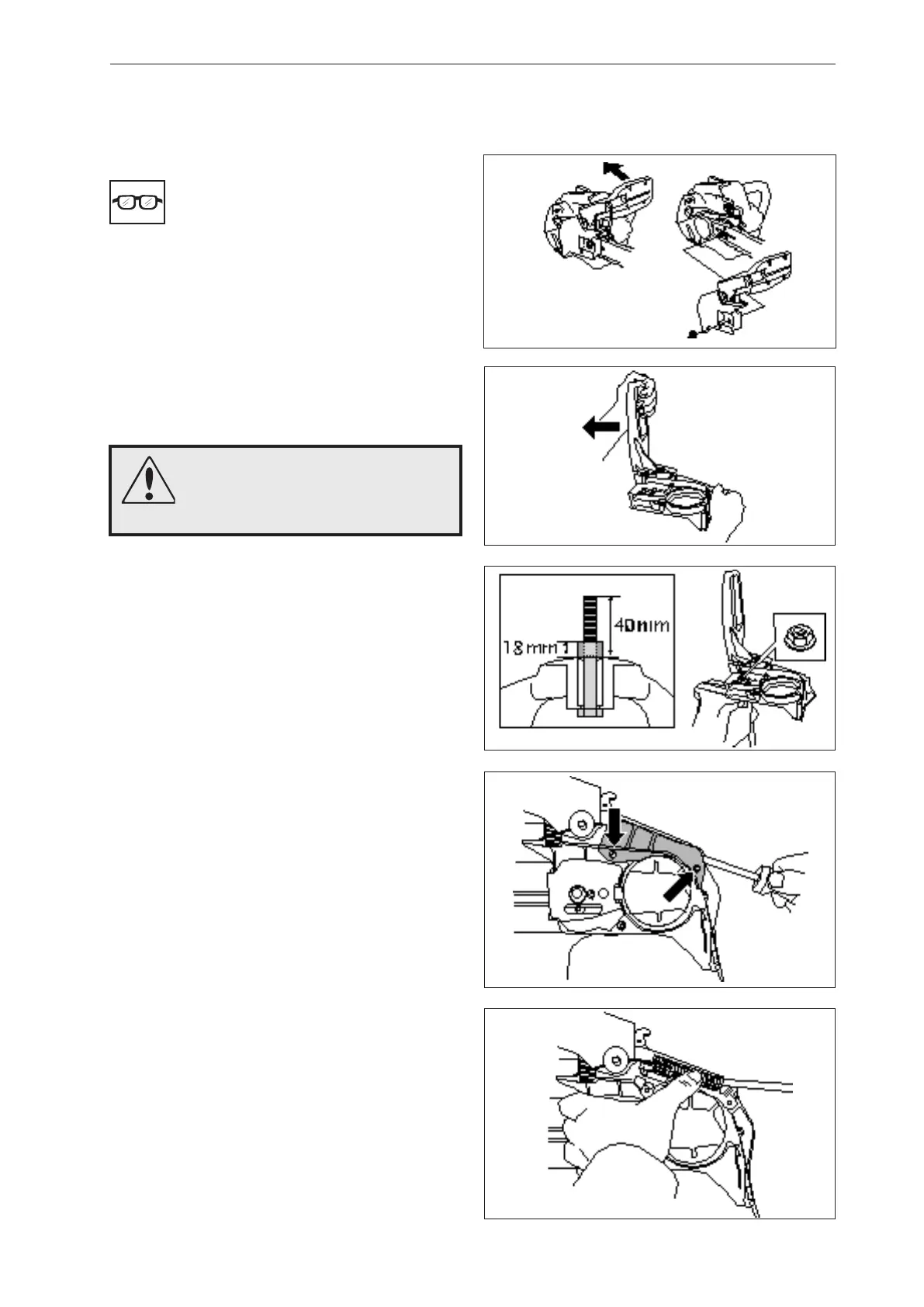

Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
5
Carefully bend upwards until the spring is released
and slides over the screwdriver.
