English – 27
Repair instructions
WARNING!
If the spring tension is activated
on the starter pulley, the spring
can y out and cause personal
injury. Use protective goggles.

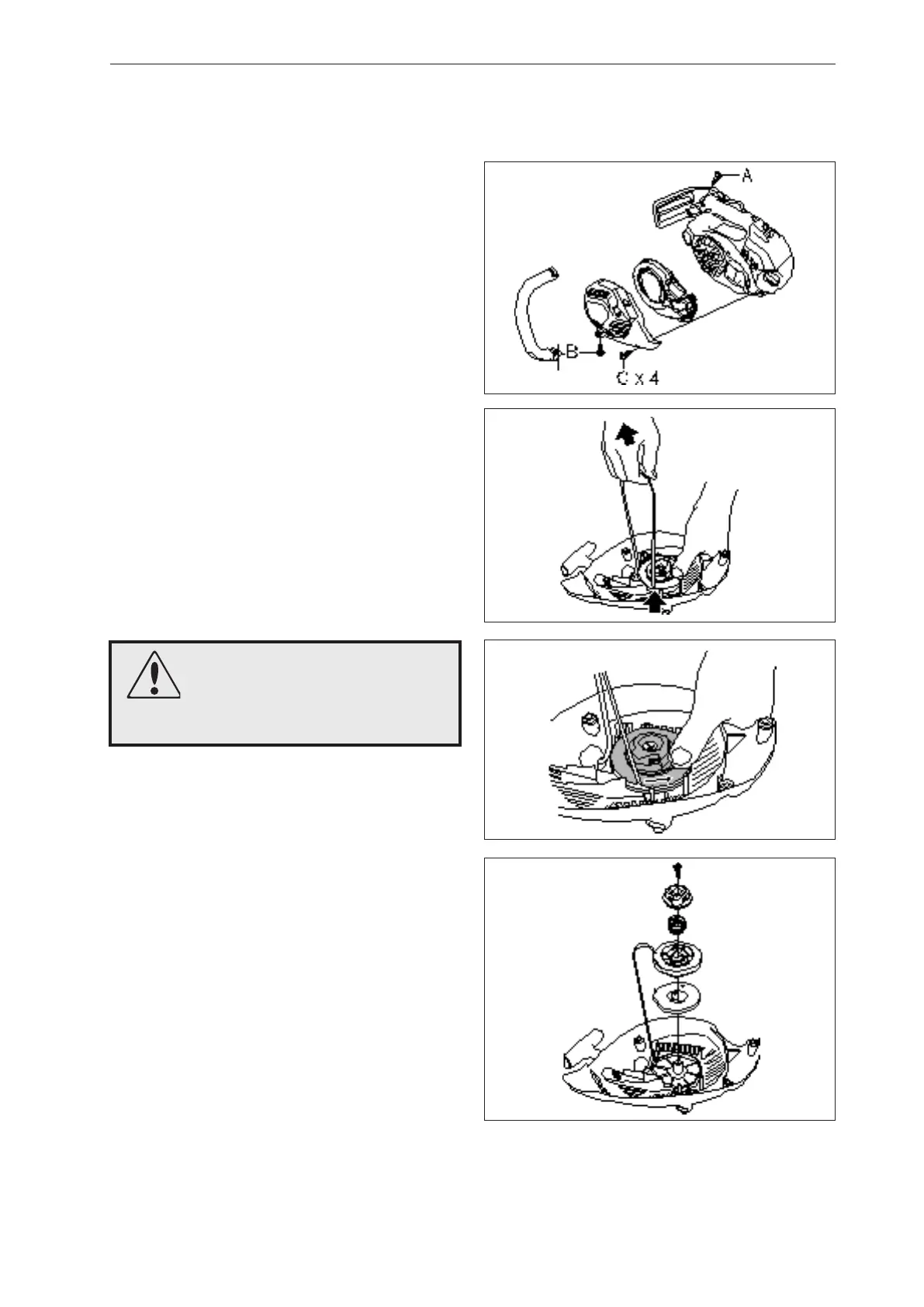

7.1 Dismantling the starter
1
Loosen the starter with the screws A, B and C (four
screws).
7 Repair instructions
Fig 1
Fig 2
Fig 3
Fig 4
2
Pull the cord out about 30 cm and lift it into the
notch on the starter pulley’s outer edge. Release
the tension in the return spring by allowing the star-
ter pulley to rotate slowly backwards, see gures 2
and 3.
3
Undo the screw in the centre of the pulley and
remove the pulley and the spring cassette.
Cleaning and checking
Clean the parts and check:
• Starter cord.
• That the starter pawls on the ywheel are intact,
i.e. that they spring back to the centre and move
easily.
• Lubricate the return spring with a light oil.
