32 – English
Repair instructions
5
Break apart the clutch as shown in gure 21.
NOTE!
Be careful with the clutch springs, ope-
ning them too much can result in material
damage.
Cleaning and checking
• Clean and check all parts carefully. Parts must
be replaced if cracked or showing signs of
other defects. Always use original spare parts.
3
Loosen the clutch using a suitable socket spanner
or combination spanner. Turn the clutch clockwise
to loosen it.

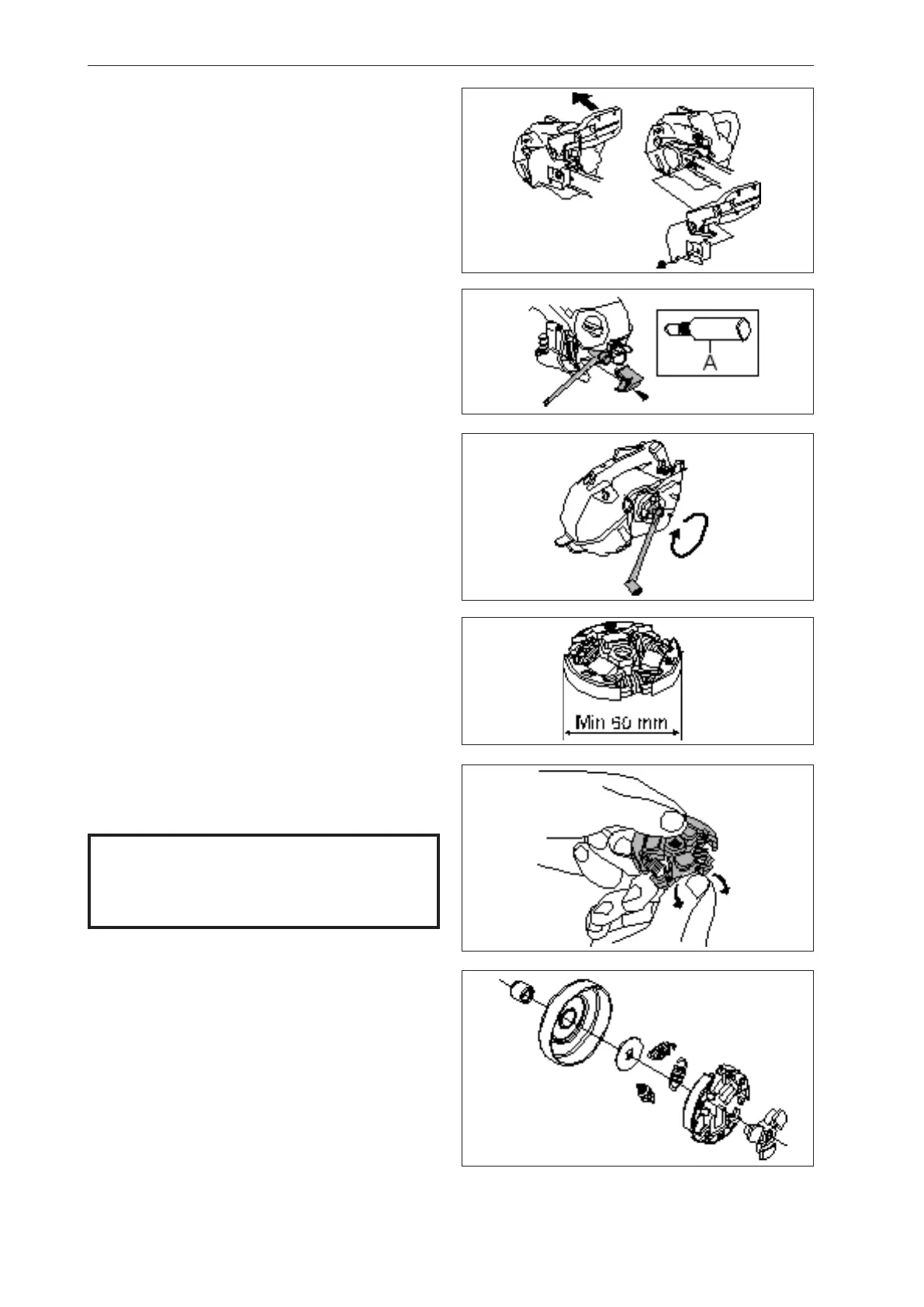

7.9 Dismantling the centrifugal clutch
1
Release the brake by moving the kickback guard
backwards.
Loosen the bar nut and remove the clutch cover, chain
and bar.
Fig 17
Fig 18
Fig 19
Fig 21
Fig 20
2
Unscrew the spark plug and put in piston stop A.
Fig 22
4
Check the thickness of the clutch shoes by mea-
suring them with slide callipers across the whole
clutch hub. If the thickness is below 58-58.5 mm,
the entire clutch must be replaced, see gure 20.
